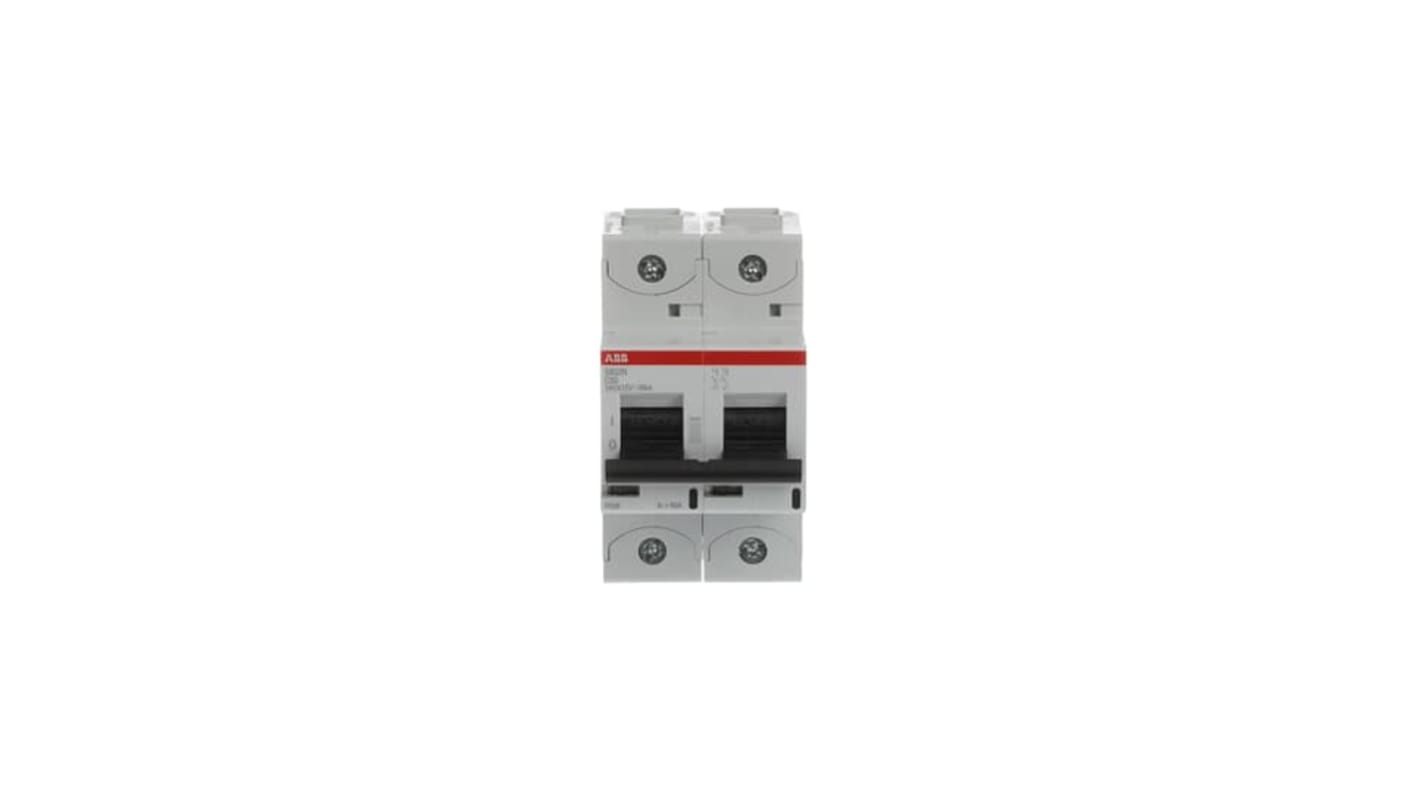

ABB S802N Miniature Circuit Breaker, 2-Pole, 50 A, Type C, 690 V ac AC, 36 kA Breaking Capacity
- RS Stock No.:
- 140-705
- Mfr. Part No.:
- 2CCS892001R0504
- Brand:
- ABB
Subtotal (1 unit)*
£154.83
(exc. VAT)
£185.80
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £154.83 |
*price indicative
- RS Stock No.:
- 140-705
- Mfr. Part No.:
- 2CCS892001R0504
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 2 | |
| Current Rating | 50 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 690 V ac | |
| Breaking Capacity | 36kA | |
| Series | S802N | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20 | |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 | |
| Width | 54 mm | |
| Height | 95mm | |
| Depth | 82.5mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 2 | ||
Current Rating 50 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 690 V ac | ||
Breaking Capacity 36kA | ||
Series S802N | ||
Terminal Type Cage Terminal | ||
IP Rating IP20 | ||
Standards/Approvals IEC/EN 60947-2, IEC/EN 60898-1 | ||
Width 54 mm | ||
Height 95mm | ||
Depth 82.5mm | ||
- COO (Country of Origin):
- CH
The ABB high-performance circuit breaker is a 2-pole device with a C-characteristic. With a maximum breaking capacity of 36kA at 240/415V, it is designed for voltages up to 400/690V and can be used in residential, commercial, and industrial applications. Featuring both thermal and electromechanic tripping mechanisms, this circuit breaker ensures overload and short circuit protection. With approvals from IEC/EN 60898-1 and IEC/EN 60947-2is a reliable solution for securing your application.
2-pole high performance circuit breaker with C-characteristic
Maximum breaking capacity of 36kA at 240 or 415 V
Designed for voltages up to 400/690V
Thermal and electromechanic tripping mechanisms for overload and short circuit protection
Compliance with IEC/EN 60898-1 and IEC/EN 60947-2 standards
Suitable for residential commercial and industrial applications
