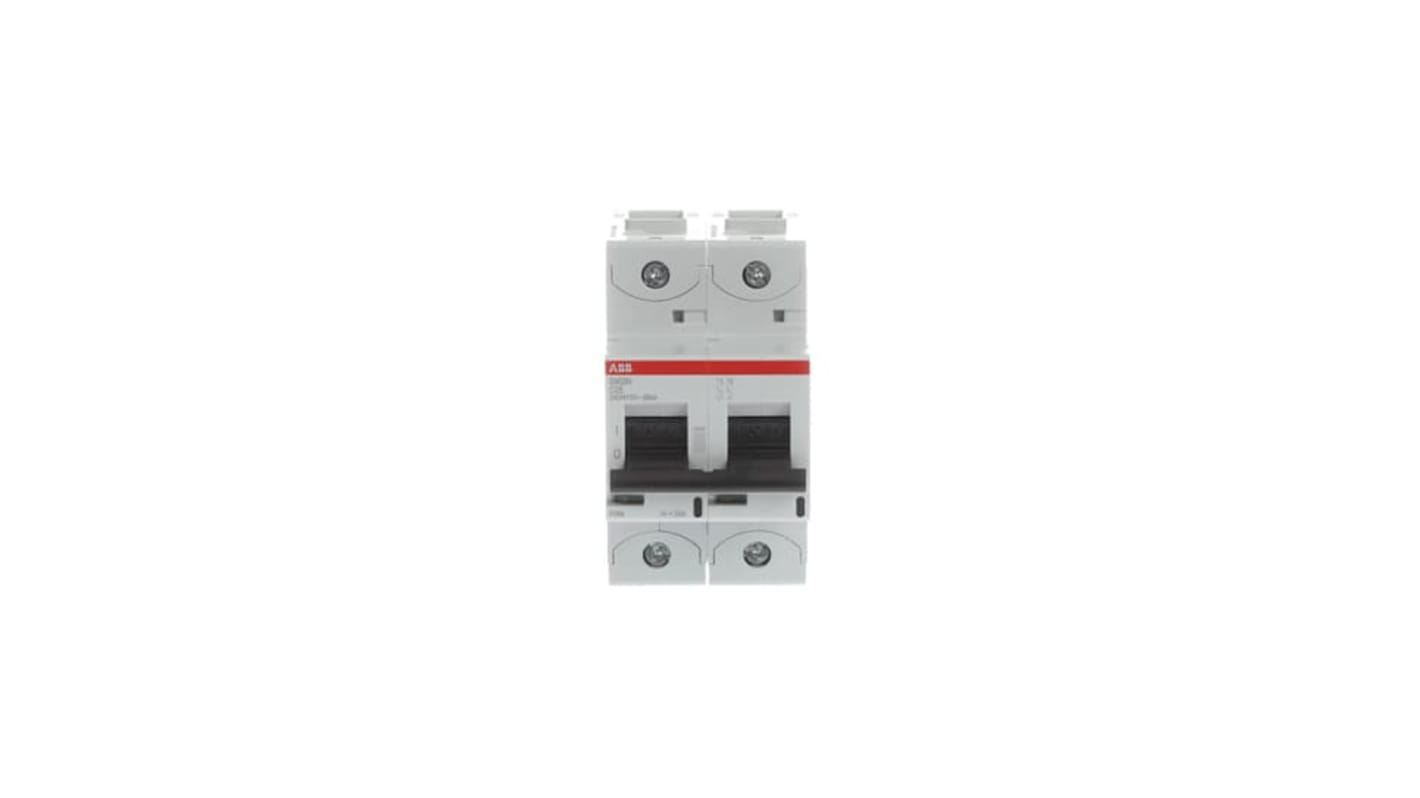

ABB S802N Miniature Circuit Breaker, 2-Pole, 25A, Type C, 690V ac AC, 36 kA Breaking Capacity
- RS Stock No.:
- 140-595
- Mfr. Part No.:
- 2CCS892001R0254
- Brand:
- ABB
Subtotal (1 unit)*
£127.58
(exc. VAT)
£153.10
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £127.58 |
*price indicative
- RS Stock No.:
- 140-595
- Mfr. Part No.:
- 2CCS892001R0254
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 2 | |
| Current Rating | 25A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 690V ac | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 36kA | |
| Series | S802N | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20, IP40 | |
| Depth | 82.5mm | |
| Width | 54mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Height | 95mm | |
| Tripping Mechanism | Electromechanic, Thermal | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 2 | ||
Current Rating 25A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 690V ac | ||
Mount Type DIN Rail | ||
Breaking Capacity 36kA | ||
Series S802N | ||
Terminal Type Cage Terminal | ||
IP Rating IP20, IP40 | ||
Depth 82.5mm | ||
Width 54mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Height 95mm | ||
Tripping Mechanism Electromechanic, Thermal | ||
- COO (Country of Origin):
- CH
The ABB high performance MCB is a 2-pole circuit breaker with a C-characteristic. It is a current limiting device with a maximum breaking capacity of 36kA at 240/415V. MCB is suitable for residential, commercial, and industrial applications, complying with IEC/EN standards.
2-pole High Performance Circuit Breaker with C-characteristic
Maximum breaking capacity of 36kA at 240 or 415 V
Thermal tripping mechanism for overload protection and electromechanic tripping mechanism for short circuit protection
Suitable for voltages up to 400/690V and in DC as well
Secures applications with fast arc extinction
Can be used worldwide with numerous approvals
Energy limiting Class 3 for safety
Electrical and mechanical endurance of 10000 cycles
