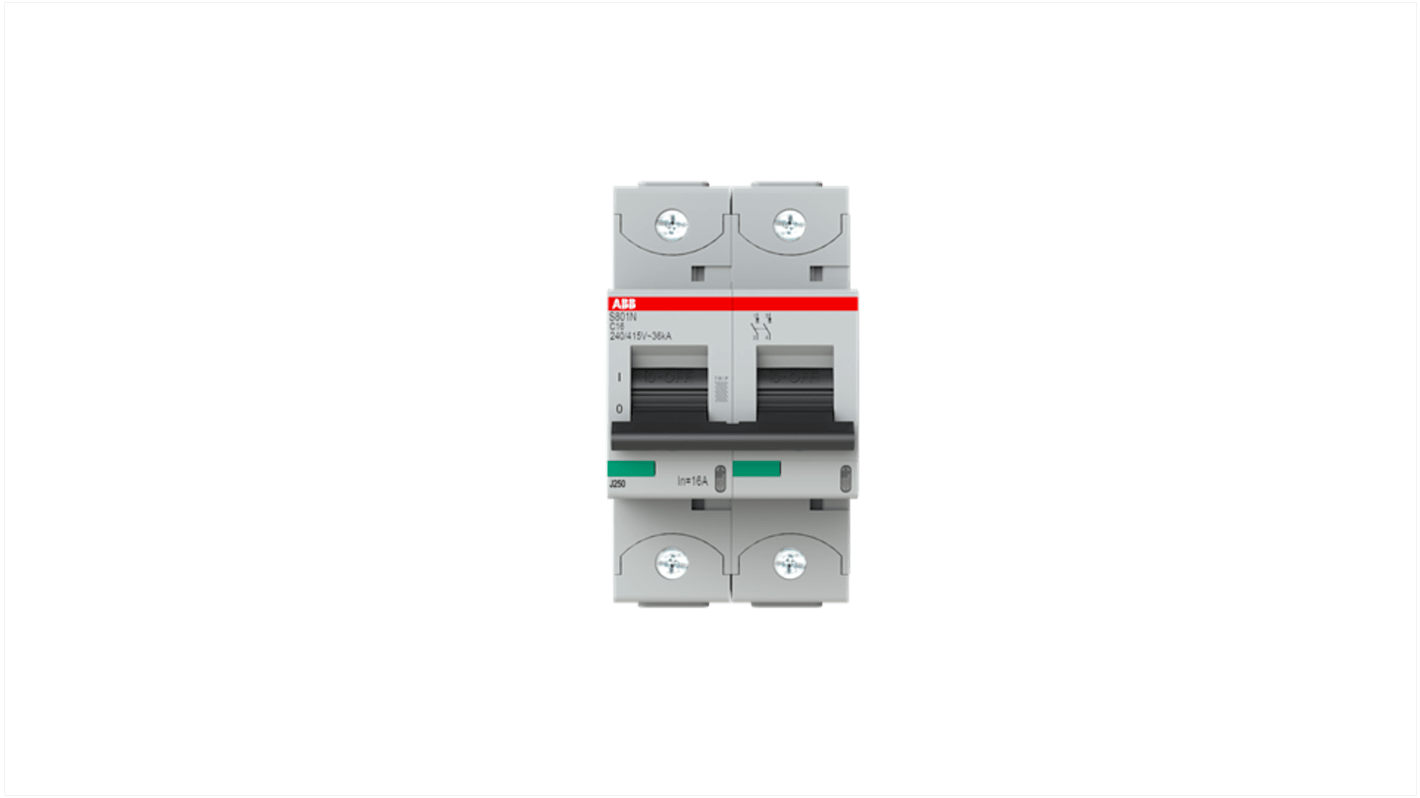

ABB S802N MCB, 2P, 16A Curve C, 690V AC, 36 kA Breaking Capacity

RS Stock No.:: 140-550
Mfr. Part No.:: 2CCS892001R0164
Brand:: ABB

ABB S802N MCB, 2P, 16A Curve C, 690V AC, 36 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£116.11

(exc. VAT)

£139.33

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 06 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£116.11

*price indicative

RS Stock No.:: 140-550
Mfr. Part No.:: 2CCS892001R0164
Brand:: ABB

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Number of Poles	2
	Current Rating	16A
	Tripping Characteristics	Type C
	Rated AC Voltage	690V
	Breaking Capacity at Maximum Voltage Rating	36 kA
	Series	S802N
	Circuit Breaker Type	MCB
	Width	54mm
	Length	82.5mm
	Mounting Style	DIN Rail
	Depth	82.5mm
	Model Number	S802N-C16
	Terminal Contact Type	Screw
	Application	Commercial, Industrial

	Select all
	Brand ABB
	Number of Poles 2
	Current Rating 16A
	Tripping Characteristics Type C
	Rated AC Voltage 690V
	Breaking Capacity at Maximum Voltage Rating 36 kA
	Series S802N
	Circuit Breaker Type MCB
	Width 54mm
	Length 82.5mm
	Mounting Style DIN Rail
	Depth 82.5mm
	Model Number S802N-C16
	Terminal Contact Type Screw
	Application Commercial, Industrial

ABB S802N Series MCB, 16A Current Rating, 690V Rated AC Voltage - 2CCS892001R0164

The S802N-C16 is a 2-pole Miniature Circuit Breaker (MCB) designed for operational excellence in both commercial and industrial environments. With a width of 54mm and a length of 82.5mm, this high breaking capacity MCB provides a current rating of 16A. Compliant with IEC/EN standards, it is suitable for voltages of up to 690V and is designed for DIN rail mounting.

Features & Benefits

• Current limiting device with 36kA breaking capacity for safety
• Thermal electromechanical tripping mechanisms enhance protection
• Compatible with a wide voltage range for versatile applications
• Easy installation on standard DIN rails for convenience
• Robust design ensures durability in demanding conditions
• Multiple approvals facilitate global usage across applications

Applications

• Ideal for circuit protection in industrial machinery
• Perfect for commercial electrical systems to prevent overload
• Reliable in residential for enhanced safety
• Suitable for installations requiring high voltage handling
• Effective in scenarios demanding rapid arc extinction

What is the importance of the tripping characteristics in this device?

The thermal electromechanical tripping allows for effective overload protection while swiftly responding to short-circuit conditions, ensuring that electrical systems are safeguarded against potential damage.

How does the breaking capacity of this unit ensure operational safety?

With a maximum breaking capacity of 36kA, it can effectively handle fault currents, preventing damage to connected loads and ensuring system integrity in the event of electrical faults.

Can this circuit breaker be used in DC applications?

Yes, it is designed to operate safely with DC voltages as well as AC voltages, making it versatile for various electrical systems, including renewable energy installations.

What are the benefits of mounting this device on a DIN rail?

Mounting on a DIN rail simplifies installation and allows for organised wiring in control panels while providing ease of access for maintenance or adjustments.

What type of terminals are used for connections?

The device features screw terminals that accommodate both flexible and rigid wiring, ensuring secure and reliable connections for optimal performance.
