SAUERMANN. Differential Manometer With 2 Pressure Port/s, Max Pressure Measurement 15000 Pa, RSCAL
- RS Stock No.:
- 241-0548
- Mfr. Part No.:
- SI-PM3
- Brand:
- SAUERMANN.
Subtotal (1 unit)*
£227.31
(exc. VAT)
£272.77
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £227.31 |
*price indicative
- RS Stock No.:
- 241-0548
- Mfr. Part No.:
- SI-PM3
- Brand:
- SAUERMANN.
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SAUERMANN. | |
| Accuracy | ±1.5 % | |
| Product Type | Manometer | |
| Number of Pressure Ports | 2 | |
| Maximum Pressure Measurement | 15000Pa | |
| Minimum Pressure Measurement | -15000Pa | |
| Pressure Port Type | Differential | |
| IP Rating | IP40 | |
| Power Source | Battery | |
| Battery Type | 1.5 V AAA LR03 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Battery Life | 170h | |
| Standards/Approvals | 2014/30/EU EMC, RoHS II, 2012/19/EU WEEE, 2014/35/EU, 2015/863 EU (RoHS 3) | |
| Width | 33mm | |
| Length | 70mm | |
| Height | 141mm | |
| Hazardous Area Certification | No | |
| Weight | 200g | |
| Calibrated | RSCAL | |
| Select all | ||
|---|---|---|
Brand SAUERMANN. | ||
Accuracy ±1.5 % | ||
Product Type Manometer | ||
Number of Pressure Ports 2 | ||
Maximum Pressure Measurement 15000Pa | ||
Minimum Pressure Measurement -15000Pa | ||
Pressure Port Type Differential | ||
IP Rating IP40 | ||
Power Source Battery | ||
Battery Type 1.5 V AAA LR03 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Battery Life 170h | ||
Standards/Approvals 2014/30/EU EMC, RoHS II, 2012/19/EU WEEE, 2014/35/EU, 2015/863 EU (RoHS 3) | ||
Width 33mm | ||
Length 70mm | ||
Height 141mm | ||
Hazardous Area Certification No | ||
Weight 200g | ||
Calibrated RSCAL | ||
- COO (Country of Origin):
- CN

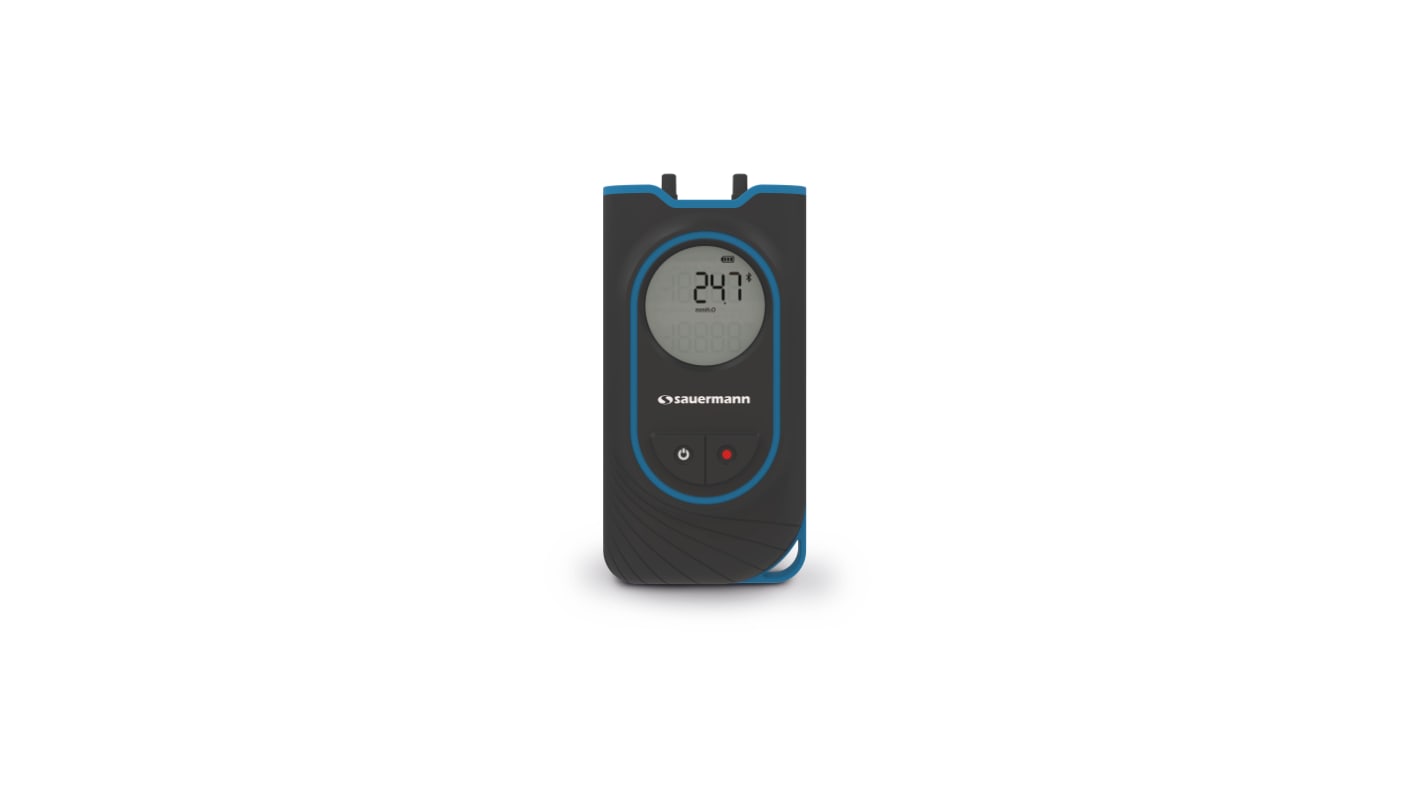

The SAUERMANN digital differential pressure manometer easily measures pressure.
Digital Differential Pressure Manometer
Backlit LCD screen
Easily view different parameters
Browse saved measurements history and data graphs
Create reports (PDF, CSV, or XML) and add up to four (4) photos
