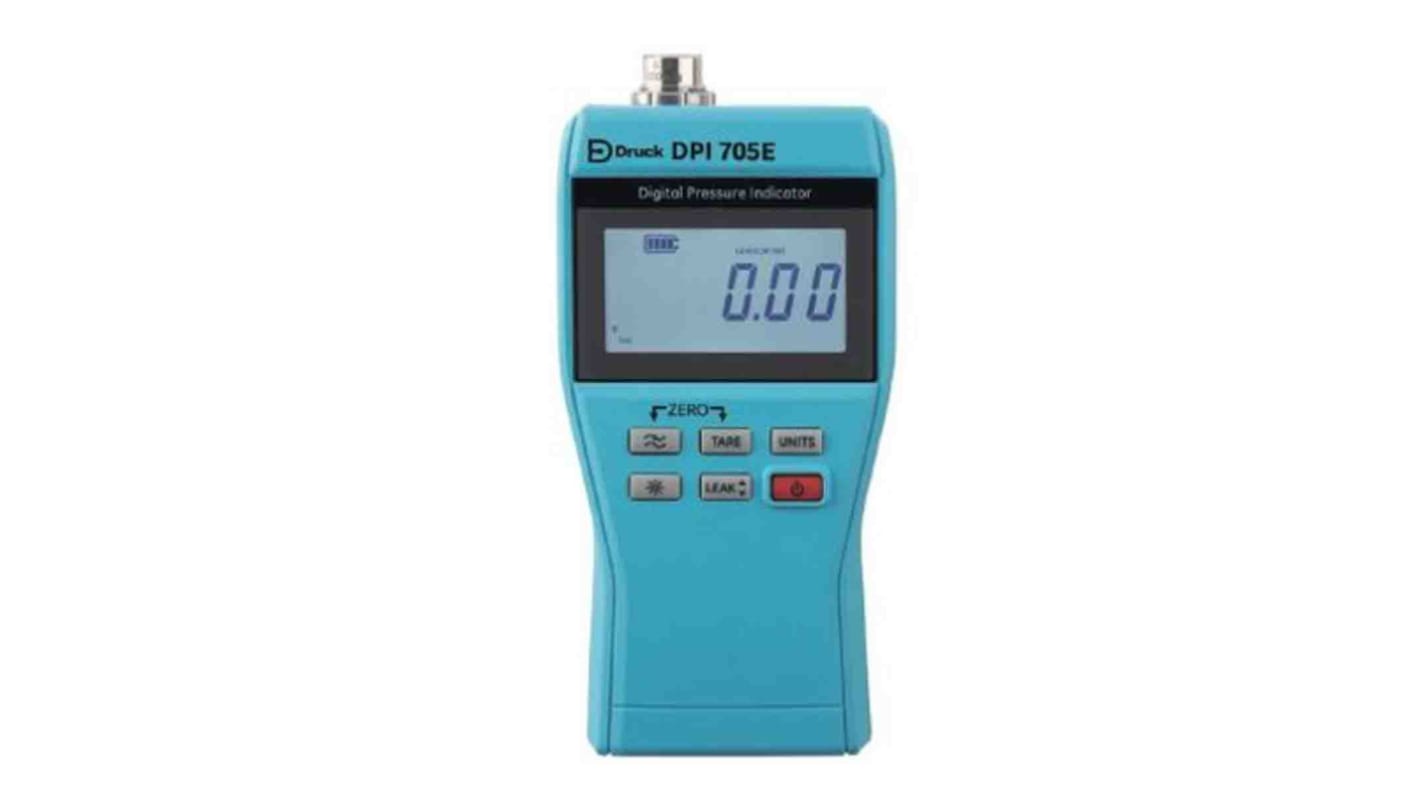

Druck DPI705E Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 0.2bar With RS Calibration
- RS Stock No.:
- 201-2927
- Mfr. Part No.:
- DPI705E-1-02G-P1-H0-U0-OP0
- Brand:
- Druck
Subtotal (1 unit)*
£705.38
(exc. VAT)
£846.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 3 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £705.38 |
*price indicative
- RS Stock No.:
- 201-2927
- Mfr. Part No.:
- DPI705E-1-02G-P1-H0-U0-OP0
- Brand:
- Druck
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Druck | |
Calibrated | RSCAL | |
Best Accuracy | ±0.1 % | |
Number of Pressure Ports | 1 | |
Maximum Pressure Measurement | 0.2bar | |
Minimum Pressure Measurement | 0bar | |
Pressure Port Type | Gauge | |
Leak Testing | Yes | |
Model Number p | DPI705E | |
Data Logging | No | |
Intrinsically Safe | No | |
IP Rating | IP54 | |
Battery Type | AA | |
Display Type | Backlit LCD | |
Weight | 563g | |
Length | 200mm | |
Width | 95mm | |
Height | 43mm | |
Minimum Operating Temperature | -10°C | |
Dimensions | 200 x 95mm | |
Maximum Operating Temperature | +50°C | |
Select all | ||
---|---|---|
Brand Druck | ||
Calibrated RSCAL | ||
Best Accuracy ±0.1 % | ||
Number of Pressure Ports 1 | ||
Maximum Pressure Measurement 0.2bar | ||
Minimum Pressure Measurement 0bar | ||
Pressure Port Type Gauge | ||
Leak Testing Yes | ||
Model Number p DPI705E | ||
Data Logging No | ||
Intrinsically Safe No | ||
IP Rating IP54 | ||
Battery Type AA | ||
Display Type Backlit LCD | ||
Weight 563g | ||
Length 200mm | ||
Width 95mm | ||
Height 43mm | ||
Minimum Operating Temperature -10°C | ||
Dimensions 200 x 95mm | ||
Maximum Operating Temperature +50°C | ||
- COO (Country of Origin):
- GB
Druck Manometer, 0.2 Bar Maximum Pressure Measurement, IP54 - DPI705E-1-02G-P1-H0-U0-OP0
This handheld pressure indicator is a rugged and reliable device designed for single-handed operation. With a range of pressure measurement units and high-contrast display, this manometer is reliable for routine maintenance and system troubleshooting.
Features & Benefits
• Designed for single-handed operation, making it easy to use in various settings
• Ability to conduct leak tests for system integrity
• With 41 pressure ranges available, this manometer can handle a wide range of pressures
• No data logging feature for streamlined measurements
• Long-lasting battery life provides continuous usage for up to a year
• Ability to conduct leak tests for system integrity
• With 41 pressure ranges available, this manometer can handle a wide range of pressures
• No data logging feature for streamlined measurements
• Long-lasting battery life provides continuous usage for up to a year
Applications
• Ideal for diagnosing issues in pneumatic and hydraulic systems
• Can be used with pneumatic or hydraulic hand pumps for calibration purposes
• Can be used for routine maintenance checks in industrial settings
• Can be used with pneumatic or hydraulic hand pumps for calibration purposes
• Can be used for routine maintenance checks in industrial settings
Can it be used in hazardous areas?
Yes, there is an intrinsically safe version available for hazardous environments.
Will it provide accurate readings for pressure measurements?
The manometer has a best accuracy of ±0.1%, ensuring reliable and precise measurements.
Is the battery life sufficient for prolonged use?
Yes, with a long-lasting battery life, the manometer can be used continuously for up to a year.
Note
Why choose Druck?
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.
