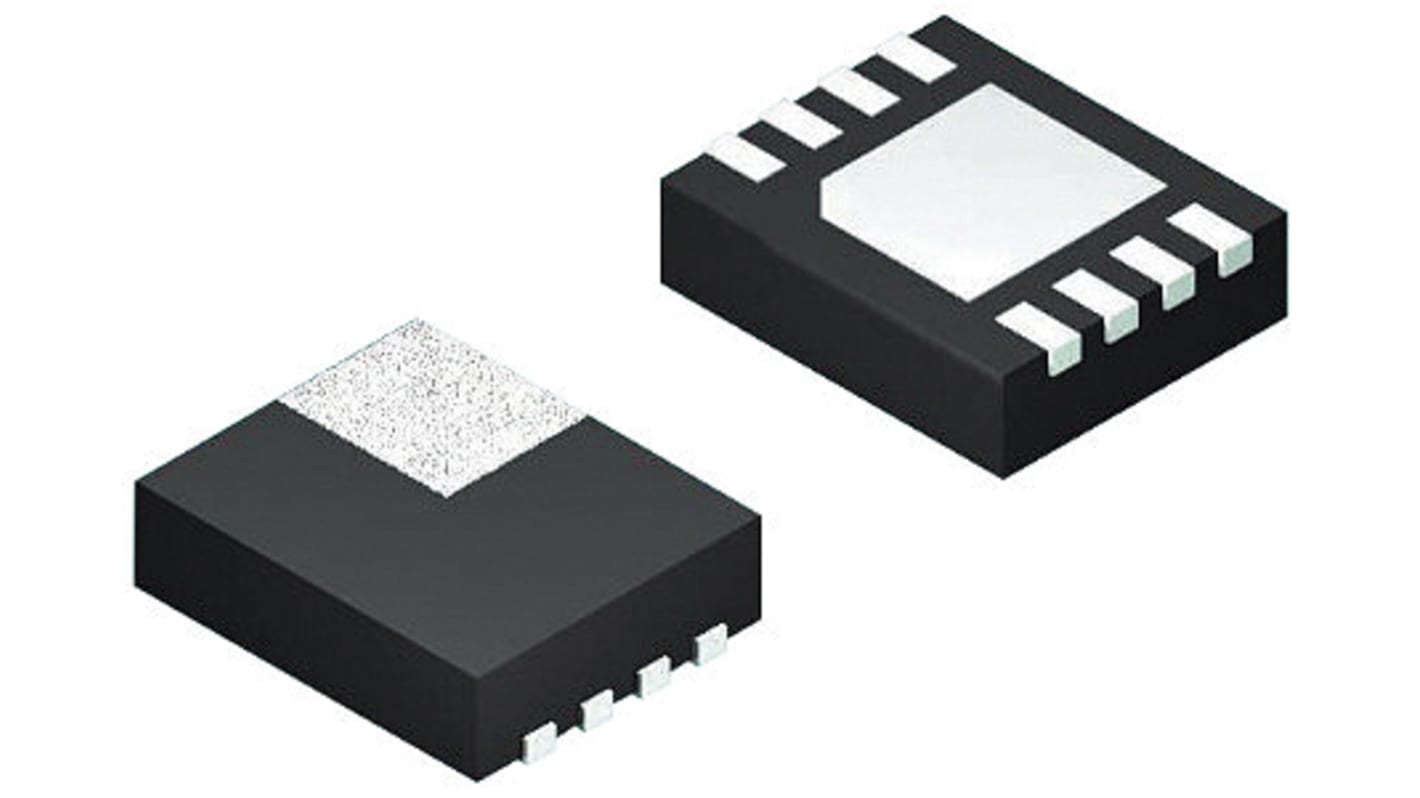

Texas Instruments, Buffer IC 1 LVDS LVDS, 8-Pin WSON
- RS Stock No.:
- 921-2889
- Mfr. Part No.:
- DS25BR120TSD/NOPB
- Brand:
- Texas Instruments
Subtotal (1 reel of 1000 units)*
£2,911.00
(exc. VAT)
£3,493.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £2.911 | £2,911.00 |
*price indicative
- RS Stock No.:
- 921-2889
- Mfr. Part No.:
- DS25BR120TSD/NOPB
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Buffer IC | |
| Number of Drivers | 1 | |
| Input Type | LVDS | |
| Number of Receivers | 1 | |
| Sub Type | Buffer | |
| Output Type | LVDS | |
| Transmission Data Rate | 3.13Gbps | |
| Number of Elements per Chip | 1 | |
| Mount Type | Surface | |
| Package Type | WSON | |
| Pin Count | 8 | |
| Differential Input High Threshold Voltage | 100mV | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 3.6V | |
| Differential Input Low Threshold Voltage | -100mV | |
| Minimum Operating Temperature | -40°C | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Height | 0.8mm | |
| Series | DS25BR120 | |
| Length | 3mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Buffer IC | ||
Number of Drivers 1 | ||
Input Type LVDS | ||
Number of Receivers 1 | ||
Sub Type Buffer | ||
Output Type LVDS | ||
Transmission Data Rate 3.13Gbps | ||
Number of Elements per Chip 1 | ||
Mount Type Surface | ||
Package Type WSON | ||
Pin Count 8 | ||
Differential Input High Threshold Voltage 100mV | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 3.6V | ||
Differential Input Low Threshold Voltage -100mV | ||
Minimum Operating Temperature -40°C | ||
ESD Protection Yes | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Height 0.8mm | ||
Series DS25BR120 | ||
Length 3mm | ||
Automotive Standard No | ||
Signal Conditioners, LVDS Repeaters, Texas Instruments
LVDS Communication
Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.
Applications: Firewire, SATA, SCSI
