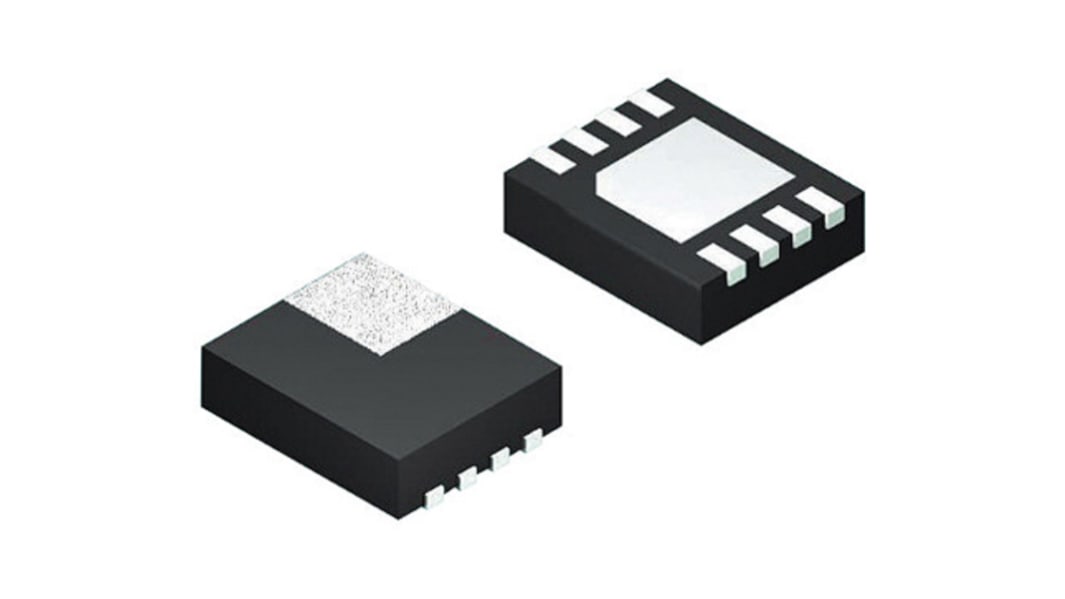

Texas Instruments DS15BA101SDE/NOPB, LVDS Buffer CML, LVDS, LVPECL LVDS, 8-Pin LLP
- RS Stock No.:
- 761-5359
- Mfr. Part No.:
- DS15BA101SDE/NOPB
- Brand:
- Texas Instruments
2 In stock - FREE next working day delivery available
Added
Price Each
£3.34
(exc. VAT)
£4.01
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £3.34 |
| 5 - 9 | £3.01 |
| 10 - 24 | £2.67 |
| 25 - 49 | £2.34 |
| 50 + | £2.19 |
- RS Stock No.:
- 761-5359
- Mfr. Part No.:
- DS15BA101SDE/NOPB
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
Product Details
DS15BA101, 1.5Gbps Differential Buffer with Adjustable Output Voltage, Texas Instruments
Differential or Single-ended Input
Adjustable Output Amplitude
Power Supply Voltage 3.3 V
Adjustable Output Amplitude
Power Supply Voltage 3.3 V
Specifications
Attribute | Value |
|---|---|
| Number of Drivers | 1 |
| Input Type | CML, LVDS, LVPECL |
| Output Type | LVDS |
| IC Type | Buffer IC |
| Transmission Data Rate | 2000Mbps |
| Number of Elements per Chip | 2 |
| Mounting Type | Surface Mount |
| Package Type | LLP |
| Pin Count | 8 |
| Dimensions | 3 x 3 x 0.8mm |
| Height | 0.8mm |
| Length | 3mm |
| Maximum Operating Supply Voltage | 3.3 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 3mm |
- RS Stock No.:
- 761-5359
- Mfr. Part No.:
- DS15BA101SDE/NOPB
- Brand:
- Texas Instruments
