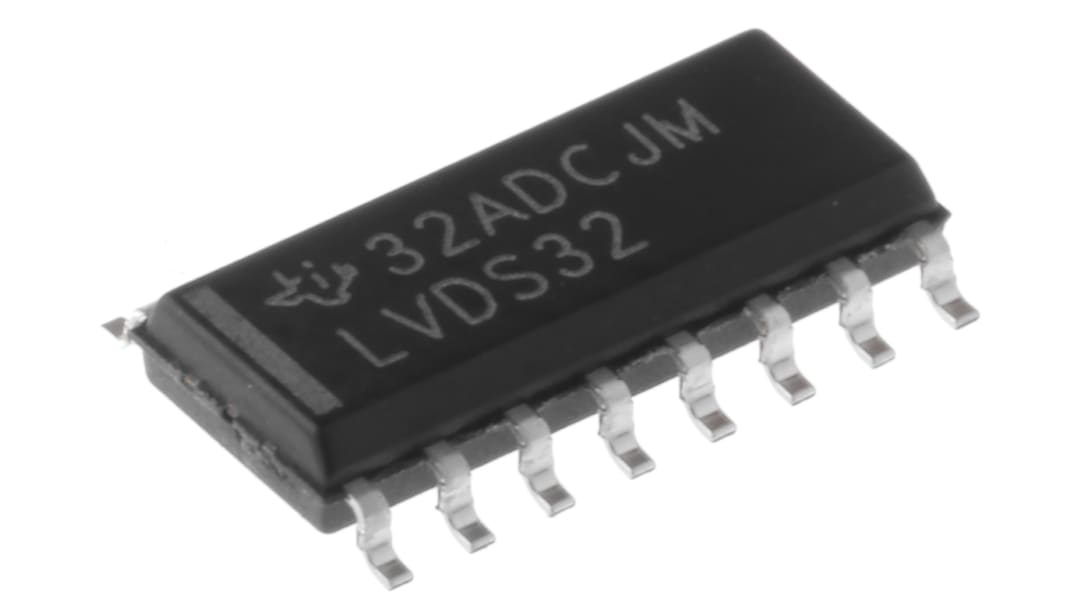

Texas Instruments, Receiver IC 4 LVDS LVTTL, 16-Pin SOIC
- RS Stock No.:
- 102-5641
- Mfr. Part No.:
- SN65LVDS32D
- Brand:
- Texas Instruments
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 102-5641
- Mfr. Part No.:
- SN65LVDS32D
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Receiver IC | |
| Number of Drivers | 4 | |
| Input Type | LVDS | |
| Number of Receivers | 4 | |
| Output Type | LVTTL | |
| Sub Type | Receiver | |
| Transmission Data Rate | 100Mbps | |
| Number of Elements per Chip | 4 | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 16 | |
| Minimum Supply Voltage | 3V | |
| Differential Input High Threshold Voltage | 100mV | |
| Differential Input Low Threshold Voltage | -100mV | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | SN65LVDS32 | |
| Height | 1.58mm | |
| Length | 9.9mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Receiver IC | ||
Number of Drivers 4 | ||
Input Type LVDS | ||
Number of Receivers 4 | ||
Output Type LVTTL | ||
Sub Type Receiver | ||
Transmission Data Rate 100Mbps | ||
Number of Elements per Chip 4 | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 16 | ||
Minimum Supply Voltage 3V | ||
Differential Input High Threshold Voltage 100mV | ||
Differential Input Low Threshold Voltage -100mV | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
ESD Protection Yes | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series SN65LVDS32 | ||
Height 1.58mm | ||
Length 9.9mm | ||
Automotive Standard No | ||
FlatLink/FPD-Link Serialiser/Deserialiser, Texas Instruments
LVDS Transmitters for use with 24-bit FPD (Flat Panel Display) links operating at 65 and 85 MHz.
LVCMOS/LVTTL inputs
3.3V Low-power operation
PLL transmitter data clock
Complies with TIA/EIA-644 LVDS standard
LVDS Communication
Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.
Applications: Firewire, SATA, SCSI
