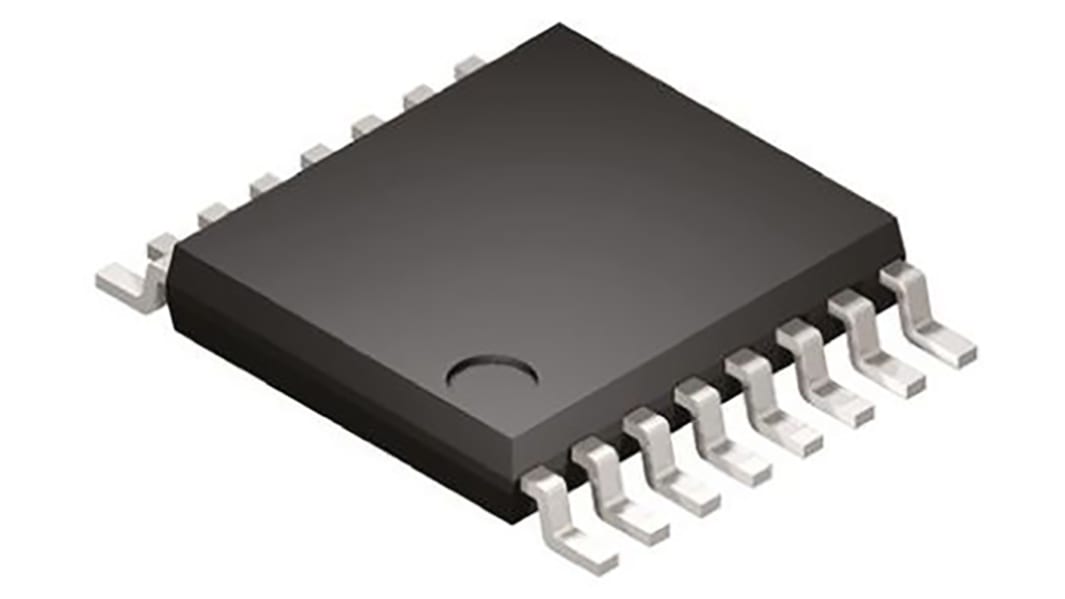

Texas Instruments SN65LVDS32PW, Receiver IC 4 LVDS LVTTL, 16-Pin TSSOP
- RS Stock No.:
- 462-0305
- Mfr. Part No.:
- SN65LVDS32PW
- Brand:
- Texas Instruments
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£2.63
(exc. VAT)
£3.16
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 56 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £2.63 |
| 5 - 9 | £2.51 |
| 10 - 24 | £2.26 |
| 25 - 49 | £2.03 |
| 50 + | £1.92 |
*price indicative
- RS Stock No.:
- 462-0305
- Mfr. Part No.:
- SN65LVDS32PW
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Receiver IC | |
| Number of Drivers | 4 | |
| Input Type | LVDS | |
| Number of Receivers | 4 | |
| Sub Type | Receiver | |
| Output Type | LVTTL | |
| Transmission Data Rate | 100Mbps | |
| Number of Elements per Chip | 4 | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Pin Count | 16 | |
| Differential Input High Threshold Voltage | 100mV | |
| Minimum Supply Voltage | 3V | |
| Differential Input Low Threshold Voltage | -100mV | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 85°C | |
| Series | SN65LVDS32 | |
| Standards/Approvals | RoHS | |
| Length | 5mm | |
| Height | 1.15mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Receiver IC | ||
Number of Drivers 4 | ||
Input Type LVDS | ||
Number of Receivers 4 | ||
Sub Type Receiver | ||
Output Type LVTTL | ||
Transmission Data Rate 100Mbps | ||
Number of Elements per Chip 4 | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Pin Count 16 | ||
Differential Input High Threshold Voltage 100mV | ||
Minimum Supply Voltage 3V | ||
Differential Input Low Threshold Voltage -100mV | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
ESD Protection Yes | ||
Maximum Operating Temperature 85°C | ||
Series SN65LVDS32 | ||
Standards/Approvals RoHS | ||
Length 5mm | ||
Height 1.15mm | ||
Automotive Standard No | ||
LVDS Line Receivers, Texas Instruments
A range of Differential line receivers for balanced or unbalanced digital data transmission via LVDS networks fromTexas Instruments.
LVDS Communication
Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.
Applications: Firewire, SATA, SCSI
