Megger LT300-EN-BS Loop Impendance Tester, Loop Impedance Test Type 2 Wire 550V CAT IV RS Calibration
- RS Stock No.:
- 536-9219
- Mfr. Part No.:
- LT300-EN-BS
- Brand:
- Megger
Subtotal (1 unit)*
£693.74
(exc. VAT)
£832.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 31 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £693.74 |
*price indicative
- RS Stock No.:
- 536-9219
- Mfr. Part No.:
- LT300-EN-BS
- Brand:
- Megger
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Megger | |
| Calibrated | RSCAL | |
| Test Equipment Type | Earth Loop Impedance Tester | |
| Loop Impedance Test Type | 2 Wire | |
| Maximum Voltage Measurement | 550V | |
| Best Loop Test Accuracy | ±5% | |
| Safety Category | CAT IV 300V | |
| Display Type | LCD | |
| Battery Type | AA | |
| Power Source | Battery | |
| Weight | 980g | |
| Safety Category Voltage | 300V | |
| Safety Category Level | CAT IV | |
| Plug Type | Type G - British 3-pin | |
| Model Number p | LT300 | |
| Height | 78mm | |
| Minimum Operating Temperature | -10°C | |
| Length | 203mm | |
| Width | 148mm | |
| Maximum Operating Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand Megger | ||
Calibrated RSCAL | ||
Test Equipment Type Earth Loop Impedance Tester | ||
Loop Impedance Test Type 2 Wire | ||
Maximum Voltage Measurement 550V | ||
Best Loop Test Accuracy ±5% | ||
Safety Category CAT IV 300V | ||
Display Type LCD | ||
Battery Type AA | ||
Power Source Battery | ||
Weight 980g | ||
Safety Category Voltage 300V | ||
Safety Category Level CAT IV | ||
Plug Type Type G - British 3-pin | ||
Model Number p LT300 | ||
Height 78mm | ||
Minimum Operating Temperature -10°C | ||
Length 203mm | ||
Width 148mm | ||
Maximum Operating Temperature +60°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB

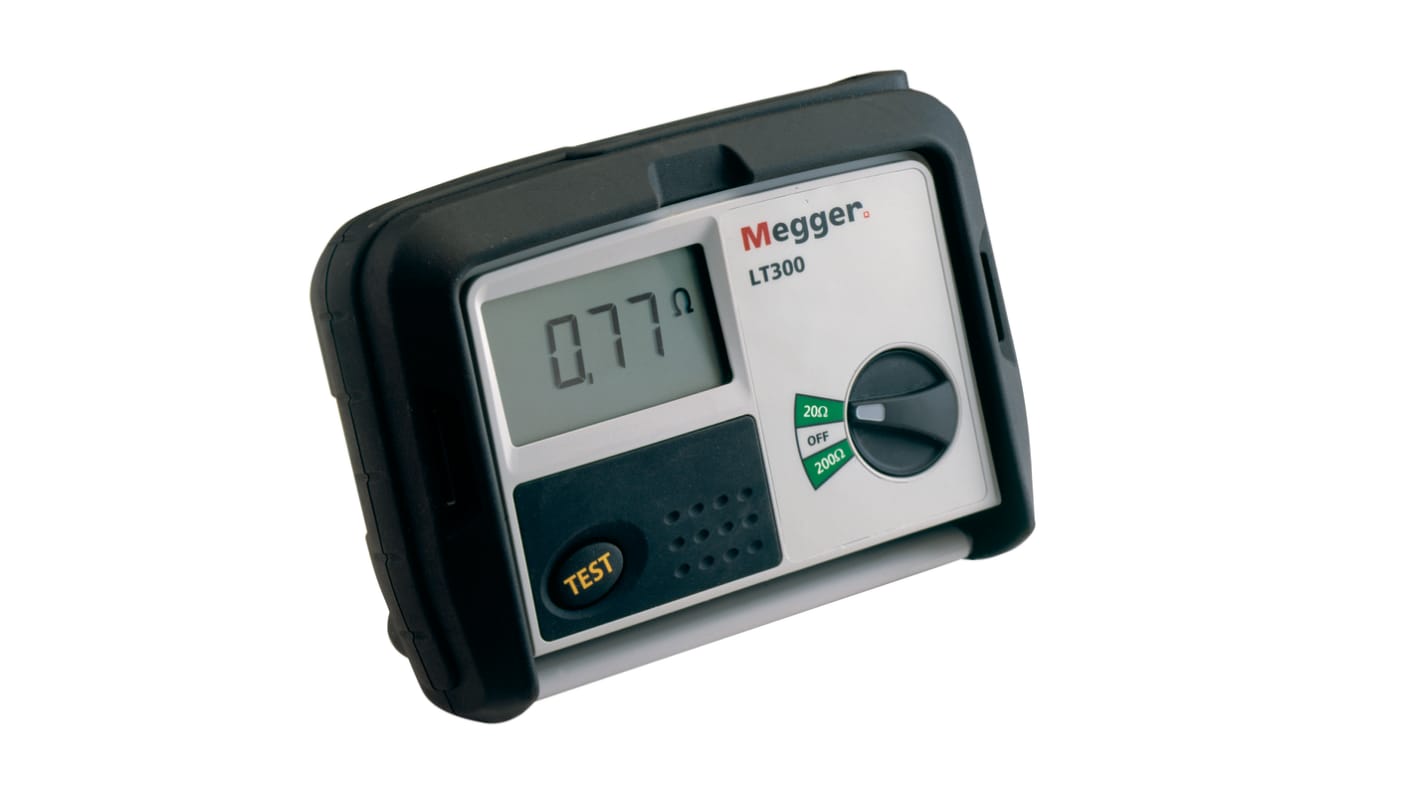

LT300 Loop Tester
The LT300 combines high current-loop testing over a wide range of frequencies and supply voltages with simple operation. This is a HIGH CURRENT ONLY tester, designed for installations where there are no RCDs installed. A two-wire test performs a fast loop impedance measurement at a test current up to 27A, with a resolution of 0.01ohms. Frequency range and operating voltage are wide, allowing for a diverse range of applications up to and including CATIV 550V phase-to-phase. Testing commences automatically as soon as the instrument is connected to the supply. Repeat testing is provided by the TEST button.
High current loop tester
Simple auto start operation
16Hz to 400Hz frequency range
Up to CATIV 300V phase-to-earth (550V phase-to-phase) applications
Optional two-wire lead set available separately, RS stock no. 537-7282
Simple auto start operation
16Hz to 400Hz frequency range
Up to CATIV 300V phase-to-earth (550V phase-to-phase) applications
Optional two-wire lead set available separately, RS stock no. 537-7282
Note
RS is an authorised Megger distributor. Purchased though RS this product is eligible for the Megger extended 3 Year warranty
Supplied with
durable hard carry case; BS1363 mains socket test lead; 8 x AA alkaline batteries; instructions.
Megger Loop Impedance Tester, 20 and 200Ω Resistance Measuring Range, 203mm Length - LT300 Series - LT300-EN-BS
When you need to ensure your electrical systems are in tip-top shape, turn to this loop impedance tester from Megger. It's a versatile piece of kit that measures the resistance of high-current circuits up to 27A with single or three-phase testing, returning results on the 20 and 200Ω ranges. Loose connections or damaged cables are no problem, as the tester identifies faults so you can address potential hazards in a jiffy. Once the supply frequency is established upon connection, the device starts testing automatically to help you fly through your tasks.
Features & Benefits
• Large digital display for clear readouts
• Safe for use in challenging conditions, thanks to a wide operating temperature range between -10°C and +60°C
• Robust rubber case for protection when not in use
• Compact measurements of 203 (L) x 148 (H) x 78mm (D) make it easy to carry
• Safe for use in challenging conditions, thanks to a wide operating temperature range between -10°C and +60°C
• Robust rubber case for protection when not in use
• Compact measurements of 203 (L) x 148 (H) x 78mm (D) make it easy to carry
Applications
• Electrical engineering
• Construction sites
• Industrial equipment maintenance
• Construction sites
• Industrial equipment maintenance
What type of batteries does the tester take?
This device is powered by eight AA batteries, which can be either single-use alkaline or NiMH rechargeable cells.
