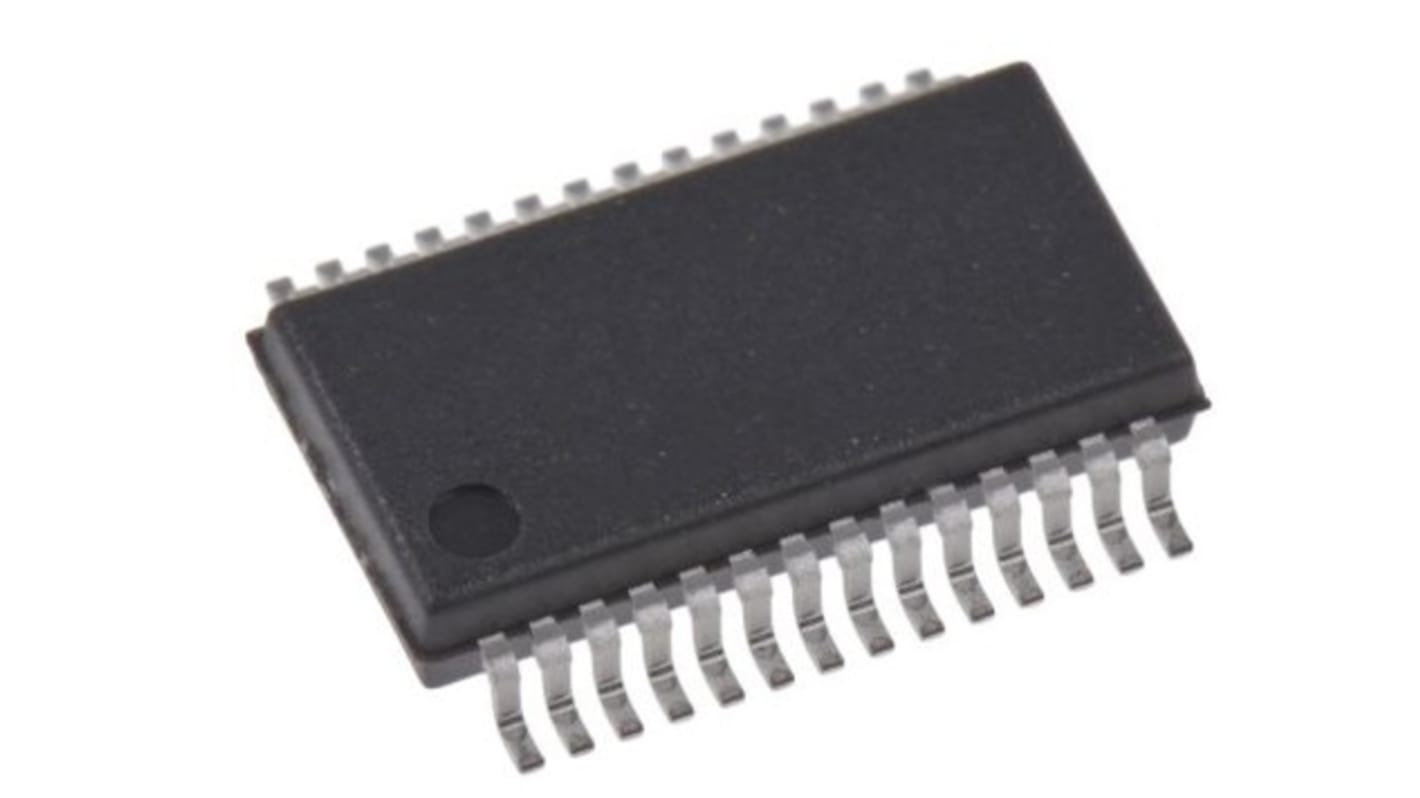

Renesas Electronics ICL3237EIAZ Line Transceiver, CMOS/TTL, Non-Inverting, 28-Pin SSOP

View all Line Interface ICs

Subtotal (1 tube of 705 units)*

£975.72

(exc. VAT)

£1,171.005

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 705 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
705 +£1.384£975.72

*price indicative

RS Stock No.:
264-0592
Mfr. Part No.:
ICL3237EIAZ
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

Line Transceiver

Logic Family

CMOS

Logic Function

Bus Transceiver

IC Type

Transmitter/Receiver

Input Type

3 State

Output Type

CMOS/TTL

Polarity

Non-Inverting

Package Type

SSOP

Minimum Supply Voltage

3V

Pin Count

28

Maximum High Level Output Current

1mA

Maximum Supply Voltage

5.5V

Maximum Propagation Delay Time @ CL

0.3μs

Maximum Low Level Output Current

0.3mA

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Series

ICL3237E

Standards/Approvals

RoHS

Length

6.5mm

Height

2mm

Width

5.6 mm

Supply Current

10nA

Automotive Standard

No

The Renesas Electronics pneumatic logic controller are high ESD protected, single transceivers that meet both the RS-485 and RS-422 standards for balanced communication. It is an efficient on-chip charge pumps coupled with the manual powerdown function reduce the standby supply current.

On-chip voltage converters

Manual powerdown feature

Flow through pinout
