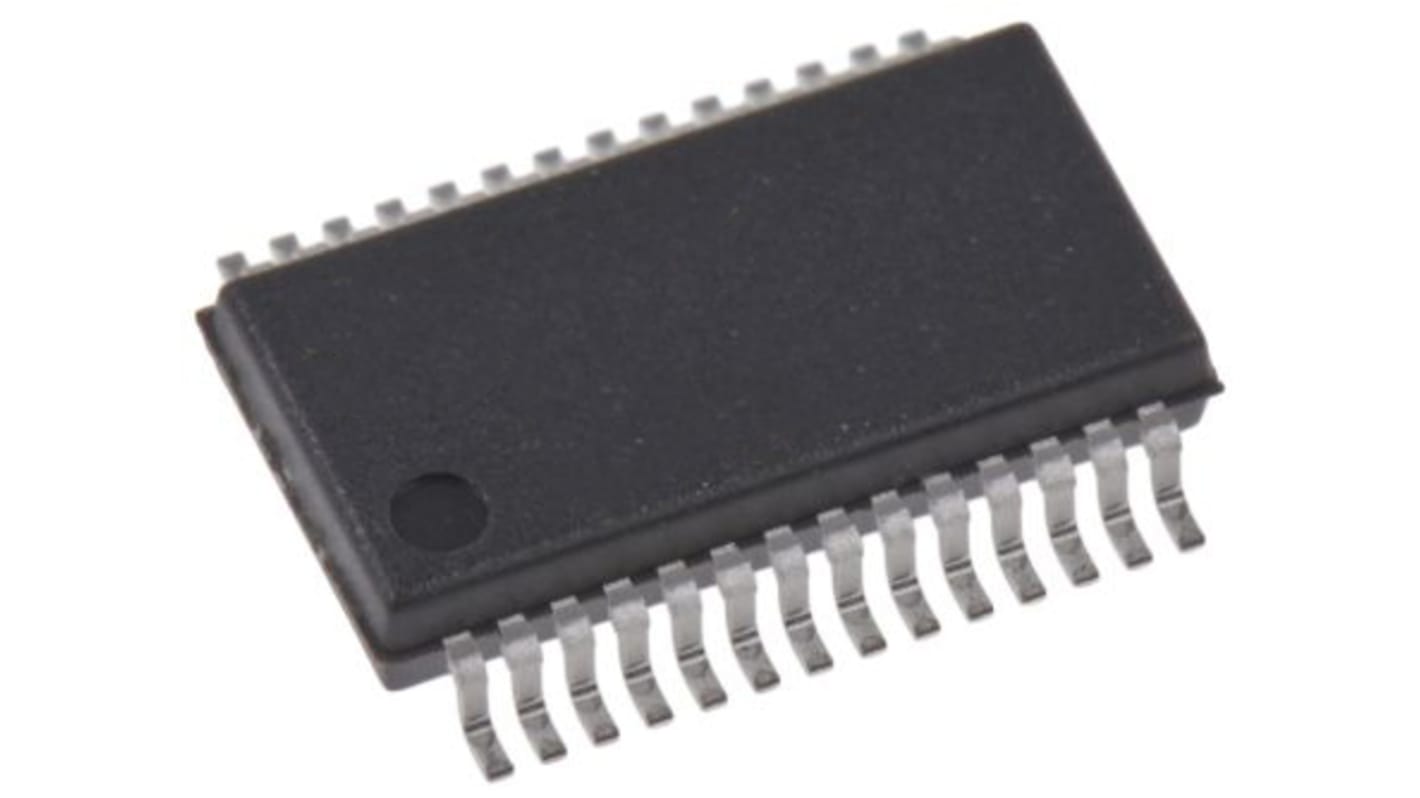

Renesas Electronics Line Transceiver, CMOS/TTL, Non-Inverting, 28-Pin SSOP

View all Line Interface ICs

Subtotal (1 reel of 1000 units)*

£1,011.00

(exc. VAT)

£1,213.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1,000 unit(s) shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1000 +£1.011£1,011.00

*price indicative

RS Stock No.:
256-1562
Mfr. Part No.:
ICL3243ECAZ-T
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Logic Family

CMOS/TTL

Product Type

Line Transceiver

Logic Function

Transceiver

IC Type

Transmitter/Receiver

Input Type

Single Ended

Output Type

CMOS/TTL

Polarity

Non-Inverting

Mount Type

Board

Package Type

SSOP

Pin Count

28

Minimum Supply Voltage

3.3V

Maximum High Level Output Current

3mA

Maximum Supply Voltage

5V

Minimum Operating Temperature

0°C

Maximum Low Level Output Current

0.3mA

Maximum Propagation Delay Time @ CL

0.15μs

Maximum Operating Temperature

70°C

Height

2mm

Width

5.6 mm

Standards/Approvals

RoHS

Series

ICL3243E

Length

10.5mm

Supply Current

1μA

Automotive Standard

No

The Renesas RS-232 transmitter/receiver is 3.0V to 5.5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V.28/V.24 specifications even at VCC 3.0V.Targeted applications are PDAs, notebook, and laptop computers where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge pumps, coupled with manual and automatic power-down functions, reduce the standby supply current to a 1μA trickle.

Latch-up free

On-chip voltage converters require only four external 0.1μF capacitors at VCC 3.3V

Manual and automatic power-down features

Receiver hysteresis for improved noise immunity

Ensured minimum data rate of 250kbps

Low supply current in power-down state of 1μA

Pb-free (RoHS compliant)
