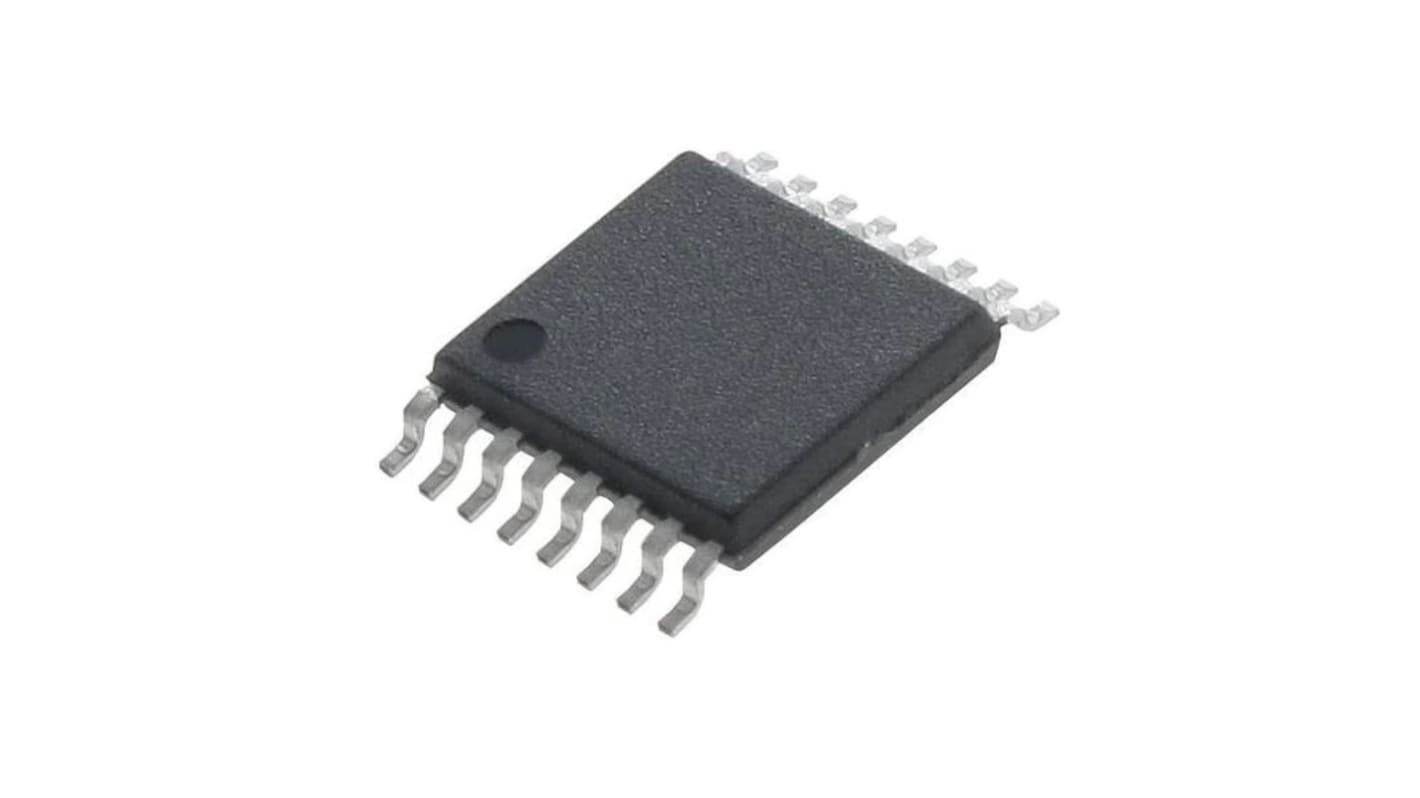

Renesas Electronics ICL3221IAZ-T Line Transceiver, CMOS/TTL, Non-Inverting, 16-Pin SSOP

View all Line Interface ICs

Subtotal (1 reel of 1000 units)*

£759.00

(exc. VAT)

£911.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1000 +£0.759£759.00

*price indicative

RS Stock No.:
196-7991
Mfr. Part No.:
ICL3221IAZ-T
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

Line Transceiver

Logic Family

CMOS/TTL

Logic Function

TTL

IC Type

Line Transceiver IC

Input Type

Differential

Output Type

CMOS/TTL

Polarity

Non-Inverting

Mount Type

Surface

Package Type

SSOP

Minimum Supply Voltage

3V

Pin Count

16

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-40°C

Maximum Propagation Delay Time @ CL

0.3μs

Maximum Operating Temperature

85°C

Series

ISL32

Standards/Approvals

No

Length

6.5mm

Height

2mm

Width

5.6 mm

Supply Current

1mA

Automotive Standard

No

The Renesas ICL32 series is a RS-232 transmitters/receivers with supply voltage Vcc Ranges from 3 to 5.5 volts. It is used in PDAs, notebook, and laptop computers where the low operational power consumption are censorious.

This transceiver are Latch-up free

Automatic and manual powerdown features

Receiver hysteresis for improved noise immunity

Minimum data rate (250kbps)

Wide power supply range ( single +3V to +5.5V)

Low supply current in powerdown state (1μA)
