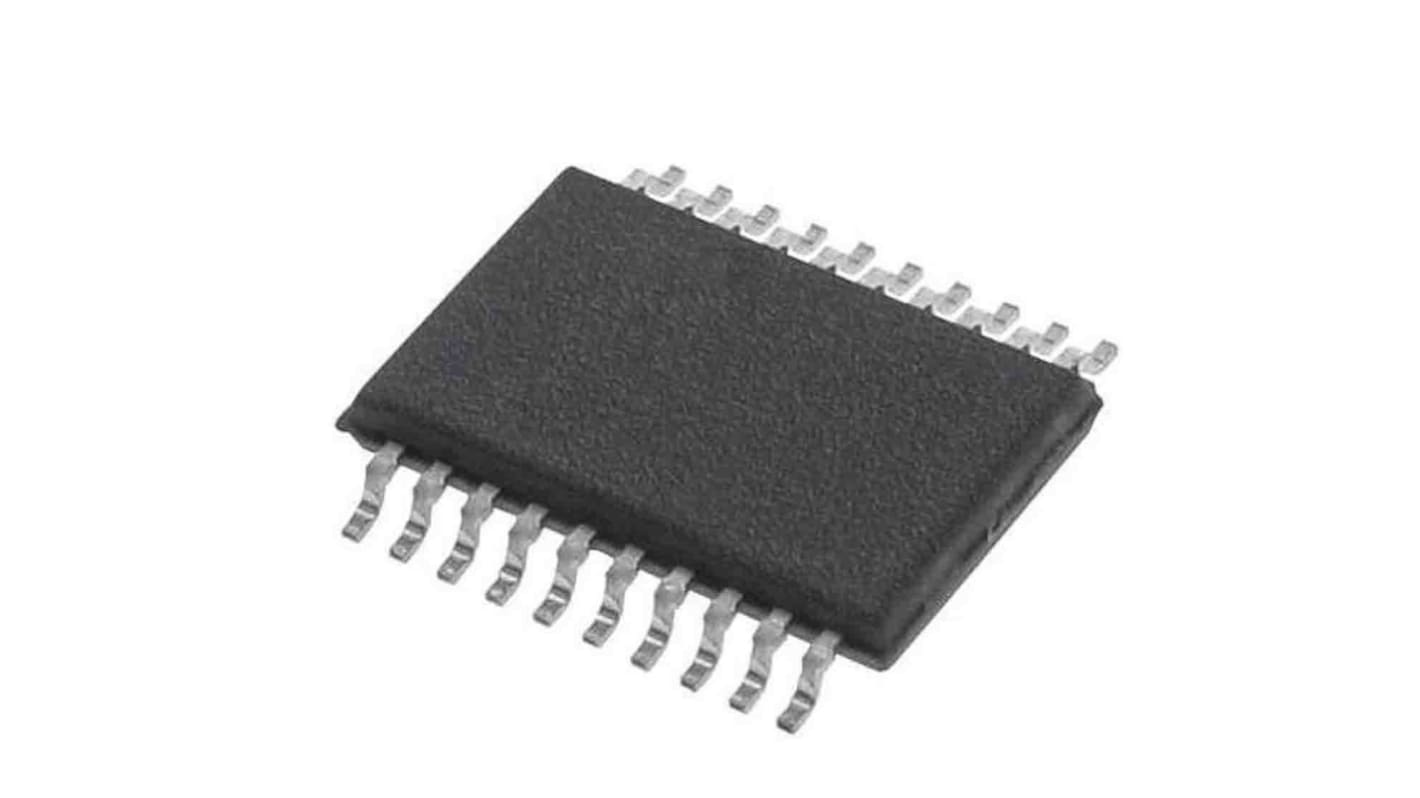

Renesas Electronics ISL3330IAZ-T7A Line Transceiver, Differential, 20-Pin SSOP

View all Line Interface ICs

Subtotal (1 unit)*

£5.64

(exc. VAT)

£6.77

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 408 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£5.64

*price indicative

Packaging Options:
RS Stock No.:
196-8650
Mfr. Part No.:
ISL3330IAZ-T7A
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Logic Family

CMOS/TTL

Product Type

Line Transceiver

Logic Function

CMOS

IC Type

Transceiver

Input Type

Differential

Output Type

Differential

Mount Type

Surface

Package Type

SSOP

Pin Count

20

Minimum Supply Voltage

3.3V

Maximum Supply Voltage

7V

Maximum Propagation Delay Time @ CL

2μs

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

No

Length

7.33mm

Series

ISL3330

Width

5.38 mm

Height

1.99mm

Automotive Standard

No

Supply Current

35μA

The Renesas ISL333 SERIES are BiCMOS Interface ICs that are user configured as either a single RS-422/RS-485 differential transceiver, or as a dual (2 Tx, 2 Rx) RS-232 transceiver. Both RS-232/RS-485 modes feature loopback and shutdown functions. The loopback mode internally connects the Tx outputs to the corresponding Rx input, which facilitates the implementation of board level self test functions.

5V Tolerant Logic Inputs

True Flow-Through Pinouts Simplify Board Layouts

Pb-Free (RoHS Compliant)

Full Failsafe (Open/Short) Rx in RS-485/RS-422 Mode
