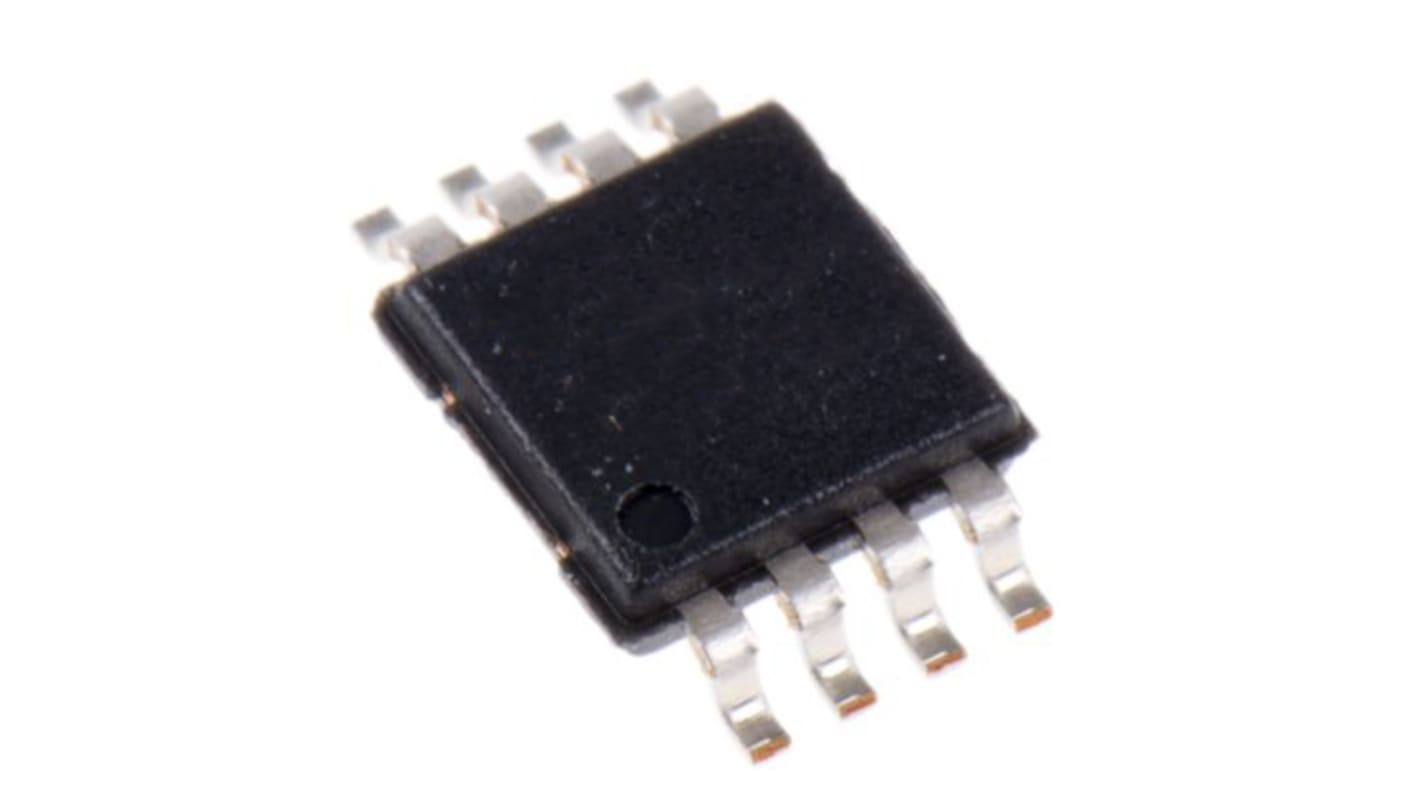

Renesas Electronics ISL32455EIUZ-T7A 1-Channel Line Transceiver, Differential, 8-Pin MSOP

View all Line Interface ICs
Bulk discount available

Subtotal (1 unit)*

£5.82

(exc. VAT)

£6.98

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 192 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£5.82
10 - 24£5.27
25 - 49£5.01
50 - 99£4.91
100 +£4.36

*price indicative

Packaging Options:
RS Stock No.:
256-1599
Mfr. Part No.:
ISL32455EIUZ-T7A
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

Line Transceiver

Logic Family

BiCMOS

Logic Function

Transceiver

Number of Channels

1

IC Type

Transceiver

Input Type

RS422/RS485

Output Type

Differential

Package Type

MSOP

Pin Count

8

Minimum Supply Voltage

3V

Maximum Supply Voltage

5.5V

Maximum High Level Output Current

4.5mA

Minimum Operating Temperature

-40°C

Maximum Low Level Output Current

2.1mA

Maximum Operating Temperature

85°C

Width

3 mm

Series

ISL32455E

Standards/Approvals

RoHS

Length

3mm

Height

1.1mm

Supply Current

2.1mA

Automotive Standard

No

The Renesas RS-485/RS-422 Transceiver is 3.3V to 5V powered, fault protected, extended common-mode range differential transceivers for balanced communication. The RS-485 bus pins, driver outputs and receiver inputs are protected against overvoltage's up to ±40V and against ±15kV ESD strikes. Additionally, these transceivers operate in environments with common-mode voltages up to ±15V (exceeds the RS-485 requirement), making this RS-485 family one of the most robust on the market.

±15kV HBM ESD protection on RS-485 bus pins

Wide supply range of 3V to 5.5V

1/4 unit load for up to 128 devices on the bus

High transient overvoltage tolerance of ±60V

Full fail-safe (open, short, terminated) RS-485 receivers

Choice of RS-485 data rates of 250kbps or 1Mbps

Pb-free (RoHS compliant)
