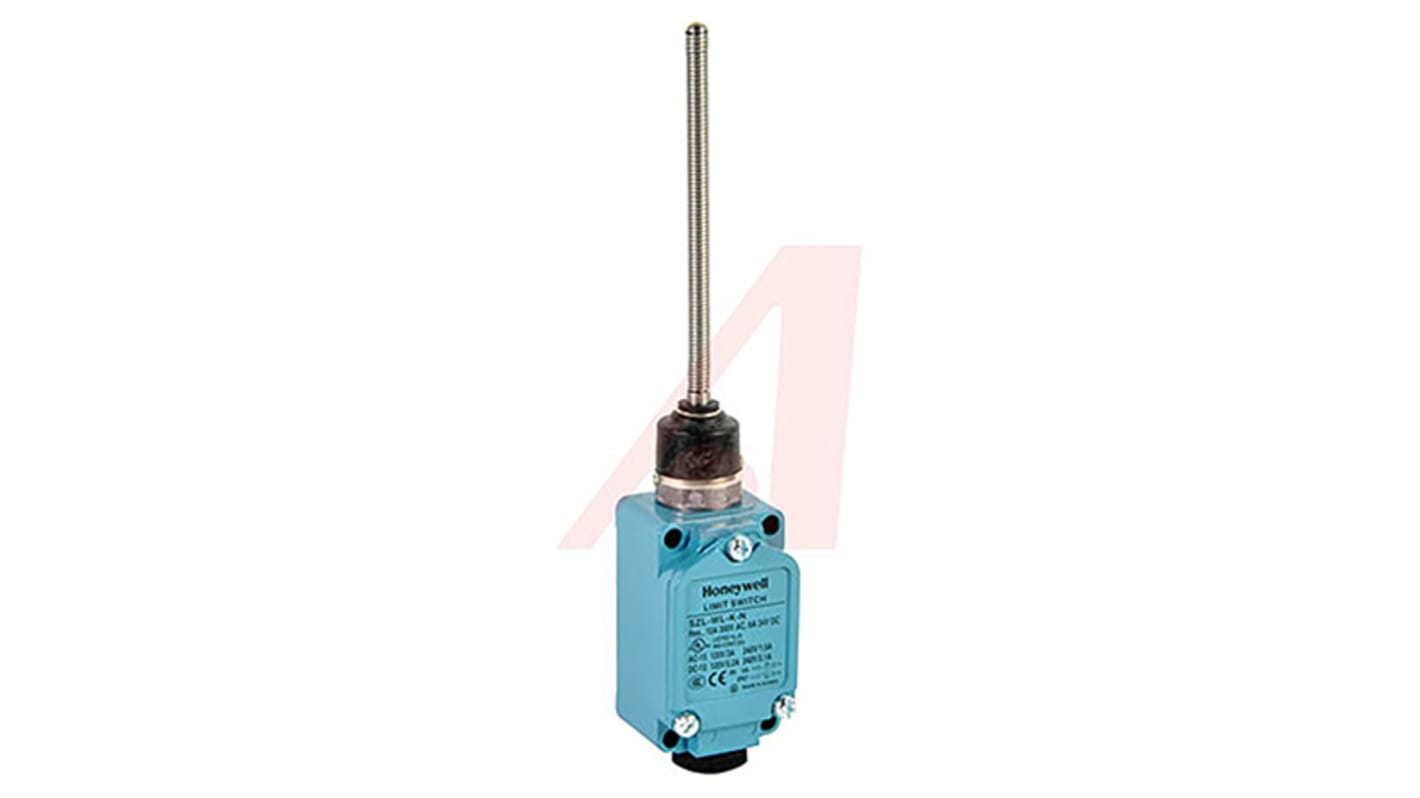

Honeywell SZL-WL Series Coil Spring Limit Switch, SPDT, IP67, Die Cast Aluminium Housing, 250 V ac, 10 A
- RS Stock No.:
- 821-1403
- Mfr. Part No.:
- SZL-WL-K-N
- Brand:
- Honeywell
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 821-1403
- Mfr. Part No.:
- SZL-WL-K-N
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Product Type | Limit Switch | |
| Actuator Type | Coil Spring | |
| IP Rating | IP67 | |
| Contact Configuration | SPDT | |
| Housing Material | Die Cast Aluminium | |
| Contact Type | Double Break | |
| Terminal Type | Screw | |
| Switching Current | 10 A | |
| Series | SZL-WL | |
| Switching AC Voltage | 250 V ac | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CE, CSA, RoHS, UL | |
| Length | 203.7mm | |
| Width | 40 mm | |
| Depth | 41.5mm | |
| Hazardous Area Certification | No | |
| Conduit Entry | 355.6 mm | |
| Mounting Orientation | Side | |
| Mechanical Life | 15000000Operations | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Product Type Limit Switch | ||
Actuator Type Coil Spring | ||
IP Rating IP67 | ||
Contact Configuration SPDT | ||
Housing Material Die Cast Aluminium | ||
Contact Type Double Break | ||
Terminal Type Screw | ||
Switching Current 10 A | ||
Series SZL-WL | ||
Switching AC Voltage 250 V ac | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CE, CSA, RoHS, UL | ||
Length 203.7mm | ||
Width 40 mm | ||
Depth 41.5mm | ||
Hazardous Area Certification No | ||
Conduit Entry 355.6 mm | ||
Mounting Orientation Side | ||
Mechanical Life 15000000Operations | ||
- COO (Country of Origin):
- KR
SZL-WL Series
SZL-WL series general purpose limit switches suitable for detecting objects in various applications such as conveyors & machine tools
Single pole double throw,double break
Set position indicator
High mechanical strength
Aluminium die-cast housing
Waterproof & dustproof construction
Approvals
UL, CSA, CE
