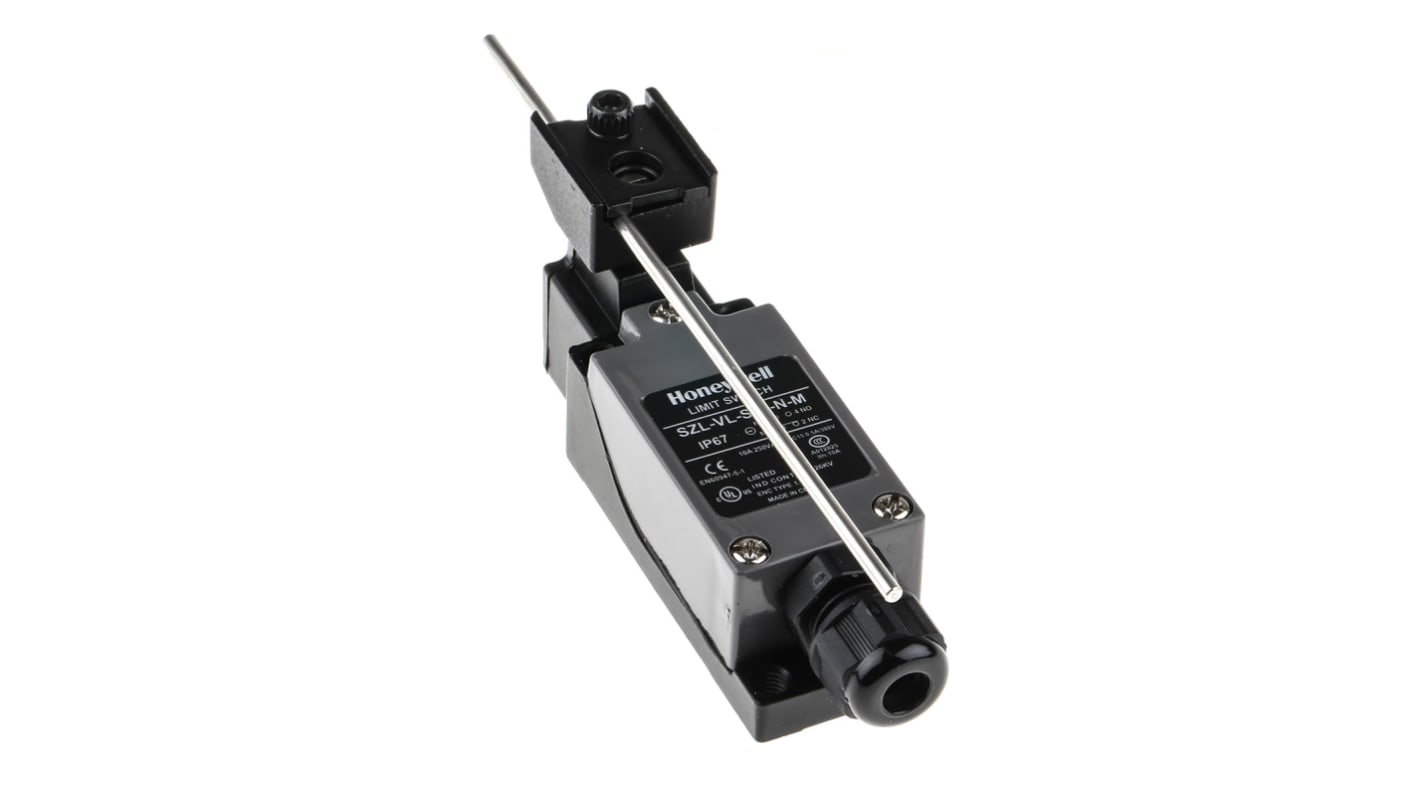

Honeywell SZL-VL Series Rod Limit Switch, NO/NC, IP67, SPDT, Metal Housing, 380V ac Max, 10A Max
- RS Stock No.:
- 144-8399
- Distrelec Article No.:
- 301-38-842
- Mfr. Part No.:
- SZL-VL-S-C-N-M
- Brand:
- Honeywell
Subtotal (1 unit)*
£46.37
(exc. VAT)
£55.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 118 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £46.37 |
*price indicative
- RS Stock No.:
- 144-8399
- Distrelec Article No.:
- 301-38-842
- Mfr. Part No.:
- SZL-VL-S-C-N-M
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Honeywell | |
Actuator Type | Rod | |
Pole and Throw Configuration | SPDT | |
Normal State Configuration | NO/NC | |
IP Rating | IP67 | |
Maximum Current | 10A | |
Housing Material | Metal | |
Maximum AC Voltage | 380V | |
Maximum DC Voltage | 220V | |
Connection Type | M12 | |
Series | SZL-VL | |
Action Type | Snap Action | |
Length | 28.5mm | |
Width | 129mm | |
Standards Met | CCC, CE, cULus | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -20°C | |
Depth | 46.7mm | |
Mounting Orientation | Front, Side | |
Mechanical Life | 10000000Cycles | |
Select all | ||
---|---|---|
Brand Honeywell | ||
Actuator Type Rod | ||
Pole and Throw Configuration SPDT | ||
Normal State Configuration NO/NC | ||
IP Rating IP67 | ||
Maximum Current 10A | ||
Housing Material Metal | ||
Maximum AC Voltage 380V | ||
Maximum DC Voltage 220V | ||
Connection Type M12 | ||
Series SZL-VL | ||
Action Type Snap Action | ||
Length 28.5mm | ||
Width 129mm | ||
Standards Met CCC, CE, cULus | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -20°C | ||
Depth 46.7mm | ||
Mounting Orientation Front, Side | ||
Mechanical Life 10000000Cycles | ||
- COO (Country of Origin):
- CN
Honeywell Limits SZL-VL-S Miniature Limit Switches
Honeywell SZL-VL-S series miniature limit switch are designed for use in applications where limited mounting space is available. These switches are designed for machinery that requires a rugged and reliable limit switch. Its design enhances ease of wiring with ample wiring space, and has an optional cable gland for faster and more efficient wiring termination.
The SZL-VL-S series switches have a split-housing design made of a diecast body and head with glass filled, flame-retardant thermoplastic cover. The cover is removable for easy access and ease of installation. Modular actuator head design allows for configurations to meet various application needs.
Features and Benefits
Sealed to IP67, NEMA 1, 12, 13
Snap-action contacts
Diecast metal housing with glass filled, flame-retardant thermoplastic cover
Variety of actuators
RoHS compliant
Mechanical life rating: 10 million cycles
Electrical life rating: 0.5 million cycles
Honeywell Limit Switch, M12 Connection, 220V DC Voltage Rating - SZL-VL-S Series - SZL-VL-S-C-N-M
Use this limit switch from Honeywell for position detection applications in your industrial environment. Its compact dimensions of 28.5 (length) x 129 (width) x 46.7mm (depth) make it suitable for installation in areas where space is limited. An IP67 rating means this unit is dust-tight and protected against immersion in 1m of water for up to 30 minutes, so it's suitable for use in harsh environments.
Features & Benefits
• Strong die-cast metal body for resistance to corrosion and impact
• Flame-retardant thermoplastic cover for safety in the event of a fire
• Long mechanical lifespan of up to 10 million cycles for long-lasting performance
• Flame-retardant thermoplastic cover for safety in the event of a fire
• Long mechanical lifespan of up to 10 million cycles for long-lasting performance
Applications
• Escalators and motorised walkways
• Conveyors
• Mobile light towers
• Conveyors
• Mobile light towers
What's the voltage rating of this limit switch?
This limit switch has a voltage rating of 380V AC and 220V DC, making it suitable for use in high-power applications.
