ABB LS30P11L20 Series Roller Lever Limit Switch, 2 NO, IP66, Zinc Alloy Housing, 380V ac, 415 V ac, 10A
- RS Stock No.:
- 259-6072
- Mfr. Part No.:
- 1SBV010211R1320
- Brand:
- ABB
Subtotal (1 unit)*
£23.17
(exc. VAT)
£27.80
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £23.17 |
*price indicative
- RS Stock No.:
- 259-6072
- Mfr. Part No.:
- 1SBV010211R1320
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Actuator Type | Roller Lever | |
| Product Type | Limit Switch | |
| IP Rating | IP66 | |
| Contact Configuration | 2 NO | |
| Housing Material | Zinc Alloy | |
| Contact Type | Simultaneous | |
| Switching Current | 10A | |
| Terminal Type | Screw Clamp | |
| Series | LS30P11L20 | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 380, 415V ac | |
| Switching DC Voltage | 250V dc | |
| Maximum Operating Temperature | 70°C | |
| Length | 73mm | |
| Standards/Approvals | IEC 68-2-3, IEC 68-2-11, IEC 60947-5-1, IEC 536, EN 50047 | |
| Width | 30mm | |
| Depth | 30mm | |
| Hazardous Area Certification | NO | |
| Operating Force | 9N | |
| Conduit Entry | Pg 13.5 Cable Gland | |
| Mechanical Life | 0Cycles | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Actuator Type Roller Lever | ||
Product Type Limit Switch | ||
IP Rating IP66 | ||
Contact Configuration 2 NO | ||
Housing Material Zinc Alloy | ||
Contact Type Simultaneous | ||
Switching Current 10A | ||
Terminal Type Screw Clamp | ||
Series LS30P11L20 | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 380, 415V ac | ||
Switching DC Voltage 250V dc | ||
Maximum Operating Temperature 70°C | ||
Length 73mm | ||
Standards/Approvals IEC 68-2-3, IEC 68-2-11, IEC 60947-5-1, IEC 536, EN 50047 | ||
Width 30mm | ||
Depth 30mm | ||
Hazardous Area Certification NO | ||
Operating Force 9N | ||
Conduit Entry Pg 13.5 Cable Gland | ||
Mechanical Life 0Cycles | ||
- COO (Country of Origin):
- IT
1SBV010211R1320

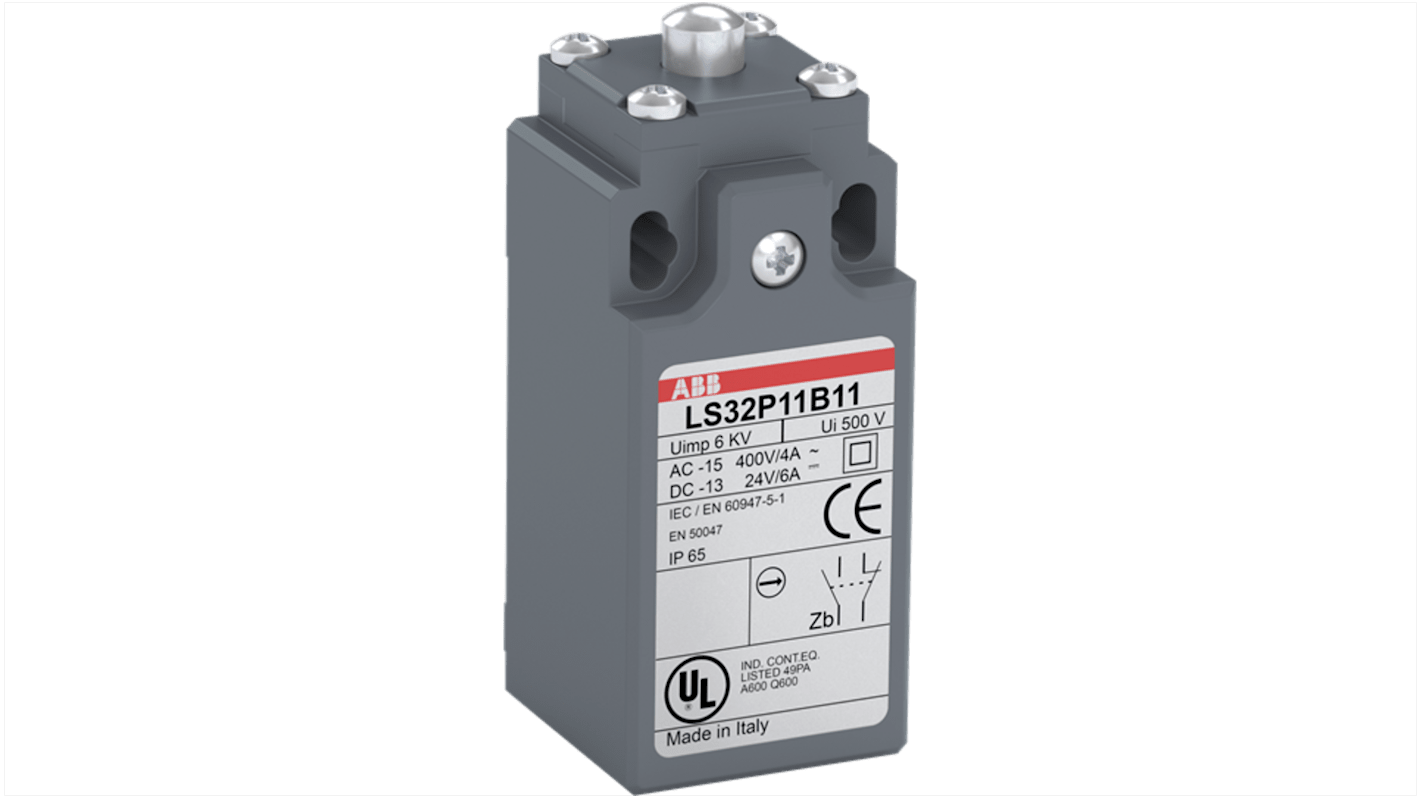

The ABB 30 mm wide standard limit switch is made of fibre-glass reinforced UL-V0 material with 2 mounting holes at the top. It has 1 Pg13.5 cable entry on the bottom, plain steel plunger actuator and 2 N.O slow action, simultaneous contacts.
30 millions operations B10d value
Degree of protection acc. to IEC 60529 IP65
