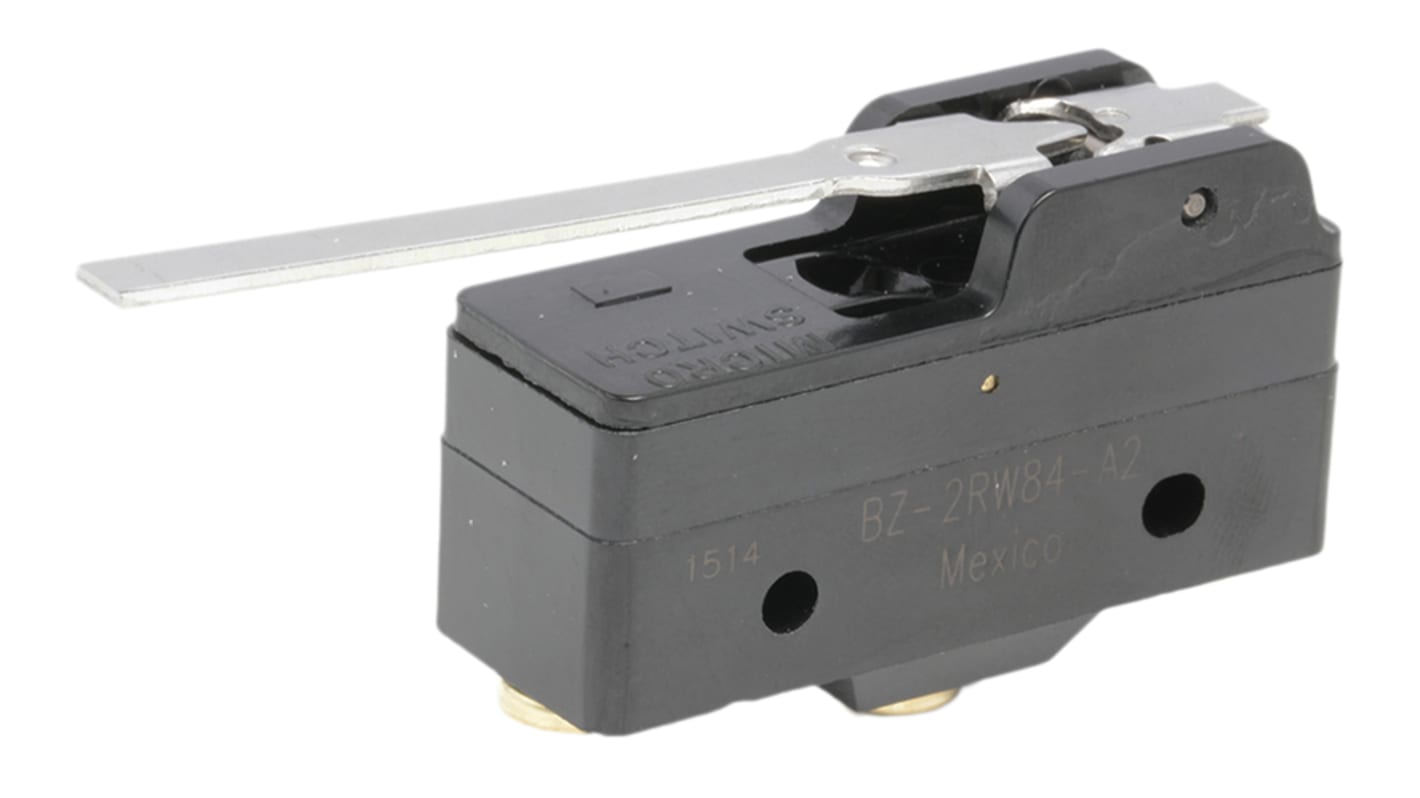

Honeywell BZ Series Straight Lever Limit Switch, SPDT, General Purpose Phenolic Housing, 125V ac, 15A

RS Stock No.:: 691-7216
Distrelec Article No.:: 301-38-677
Mfr. Part No.:: BZ-2RW84-A2
Brand:: Honeywell

Honeywell BZ Series Straight Lever Limit Switch, SPDT, General Purpose Phenolic Housing, 125V ac, 15A

Subtotal (1 unit)*

£18.76

(exc. VAT)

£22.51

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 57 unit(s) shipping from 04 May 2026
Plus 27 unit(s) shipping from 04 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£18.76

*price indicative

Upgrade to Honeywell HDLS Limit Switches

Rugged, reliable, and built for tough environments - Honeywell HDLS limit switches deliver long-lasting performance and precise actuation. A simple way to boost durability and reduce downtime.

Shop Here

RS Stock No.:: 691-7216
Distrelec Article No.:: 301-38-677
Mfr. Part No.:: BZ-2RW84-A2
Brand:: Honeywell

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Product Type	Limit Switch
	Actuator Type	Straight Lever
	Contact Configuration	SPDT
	Housing Material	General Purpose Phenolic
	Contact Type	Snap Action
	Switching Current	15A
	Terminal Type	Screw
	Series	BZ
	Switching AC Voltage	125V ac
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	85°C
	Width	1.94in
	Depth	0.68in
	Length	28.19mm
	Standards/Approvals	UL, RoHS, CSA
	Hazardous Area Certification	NO
	Mechanical Life	20000000Cycles
	Mounting Orientation	Side
	Operating Force	0.28N

	Select all
	Brand Honeywell
	Product Type Limit Switch
	Actuator Type Straight Lever
	Contact Configuration SPDT
	Housing Material General Purpose Phenolic
	Contact Type Snap Action
	Switching Current 15A
	Terminal Type Screw
	Series BZ
	Switching AC Voltage 125V ac
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 85°C
	Width 1.94in
	Depth 0.68in
	Length 28.19mm
	Standards/Approvals UL, RoHS, CSA
	Hazardous Area Certification NO
	Mechanical Life 20000000Cycles
	Mounting Orientation Side
	Operating Force 0.28N

Honeywell Series BZ Limit Switch, 15A Switching Current, 125V Switching AC Voltage - BZ-2RW84-A2

This limit switch provides a compact, mechanically actuated solution for detecting position and controlling circuits in industrial automation environments. It employs a lever-style actuator and a snap-action contact mechanism to deliver decisive state changes for control systems and safety interlocks. The device is designed for side mounting and connects via screw terminals, making it straightforward to integrate into electrical and mechanical assemblies.

Features and Benefits:

• Snap-action contacts provide Rapid switching and clear state transition
• Single-pole double-throw contact offers versatile circuit control
• Low actuation effort enables sensitive mechanical interfaces
• Rated for 15A at 125V AC to handle moderate power loads
• Very high mechanical endurance supports prolonged duty cycles

Applications

• Suitable for end-of-travel detection on pneumatic actuators
• Ideal for conveyor position sensing in material handling
• Used with control panels for machine safety interlocks
• Can be used for limit detection in packaging machinery
• Used for position feedback in automated assembly lines

What mounting orientation is required for installation?

It is intended for side mounting, which suits Compact panel or frame installations where lateral access to the actuator is available.

How does the Terminal style affect electrical connection?

Screw terminals permit secure, field-serviceable wiring and straightforward replacement without specialised connectors.

What environmental temperature range can it tolerate during operation?

The device operates reliably in environments from -55°C up to 85°C, allowing use in cold storage areas and moderately hot industrial spaces.

How long will the switch endure repetitive actuation cycles?

Mechanical life is specified at 20 million cycles, supporting applications with frequent, repetitive switching over long service periods.
