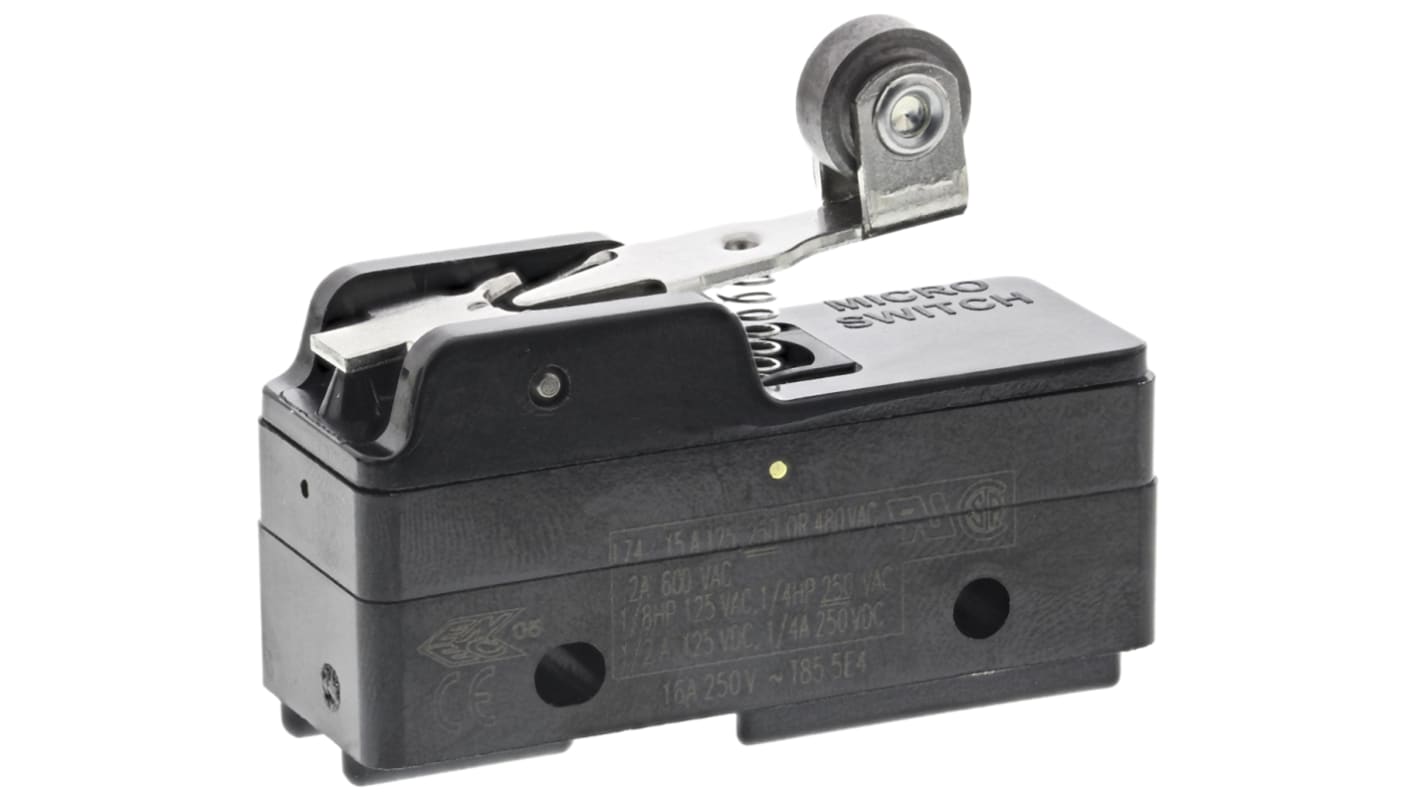

Honeywell BZ Series Roller Lever Limit Switch, SPDT, General Purpose Phenolic Housing, 250V ac, 1A, 25 A

RS Stock No.:: 691-7197
Distrelec Article No.:: 301-38-667
Mfr. Part No.:: BZ-2RW822
Brand:: Honeywell

Honeywell BZ Series Roller Lever Limit Switch, SPDT, General Purpose Phenolic Housing, 250V ac, 1A, 25 A

Subtotal (1 unit)*

£23.36

(exc. VAT)

£28.03

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

110 unit(s) ready to ship
Plus 20 unit(s) ready to ship from another location
Plus 36 unit(s) shipping from 22 May 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£23.36

*price indicative

Upgrade to Honeywell HDLS Limit Switches

Rugged, reliable, and built for tough environments - Honeywell HDLS limit switches deliver long-lasting performance and precise actuation. A simple way to boost durability and reduce downtime.

Shop Here

RS Stock No.:: 691-7197
Distrelec Article No.:: 301-38-667
Mfr. Part No.:: BZ-2RW822
Brand:: Honeywell

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Product Type	Limit Switch
	Actuator Type	Roller Lever
	Contact Configuration	SPDT
	Housing Material	General Purpose Phenolic
	Contact Type	Snap Action
	Terminal Type	Screw
	Switching Current	1, 25A
	Series	BZ
	Minimum Operating Temperature	-55°C
	Switching AC Voltage	250V ac
	Maximum Operating Temperature	85°C
	Width	1.94in
	Depth	0.68in
	Standards/Approvals	UL, RoHS, CSA
	Length	24.13mm
	Hazardous Area Certification	NO
	Mechanical Life	20000000Cycles
	Mounting Orientation	Side
	Operating Force	6N

	Select all
	Brand Honeywell
	Product Type Limit Switch
	Actuator Type Roller Lever
	Contact Configuration SPDT
	Housing Material General Purpose Phenolic
	Contact Type Snap Action
	Terminal Type Screw
	Switching Current 1, 25A
	Series BZ
	Minimum Operating Temperature -55°C
	Switching AC Voltage 250V ac
	Maximum Operating Temperature 85°C
	Width 1.94in
	Depth 0.68in
	Standards/Approvals UL, RoHS, CSA
	Length 24.13mm
	Hazardous Area Certification NO
	Mechanical Life 20000000Cycles
	Mounting Orientation Side
	Operating Force 6N

Honeywell Series BZ Limit Switch, 6N Operating Force, 250V Switching AC Voltage - BZ-2RW822

This limit switch is a Compact electromechanical device designed to detect position changes and initiate switching in industrial control systems. It employs a roller lever actuator to provide Rapid changeover in a single-pole, double-throw contact arrangement, making it suitable for automated machinery and control panels operating under a wide ambient temperature range.

Features and Benefits:

• Snap-action contact for swift, precise switching response
• Switching capacity up to 250V AC to handle mains-level signals
• Rated current range 1 to 25A to suit varied load requirements
• Mechanical endurance 20 million cycles for extended operational life
• Operating force 6 N to ensure consistent actuation thresholds
• Side mounting with screw terminals for secure installation

Applications

• Suitable for end-of-travel detection in conveyor systems
• Ideal for position sensing in assembly-line machinery
• Used with motor starters for limit-based shutdowns
• Can be used for safety interlocks on access panels
• Used for automated gate and door position feedback

What environmental temperatures can it reliably operate within?

It functions across a broad span from -55°C to 85°C, allowing use in cold stores and moderately hot plant rooms.

How is the device installed and wired in control cabinets?

It mounts from the side and accepts screw terminals for direct connection of control conductors without additional adaptors.

What materials contribute to its external durability?

The housing is moulded from a Durable plastic that provides Basic protection for internal mechanisms while keeping weight low.

Which approvals indicate suitability for regulated installations?

It carries UL and CSA recognitions and complies with RoHS requirements for restricted substances.
