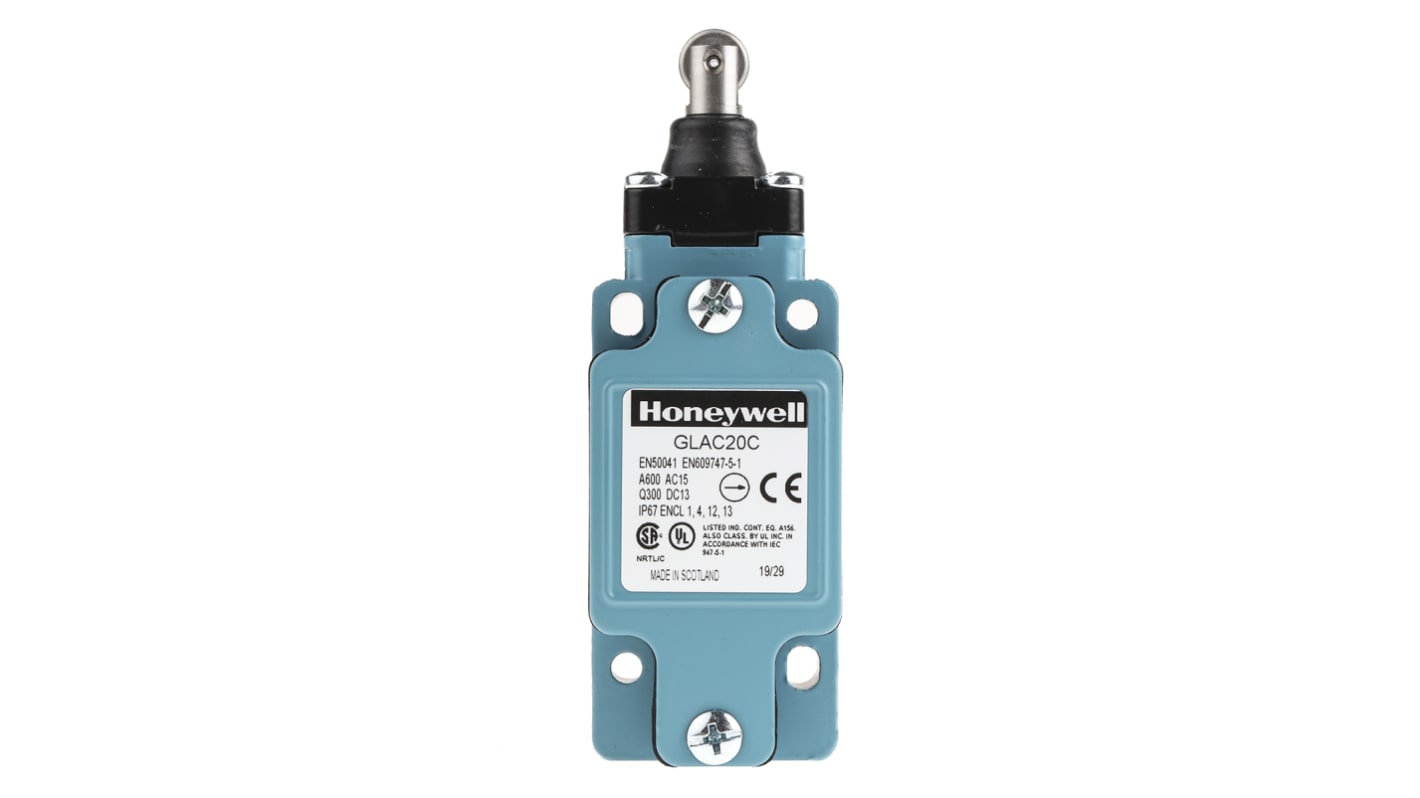

Honeywell GLA Series Plunger Limit Switch, 2NO/2NC, IP67, DPDT, Die Cast Zinc Housing, 600V ac Max, 10A Max
- RS Stock No.:
- 186-8166
- Mfr. Part No.:
- GLAC20C
- Brand:
- Honeywell
20 In stock - FREE next working day delivery available
Added
Price Each
£186.99
(exc. VAT)
£224.39
(inc. VAT)
Units | Per unit |
1 + | £186.99 |
- RS Stock No.:
- 186-8166
- Mfr. Part No.:
- GLAC20C
- Brand:
- Honeywell
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Honeywell Plunger Limit Switch, 2NO/2NC, M20 Connection - GLA Series - GLAC20C
Make or break your electrical connection with this Honeywell limit switch. It has an actuator head to trigger the circuit, a switch body that opens or closes the circuit and a terminal to wire up the switch. Thanks to its broad operating temperature range of -25°C to +85°C, it's a good choice for use in demanding environments. The three-component modular design is easy to dismantle for simple maintenance and repair. A plunger-type actuator like this one is generally used for short, controlled machine movements.
Features & Benefits
Snap-action contacts for rapid switching action
Die-cast zinc housing material is shock, vibration and corrosion-resistant for use in heavy-duty applications
Galvanically isolated contacts prevent interference between electrical currents
Long lifespan of up to 15 million mechanical operations for long-lasting use
Die-cast zinc housing material is shock, vibration and corrosion-resistant for use in heavy-duty applications
Galvanically isolated contacts prevent interference between electrical currents
Long lifespan of up to 15 million mechanical operations for long-lasting use
Applications
Mobile cranes
Automotive assembly lines
Railroad signalling equipment
Front loaders
Aerial lifts
Automotive assembly lines
Railroad signalling equipment
Front loaders
Aerial lifts
Can I use this limit switch in dusty or damp areas?
Yes, this limit switch's IP67 (ingress protection) rating means it's protected against dust and can withstand submersion in 1m of water for up to 30 minutes.
Approvals
UL; CSA
Approvals
UL/ UL listed for Canada
Specifications
Attribute | Value |
---|---|
Actuator Type | Plunger |
Pole and Throw Configuration | DPDT |
Normal State Configuration | 2NO/2NC |
IP Rating | IP67 |
Maximum Current | 10A |
Housing Material | Die Cast Zinc |
Maximum AC Voltage | 600V |
Maximum DC Voltage | 250V |
Connection Type | M20 |
Series | GLA |
Action Type | Snap Action |
Length | 82mm |
Width | 42mm |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -25°C |
Standards Met | CCC, CE, CSA, UL |
Depth | 42mm |
Mechanical Life | 15000000Operations |
Operating Force | 16 N |
Mounting Orientation | Side |
