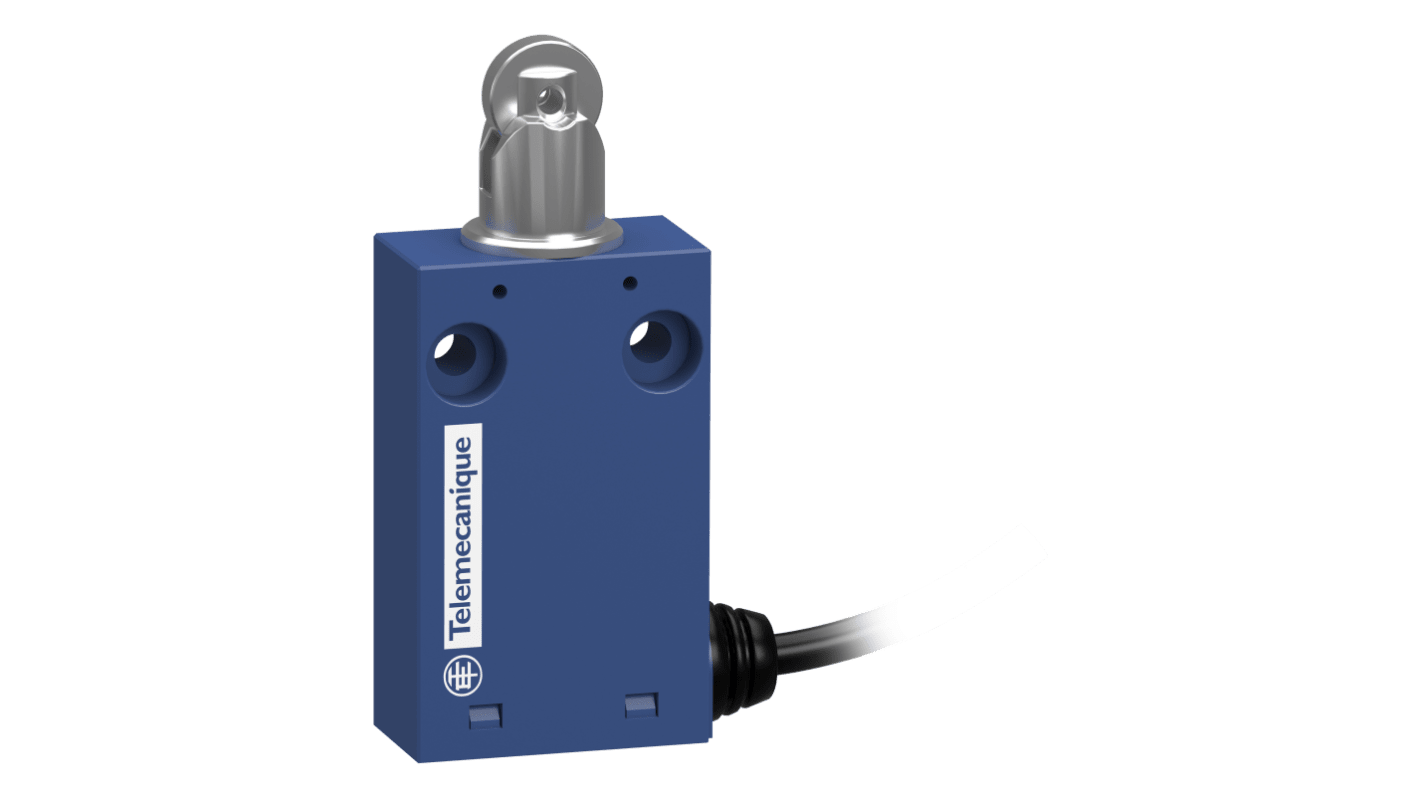

Telemecanique Sensors XCMH Series Roller Plunger Limit Switch, 1NO/1NC, IP66, IP67, 2P, Plastic Housing
- RS Stock No.:
- 194-165
- Mfr. Part No.:
- XCMH2102L2
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£36.97
(exc. VAT)
£44.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 40 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.97 |
*price indicative
- RS Stock No.:
- 194-165
- Mfr. Part No.:
- XCMH2102L2
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Actuator Type | Roller Plunger | |
| Pole and Throw Configuration | 2P | |
| Normal State Configuration | 1NO/1NC | |
| IP Rating | IP66, IP67 | |
| Housing Material | Plastic | |
| Connection Type | Cable | |
| Series | XCMH | |
| Length | 16mm | |
| Depth | 70.4mm | |
| Width | 30mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Actuator Type Roller Plunger | ||
Pole and Throw Configuration 2P | ||
Normal State Configuration 1NO/1NC | ||
IP Rating IP66, IP67 | ||
Housing Material Plastic | ||
Connection Type Cable | ||
Series XCMH | ||
Length 16mm | ||
Depth 70.4mm | ||
Width 30mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- ID
The Telemecanique Sensors Limit Switch features a fixed-body, miniature design with a rotary head made of plastic and Zamak. It has a spring return roller lever thermoplastic operator, rotary movement, and a lateral approach in two directions. It includes 1 NC + 1 NO contacts with snap action, suitable for standard limit switch applications.
Tracks 24 or 31 mm
Switch actuation by 30° cam
Electrical connection fixed cable
Cable length 1 m
Switch actuation by 30° cam
Electrical connection fixed cable
Cable length 1 m
