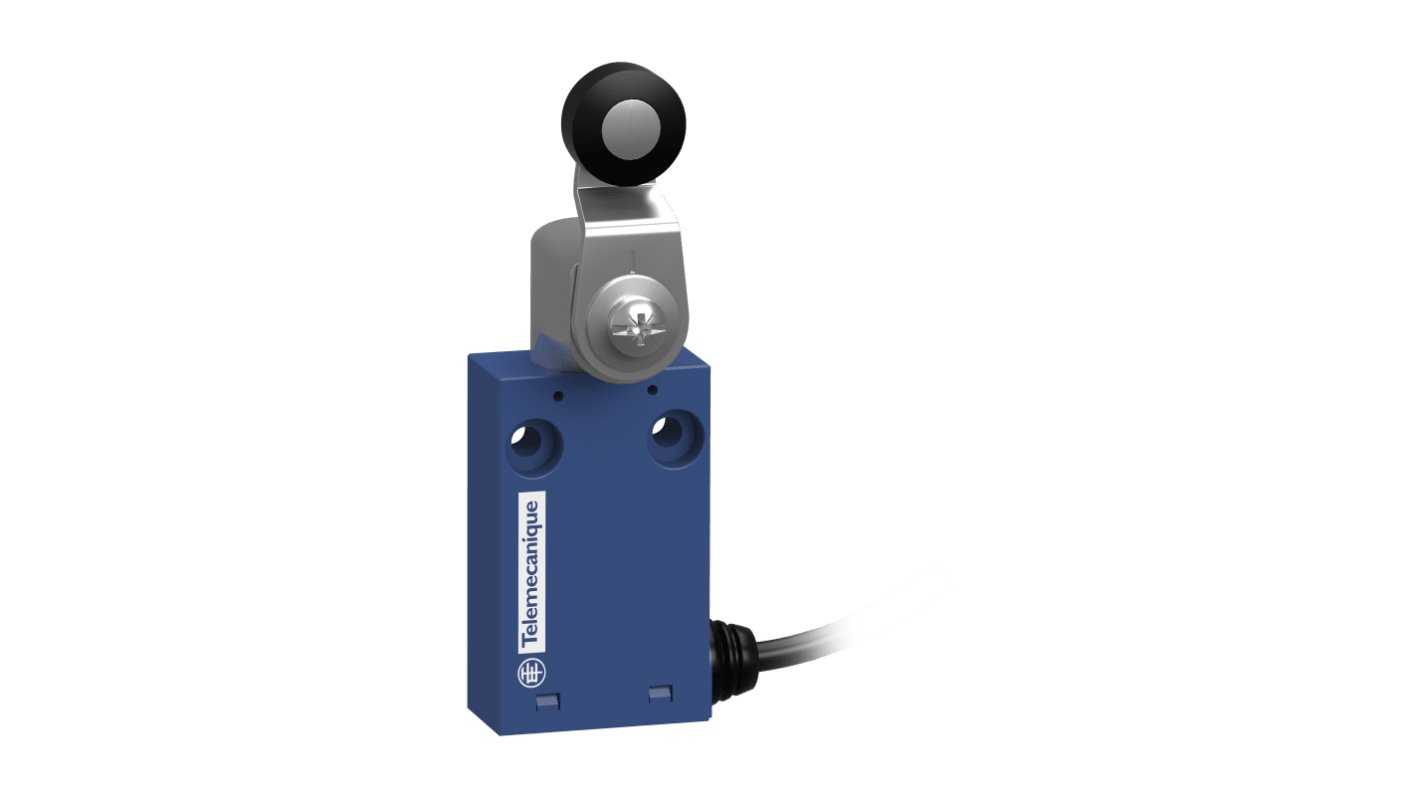

Telemecanique Sensors XCMH Series Roller Lever Limit Switch, 1 NO/1 NC, IP66, IP67, Plastic Housing, 240V ac, 0.75A

RS Stock No.:: 194-123
Mfr. Part No.:: XCMH2115L3
Brand:: Telemecanique Sensors

Telemecanique Sensors XCMH Series Roller Lever Limit Switch, 1 NO/1 NC, IP66, IP67, Plastic Housing, 240V ac, 0.75A

Subtotal (1 unit)*

£42.80

(exc. VAT)

£51.36

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 22 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£42.80

*price indicative

Precision Limit Switching You Can Rely On with XCMH Series

Designed for durability and precision, Telemecanique XCMH limit switches provide dependable position control in even the toughest environments. With rugged construction and versatile configurations, they ensure consistent performance and long-lasting reliability across your industrial applications.

Shop Here

RS Stock No.:: 194-123
Mfr. Part No.:: XCMH2115L3
Brand:: Telemecanique Sensors

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Actuator Type	Roller Lever
	Product Type	Limit Switch
	Contact Configuration	1 NO/1 NC
	IP Rating	IP66, IP67
	Housing Material	Plastic
	Contact Type	Snap Action
	Terminal Type	Cable
	Switching Current	0.75A
	Series	XCMH
	Switching AC Voltage	240V ac
	Minimum Operating Temperature	-25°C
	Switching DC Voltage	300V dc
	Maximum Operating Temperature	70°C
	Width	30mm
	Depth	94mm
	Standards/Approvals	UL 508 IEC 60204-1 IEC 60947-5-1 CSA C22.2 No 14
	Length	16mm
	Hazardous Area Certification	No
	Operating Force	0.5N
	Mechanical Life	5000000Cycles
	Conduit Entry	M20

	Select all
	Brand Telemecanique Sensors
	Actuator Type Roller Lever
	Product Type Limit Switch
	Contact Configuration 1 NO/1 NC
	IP Rating IP66, IP67
	Housing Material Plastic
	Contact Type Snap Action
	Terminal Type Cable
	Switching Current 0.75A
	Series XCMH
	Switching AC Voltage 240V ac
	Minimum Operating Temperature -25°C
	Switching DC Voltage 300V dc
	Maximum Operating Temperature 70°C
	Width 30mm
	Depth 94mm
	Standards/Approvals UL 508 IEC 60204-1 IEC 60947-5-1 CSA C22.2 No 14
	Length 16mm
	Hazardous Area Certification No
	Operating Force 0.5N
	Mechanical Life 5000000Cycles
	Conduit Entry M20

Datasheet - XCMH2115L3

COO (Country of Origin):: ID

Telemecanique Sensors XCMH Series Limit Switch, IP66/IP67 Ingress Protection, 0.5 N Operating Force - XCMH2115L3

This limit switch is a compact, roller-lever actuated device designed to detect and signal mechanical positions in industrial control systems. It operates across typical factory ambient temperatures and connects via an integrated cable outlet for straightforward installation. The unit is intended for applications requiring defined electrical switching at low currents and voltages within enclosed or exposed locations.

Features and Benefits:

• Snap-action contacts for quick, positive switching at low force
• 0.5N operating force minimises actuation effort and wear
• 300V DC and 240V AC switching capability supports diverse circuits
• 0.75A rated current enables safe low-current control loops
• M20 conduit entry simplifies secure cable routing and sealing
• Mechanical life of 5,000,000 cycles reduces maintenance frequency

Applications

• Used for position detection on conveyor end-stops
• Suitable for control panels in washdown environments
• Ideal for verifying door or gate travel limits
• Can be used for interlock sensing on machinery guards
• Used with small motor starters and control relays

What materials are used for the enclosure to resist ingress?

The housing is made from a durable plastic formulation engineered to limit particulate and water entry to IP66 and IP67 levels.

How are the electrical connections provided for integration?

Electrical termination is via a factory-fitted cable outlet, eliminating the need for separate terminal blocks.

What contact arrangement does the switch provide for control logic?

The internal contacts are arranged as one normally open and one normally closed with snap-action behaviour for reliable changeover.

What temperature range can the switch operate within reliably?

The device is specified to function between -25°C and 70°C for typical industrial ambient conditions.
