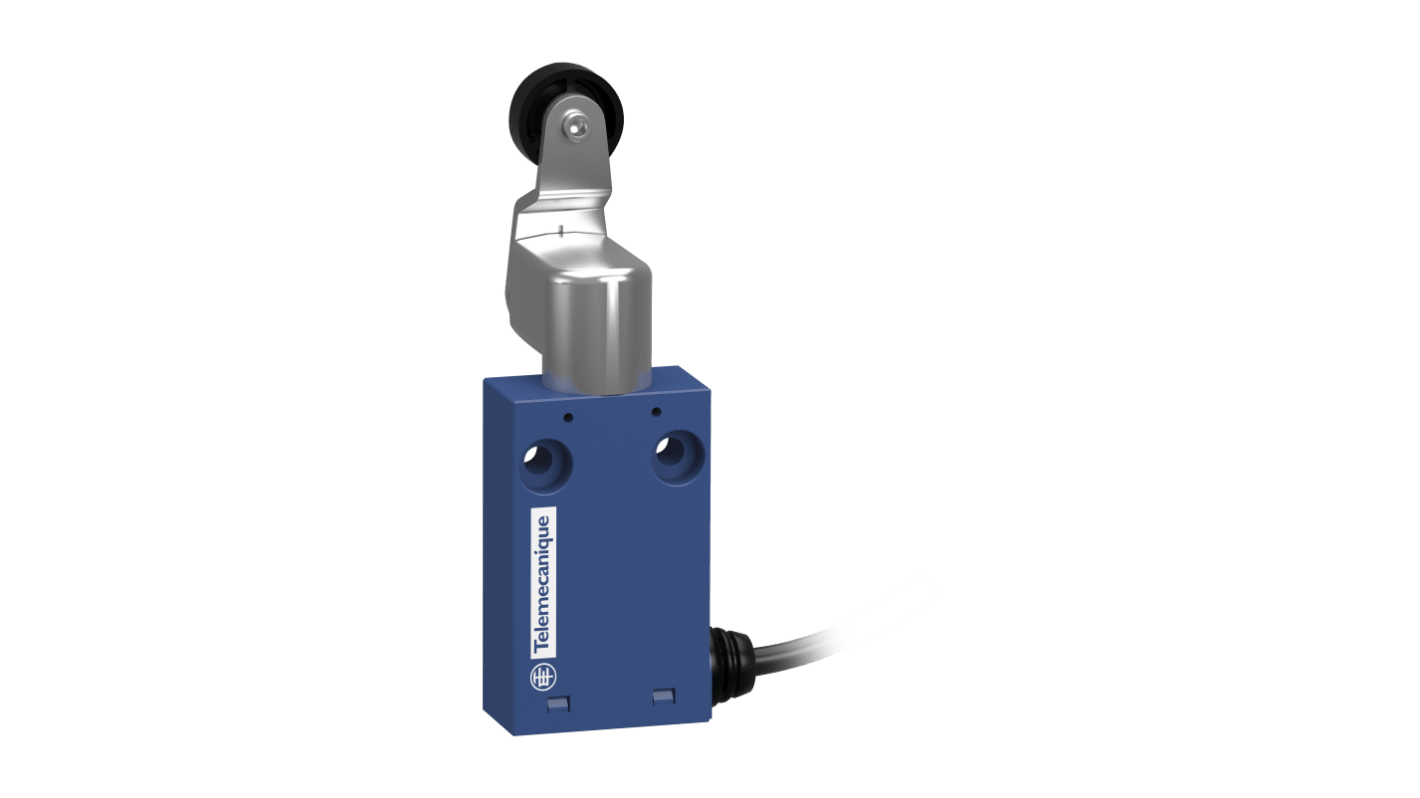

Telemecanique Sensors XCMH Series Roller Lever Limit Switch, 1 NO/1 NC, IP67, IP66, Plastic Housing, 240V ac, 0.75A

RS Stock No.:: 194-104
Mfr. Part No.:: XCMH2115L1L0
Brand:: Telemecanique Sensors

Telemecanique Sensors XCMH Series Roller Lever Limit Switch, 1 NO/1 NC, IP67, IP66, Plastic Housing, 240V ac, 0.75A

Subtotal (1 unit)*

£39.20

(exc. VAT)

£47.04

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 12 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£39.20

*price indicative

Precision Limit Switching You Can Rely On with XCMH Series

Designed for durability and precision, Telemecanique XCMH limit switches provide dependable position control in even the toughest environments. With rugged construction and versatile configurations, they ensure consistent performance and long-lasting reliability across your industrial applications.

Shop Here

RS Stock No.:: 194-104
Mfr. Part No.:: XCMH2115L1L0
Brand:: Telemecanique Sensors

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Actuator Type	Roller Lever
	Product Type	Limit Switch
	Contact Configuration	1 NO/1 NC
	IP Rating	IP67, IP66
	Housing Material	Plastic
	Contact Type	Snap Action
	Terminal Type	Cable
	Switching Current	0.75A
	Series	XCMH
	Switching DC Voltage	300V dc
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	240V ac
	Maximum Operating Temperature	70°C
	Standards/Approvals	IEC 60204-1 UL 508 CSA C22.2 No 14 IEC 60947-5-1
	Length	1m
	Width	30mm
	Depth	16mm
	Hazardous Area Certification	No
	Mechanical Life	5000000Cycles
	Operating Force	0.5N
	Conduit Entry	M20

	Select all
	Brand Telemecanique Sensors
	Actuator Type Roller Lever
	Product Type Limit Switch
	Contact Configuration 1 NO/1 NC
	IP Rating IP67, IP66
	Housing Material Plastic
	Contact Type Snap Action
	Terminal Type Cable
	Switching Current 0.75A
	Series XCMH
	Switching DC Voltage 300V dc
	Minimum Operating Temperature -25°C
	Switching AC Voltage 240V ac
	Maximum Operating Temperature 70°C
	Standards/Approvals IEC 60204-1 UL 508 CSA C22.2 No 14 IEC 60947-5-1
	Length 1m
	Width 30mm
	Depth 16mm
	Hazardous Area Certification No
	Mechanical Life 5000000Cycles
	Operating Force 0.5N
	Conduit Entry M20

Datasheet - XCMH2115L1L0

COO (Country of Origin):: ID

Telemecanique Sensors XCMH Series Limit Switch, IP67 Ingress Protection, 5000000 Cycles Mechanical Life - XCMH2115L1L0

This limit switch is a compact industrial actuator designed to detect mechanical position changes using a roller lever. It is intended for enclosure-mounted sensing where a resilient, low-force actuation is required, and it operates reliably across a wide ambient temperature range.

Features and Benefits:

• Snap-action contacts deliver fast switching with positive break
• Cable termination with M20 entry simplifies conduit connection
• Operates at 0.5 N to allow sensitive actuation with minimal load
• Rated for 300V DC and 240V AC switching to suit diverse circuits
• Mechanical life of 5,000,000 cycles supports long-term duty
• IP67 / IP66 protection enables use in wet and dusty environments

Applications

• Suitable for conveyor end-of-travel sensing in factories
• Ideal for guarding and safety interlocks on machinery
• Used with automated doors and gates for position detection
• Can be used for material handling stops and limit detection
• Suitable for light-duty motor control and sequencing tasks

What contact arrangements are available for switching logic?

It provides one normally open and one normally closed contact for simple changeover control.

How does the unit perform under electrical load?

The contacts are rated to switch currents up to 0.75A and handle DC voltages to 300V DC and AC voltages to 240V AC.

What are the environmental operating limits for reliable function?

It operates between -25 °C and 70 °C while resisting ingress from dust and water to IP67/IP66 levels.

What materials and construction affect field mounting and durability?

The enclosure is moulded from plastic and uses a roller lever actuator to reduce wear under repetitive cycling.
