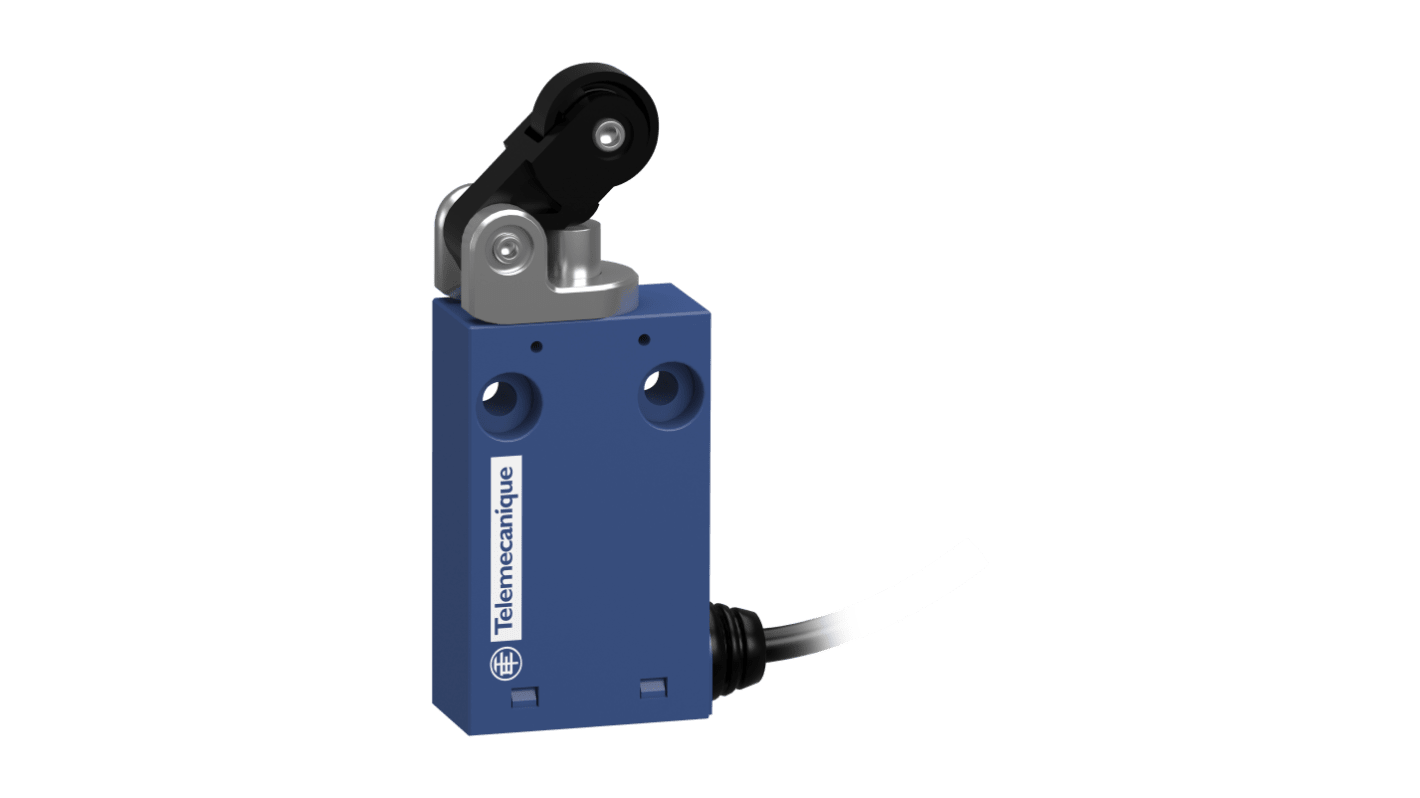

Telemecanique Sensors XCMH Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66, IP67, Plastic Housing, 240V ac, 0.75A

RS Stock No.:: 194-144
Mfr. Part No.:: XCMH2121L2
Brand:: Telemecanique Sensors

Telemecanique Sensors XCMH Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66, IP67, Plastic Housing, 240V ac, 0.75A

Subtotal (1 unit)*

£41.70

(exc. VAT)

£50.04

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

17 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£41.70

*price indicative

Precision Limit Switching You Can Rely On with XCMH Series

Designed for durability and precision, Telemecanique XCMH limit switches provide dependable position control in even the toughest environments. With rugged construction and versatile configurations, they ensure consistent performance and long-lasting reliability across your industrial applications.

Shop Here

RS Stock No.:: 194-144
Mfr. Part No.:: XCMH2121L2
Brand:: Telemecanique Sensors

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Actuator Type	Roller Plunger
	Product Type	Limit Switch
	Contact Configuration	1 NO/1 NC
	IP Rating	IP66, IP67
	Housing Material	Plastic
	Contact Type	Snap Action
	Switching Current	0.75A
	Terminal Type	Cable
	Series	XCMH
	Switching AC Voltage	240V ac
	Minimum Operating Temperature	-25°C
	Switching DC Voltage	250V dc
	Maximum Operating Temperature	70°C
	Standards/Approvals	CSA C22.2 No 14, IEC 60204-1, IEC 60947-5-1, UL 508
	Width	30mm
	Depth	79mm
	Length	16mm
	Hazardous Area Certification	No
	Mechanical Life	5000000Cycles
	Operating Force	12.5N

	Select all
	Brand Telemecanique Sensors
	Actuator Type Roller Plunger
	Product Type Limit Switch
	Contact Configuration 1 NO/1 NC
	IP Rating IP66, IP67
	Housing Material Plastic
	Contact Type Snap Action
	Switching Current 0.75A
	Terminal Type Cable
	Series XCMH
	Switching AC Voltage 240V ac
	Minimum Operating Temperature -25°C
	Switching DC Voltage 250V dc
	Maximum Operating Temperature 70°C
	Standards/Approvals CSA C22.2 No 14, IEC 60204-1, IEC 60947-5-1, UL 508
	Width 30mm
	Depth 79mm
	Length 16mm
	Hazardous Area Certification No
	Mechanical Life 5000000Cycles
	Operating Force 12.5N

Datasheet - XCMH2121L2

COO (Country of Origin):: ID

Telemecanique Sensors XCMH Series Limit Switch, IP66/IP67 Ingress Protection, 0.75A Switching Current - XCMH2121L2

This limit switch is a compact electromechanical device designed to detect position and actuate control circuits in industrial machinery. Fitted with a roller plunger actuator, it provides rapid changeover of electrical contacts for automated systems and is suited to harsh environments where ingress protection and temperature range are factors.

Features and Benefits:

• Snap-action contacts enable rapid make/break switching for control circuits
• 1NO1NC contact arrangement offers flexible signalling and safety wiring
• 250V DC switching capability supports DC control voltage applications
• 0.75A rated switching current handles low-power signal loads
• Mechanical life of 5,000,000 cycles reduces replacement frequency
• 12.5N operating force balances sensitivity and actuation robustness

Applications

• Suitable for conveyor end-of-travel detection in factory lines
• Used with safety interlocks on access panels and guards
• Ideal for position sensing in packaging equipment
• Can be used for limit detection on machine slide systems
• Used for feedback signalling in material-handling devices

What type of electrical connection does it use?

It is provided with a cable terminal for direct wiring into control harnesses.

How does the construction cope with dust and water exposure?

The enclosure meets IP66 and IP67 ratings to resist dust ingress and withstand temporary immersion.

What temperatures can it operate within reliably?

The unit functions across an ambient range from -25°C up to 70°C.

Which standards govern its design and safety characteristics?

It conforms to IEC 60947-5-1, IEC 60204-1, CSA C22.2 No. 14 and UL 508.
