Telemecanique Sensors XCMH Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66, IP67, Plastic Housing, 240V, 0.75A
- RS Stock No.:
- 194-093
- Mfr. Part No.:
- XCMH2102L8
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£58.68
(exc. VAT)
£70.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £58.68 |
*price indicative
- RS Stock No.:
- 194-093
- Mfr. Part No.:
- XCMH2102L8
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Actuator Type | Roller Plunger | |
| Product Type | Limit Switch | |
| IP Rating | IP66, IP67 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Plastic | |
| Contact Type | Snap Action | |
| Switching Current | 0.75A | |
| Terminal Type | Cable | |
| Series | XCMH | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 240V | |
| Switching DC Voltage | 300V dc | |
| Maximum Operating Temperature | 70°C | |
| Width | 30mm | |
| Standards/Approvals | CSA C22.2 No 14 IEC 60947-5-1 UL 508 IEC 60204-1 | |
| Depth | 70.4mm | |
| Length | 16mm | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 5000000Cycles | |
| Conduit Entry | M20 | |
| Operating Force | 35N | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Actuator Type Roller Plunger | ||
Product Type Limit Switch | ||
IP Rating IP66, IP67 | ||
Contact Configuration 1 NO/1 NC | ||
Housing Material Plastic | ||
Contact Type Snap Action | ||
Switching Current 0.75A | ||
Terminal Type Cable | ||
Series XCMH | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 240V | ||
Switching DC Voltage 300V dc | ||
Maximum Operating Temperature 70°C | ||
Width 30mm | ||
Standards/Approvals CSA C22.2 No 14 IEC 60947-5-1 UL 508 IEC 60204-1 | ||
Depth 70.4mm | ||
Length 16mm | ||
Hazardous Area Certification NO | ||
Mechanical Life 5000000Cycles | ||
Conduit Entry M20 | ||
Operating Force 35N | ||
- COO (Country of Origin):
- ID

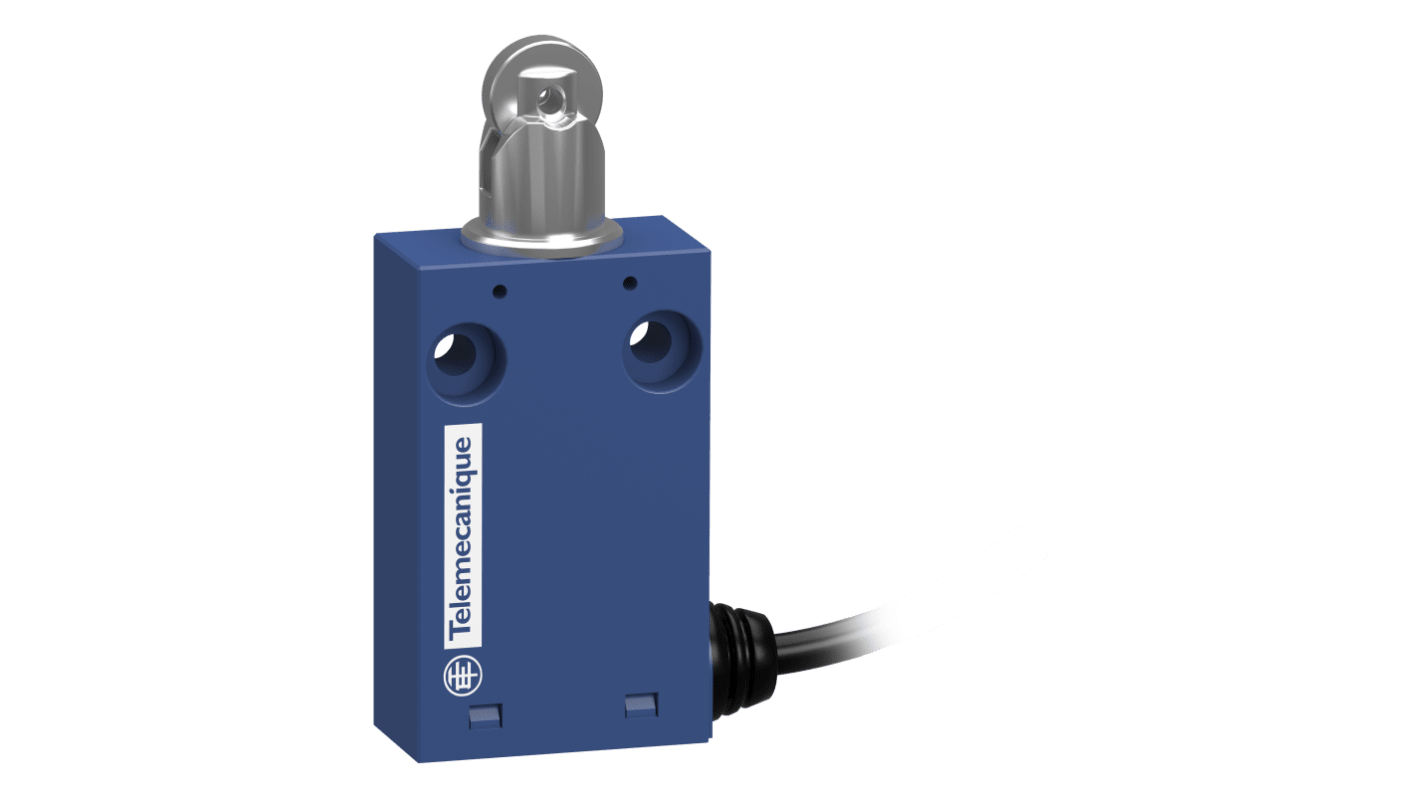

The Telemecanique Sensors Limit Switch comes with a plastic body and a metal roller plunger head. Designed for precise motion control, it offers snap action contacts. Its robust build ensures durability for industrial applications.
Linear movement by the body
Positive opening with a minimum force of 35 N
Spring return metal roller plunger
