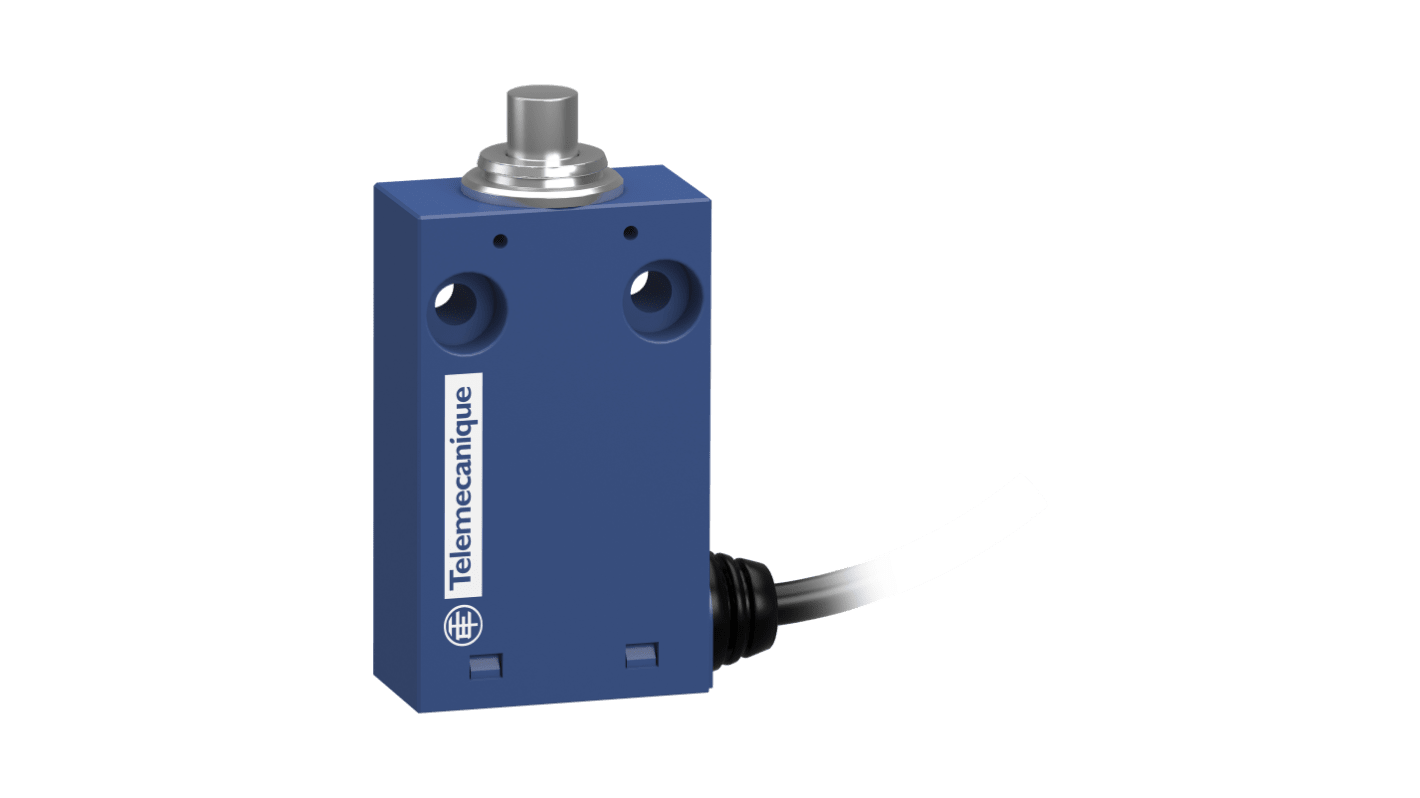

Telemecanique Sensors XCMH Series Plunger Limit Switch, 1 NO/1 NC, IP66, IP67, Plastic Housing, 240V ac, 0.75A
- RS Stock No.:
- 194-153
- Mfr. Part No.:
- XCMH2110L2
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£35.90
(exc. VAT)
£43.08
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 32 unit(s) shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £35.90 |
*price indicative
- RS Stock No.:
- 194-153
- Mfr. Part No.:
- XCMH2110L2
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Limit Switch | |
| Actuator Type | Plunger | |
| IP Rating | IP66, IP67 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Plastic | |
| Contact Type | Snap Action | |
| Terminal Type | Cable | |
| Switching Current | 0.75A | |
| Series | XCMH | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 240V ac | |
| Switching DC Voltage | 250V dc | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CSA C22.2 No 14, IEC 60204-1, IEC 60947-5-1, UL 508 | |
| Width | 30mm | |
| Length | 16mm | |
| Depth | 60mm | |
| Hazardous Area Certification | No | |
| Operating Force | 42.5N | |
| Mechanical Life | 5000000Cycles | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Limit Switch | ||
Actuator Type Plunger | ||
IP Rating IP66, IP67 | ||
Contact Configuration 1 NO/1 NC | ||
Housing Material Plastic | ||
Contact Type Snap Action | ||
Terminal Type Cable | ||
Switching Current 0.75A | ||
Series XCMH | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 240V ac | ||
Switching DC Voltage 250V dc | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CSA C22.2 No 14, IEC 60204-1, IEC 60947-5-1, UL 508 | ||
Width 30mm | ||
Length 16mm | ||
Depth 60mm | ||
Hazardous Area Certification No | ||
Operating Force 42.5N | ||
Mechanical Life 5000000Cycles | ||
- COO (Country of Origin):
- ID
Telemecanique Sensors XCMH Series Limit Switch, IP66/IP67 Ingress Protection, 0.75A Switching Current - XCMH2110L2
This limit switch is a compact actuation device designed to detect mechanical position changes via a plunger actuator and provide electrical switching for control circuits in industrial settings. It is suited to environments requiring ingress protection and a moderate temperature range, delivering snap-action contact switching for straightforward integration with control panels and machinery.
Features and Benefits:
• 5,000,000 cycles mechanical life ensures long operational duty
• IP66/IP67 rating resists dust ingress and heavy water exposure
• 1NO/1NC snap action gives distinct make-and-break contact performance
• 0.75A switching current supports low-power control loads
• 42.5 N operating force provides a predictable actuation threshold
• Cable termination simplifies direct wiring to control systems
• IP66/IP67 rating resists dust ingress and heavy water exposure
• 1NO/1NC snap action gives distinct make-and-break contact performance
• 0.75A switching current supports low-power control loads
• 42.5 N operating force provides a predictable actuation threshold
• Cable termination simplifies direct wiring to control systems
Applications
• Suitable for conveyor end-of-travel detection in factories
• Ideal for door interlock sensing on equipment enclosures
• Used with low-current relay inputs in control panels
• Can be used for position feedback on automated gates
• Appropriate for machinery where plunger actuation is required
• Ideal for door interlock sensing on equipment enclosures
• Used with low-current relay inputs in control panels
• Can be used for position feedback on automated gates
• Appropriate for machinery where plunger actuation is required
What voltages can the switch handle for control circuits?
It is rated to switch up to 250V DC and 240V AC for compatible control circuits.
How does the contact arrangement support circuit design?
The single normally open and normally closed contacts allow both make and break signalling without additional relays for basic logic.
What environmental temperatures can it endure during operation?
The device operates between -25 °C and 70 °C, suitable for many indoor and sheltered outdoor installations.
What approvals support its use in industrial equipment?
It conforms to standards including CSA C22.2 No. 14, IEC 60204-1, IEC 60947-5-1 and UL 508 for recognised industrial use.
