TE Connectivity SlimSeal Connector Miniature Series Miniature, 3-Pole, Male, 3-Way, Cable Mount, 5A, IP67
- RS Stock No.:
- 134-8767
- Mfr. Part No.:
- 1-2834074-3
- Brand:
- TE Connectivity
Available to back order for despatch 30/09/2024
Added
Price Each (In a Pack of 5)
£1.13
(exc. VAT)
£1.36
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £1.13 | £5.65 |
| 25 - 45 | £0.978 | £4.89 |
| 50 - 95 | £0.878 | £4.39 |
| 100 + | £0.788 | £3.94 |
| *price indicative | ||
- RS Stock No.:
- 134-8767
- Mfr. Part No.:
- 1-2834074-3
- Brand:
- TE Connectivity
Legislation and Compliance
Product Details

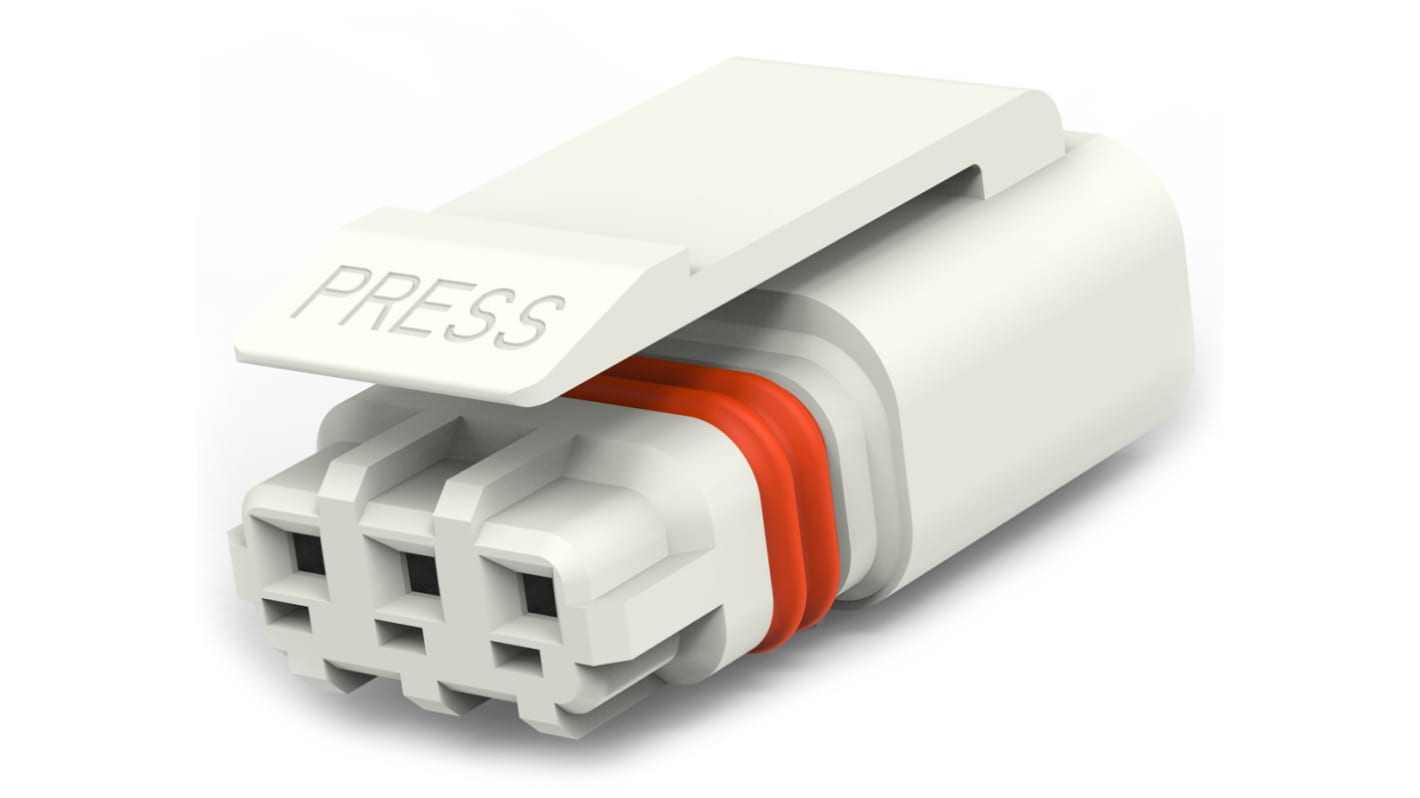

TE Connectivty SlimSeal IP67 Cable Mount Plugs
From TE Connectivity, a series of miniature sealed wire to wire connectors from the Slimseal family. These IP67 compact connectors have a tough thermoplastic housing and a rubber seal making them suitable for the harshest environments. The wire to wire sealed connectors feature a press to release spring latch ensuring a secure mating function. The male and female connectors are available in two and three pole formats and three different colours for easy identification.
Features and Benefits
• Compact design
• Sealed to IP67 when mated
• Easy assembly identification with three colour options
• Pre-assembled seals saving valuable assembly time
• Press to release spring latch system
• Wide operating temperature range -40°C to +105°C
• Sealed to IP67 when mated
• Easy assembly identification with three colour options
• Pre-assembled seals saving valuable assembly time
• Press to release spring latch system
• Wide operating temperature range -40°C to +105°C
Applications
• Outdoor lighting
• Commercial refrigeration lighting
• HVAC equipment
• Kitchen appliances
• Commercial refrigeration lighting
• HVAC equipment
• Kitchen appliances
Lighting Connectors
Specifications
Attribute | Value |
|---|---|
| Pole Format | 3 |
| Series | SlimSeal Connector Miniature |
| Gender | Male |
| Number of Ways | 3 |
| Plug/Socket | Plug |
| Colour | White |
| Type | Miniature |
| Mounting Type | Cable Mount |
| Current Rating | 5A |
| Voltage Rating | 400 V ac |
| IP Rating | IP67 |
| Wire Size | 22 → 18 AWG |
| Contact Plating | Tin |
| Termination Method | Crimp |
| Contact Material | Copper Alloy |
