Osram 35 W Electronic Fluorescent Lighting Ballast, 220 → 240 V
- RS Stock No.:
- 873-5079
- Mfr. Part No.:
- 4008321971234
- Brand:
- Osram
1 In stock - FREE next working day delivery available
13 available from Europe for delivery within 2 working day(s).
Price Each
£13.06
(exc. VAT)
£15.67
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £13.06 |
- RS Stock No.:
- 873-5079
- Mfr. Part No.:
- 4008321971234
- Brand:
- Osram
Technical Reference
Legislation and Compliance
Product Details

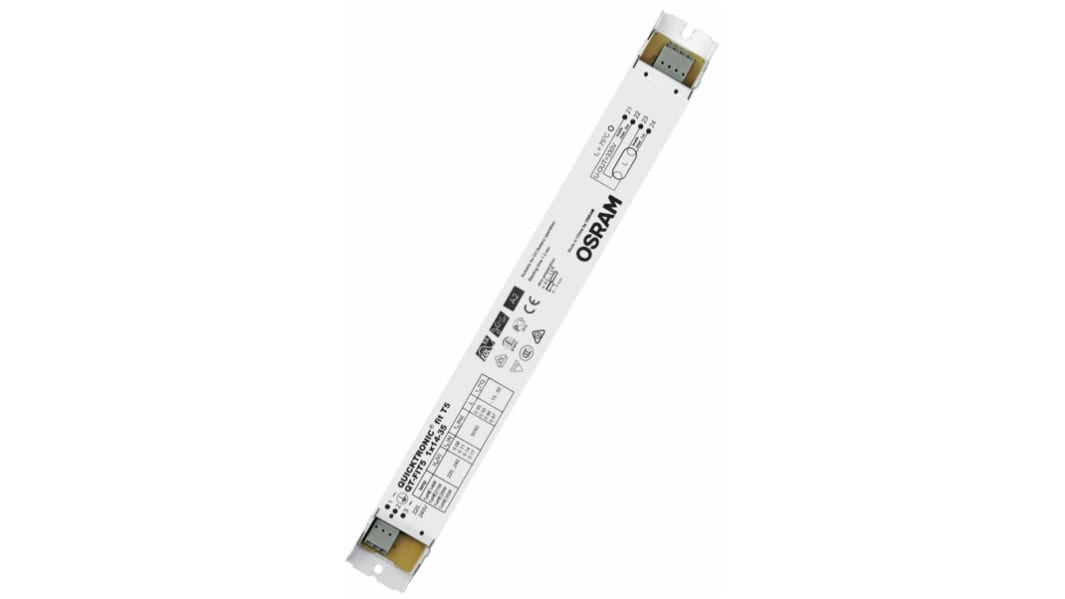

QUICKTRONIC FIT Electronic Control Gear
The Osram Quicktronic FIT 5 is an electronic control gear for fluorescent lamps. This ECG guarantees a long lamp life and is not affected by frequent on/off switching. The Quicktronic FIT 5 is the perfect electronic ballast for use with motion sensor lighting. This Osram ECG has very high energy efficiency, thanks to its cut-off technology.
Ideal applications for the Quicktronic FIT 5 ECG are in emergency lighting systems, offices, corridors, storage rooms, public buildings, strip lighting and modernization of existing systems.
Ideal applications for the Quicktronic FIT 5 ECG are in emergency lighting systems, offices, corridors, storage rooms, public buildings, strip lighting and modernization of existing systems.
Long lamp life
No adverse effect from frequent on/off switching
Automatic restart after lamp replacement
Perfect lamp start for applications with motion sensors
Very high energy efficiency due to cut-off technology
Supply voltage: 220-240V
Line voltage: 198-264V
Line frequency: 50 Hz | 60 Hz
Lamp start with optimum filament preheating
Energy Efficiency Index EEI: A2
Automatic shutdown of defective lamps and at end of life
No adverse effect from frequent on/off switching
Automatic restart after lamp replacement
Perfect lamp start for applications with motion sensors
Very high energy efficiency due to cut-off technology
Supply voltage: 220-240V
Line voltage: 198-264V
Line frequency: 50 Hz | 60 Hz
Lamp start with optimum filament preheating
Energy Efficiency Index EEI: A2
Automatic shutdown of defective lamps and at end of life
Specifications
Attribute | Value |
|---|---|
| Wattage | 35 W |
| Ballast Type | Electronic |
| Supported Lamp Shape | T5 |
| Supported Lamp Type | Fluorescent |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| Length | 280 mm |
| Width | 30 mm |
| Height | 21mm |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +50°C |
| Series | QUICKTRONIC |
