Osram 1 55 W Electronic Fluorescent Lighting Ballast, 220 → 240 V
- RS Stock No.:
- 191-7738
- Mfr. Part No.:
- 4008321537041
- Brand:
- Osram 1
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 191-7738
- Mfr. Part No.:
- 4008321537041
- Brand:
- Osram 1
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Osram 1 | |
| Wattage | 55 W | |
| Ballast Type | Electronic | |
| Supported Lamp Type | Fluorescent | |
| Voltage Rating | 220 → 240 V | |
| Length | 103 mm | |
| Width | 67 mm | |
| Height | 31mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +50°C | |
Select all | ||
|---|---|---|
Brand Osram 1 | ||
Wattage 55 W | ||
Ballast Type Electronic | ||
Supported Lamp Type Fluorescent | ||
Voltage Rating 220 → 240 V | ||
Length 103 mm | ||
Width 67 mm | ||
Height 31mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +50°C | ||
- COO (Country of Origin):
- BG

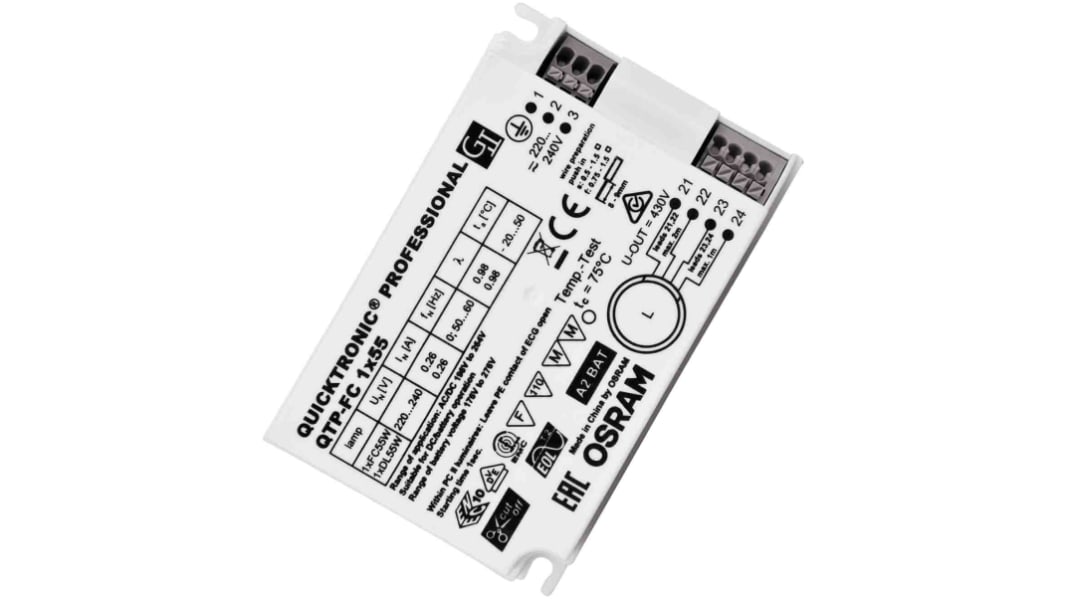

Osram Quicktronic Professional Optimal Lighting Ballast
Introducing the Quicktronic Professional lighting ballast from Osram, this is an electronic control gear (ECG) for circular fluorescent lamps. Using an ECG can guarantee a long lamp life and isn't affected by constant switching on and off. Can be used in emergency lighting systems as well as office lighting, public buildings with luminaries. Cut-off technology that it uses can not only prolong the life of the lamp but reduces the cost for maintenance and has very high energy efficiency. The Quicktronic is the perfect electronic ballast for the use with motion-sensing lights.
Features and Benefits
No effects from constant switching on and off
Helps to prolong the life of the lamp
Supply Voltage of 220-240V
Energy Efficiency Index (EEI): A2
Very high energy efficiency
Automatic shutdown of defective lamps or end of life
Helps to prolong the life of the lamp
Supply Voltage of 220-240V
Energy Efficiency Index (EEI): A2
Very high energy efficiency
Automatic shutdown of defective lamps or end of life
Typical Applications
Lighting ballasts aid the initial start-up of fluorescent and compact fluorescent lamps, as they can provide it with the correct voltage and running of the lamp. These can be used in:
Offices
Factories
Warehouses
Public buildings
Modernisation of existing systems
Factories
Warehouses
Public buildings
Modernisation of existing systems
Standards
EN 60929
EN 61347-2-3
EN 61347-2-3
