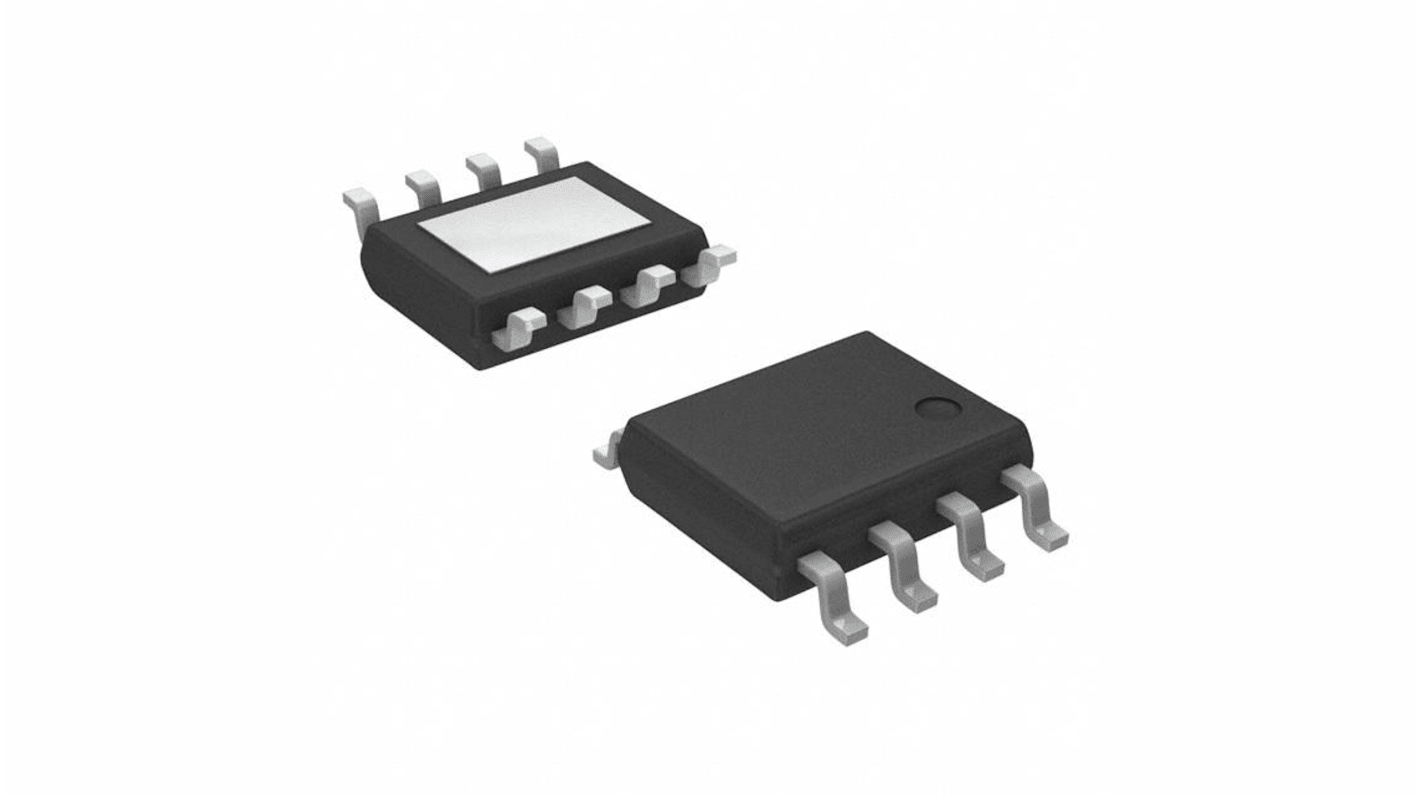

DiodesZetex AL8822SP-13 LED Driver IC, 5 → 36 V 8-Pin SO
- RS Stock No.:
- 246-7425
- Mfr. Part No.:
- AL8822SP-13
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 pack of 25 units)*
£8.025
(exc. VAT)
£9.625
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,450 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
25 - 25 | £0.321 | £8.03 |
50 - 75 | £0.315 | £7.88 |
100 - 225 | £0.223 | £5.58 |
250 - 975 | £0.218 | £5.45 |
1000 + | £0.158 | £3.95 |
*price indicative
- RS Stock No.:
- 246-7425
- Mfr. Part No.:
- AL8822SP-13
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | DiodesZetex | |
Input Voltage | 5 → 36 V | |
AC or DC Input Voltage | dc | |
Dimming Operation | Leading Edge, Trailing Edge | |
Package Type | SO | |
Number of Pins | 8 | |
Select all | ||
---|---|---|
Brand DiodesZetex | ||
Input Voltage 5 → 36 V | ||
AC or DC Input Voltage dc | ||
Dimming Operation Leading Edge, Trailing Edge | ||
Package Type SO | ||
Number of Pins 8 | ||
The DiodesZetex AL8822 is a boost converter that delivers an accurate constant current for MR16 and similar LED Lamps. With proprietary control scheme, the LED driver is compatible with many commonly used electronic transformers and provides designs with high power Factor (PF) and low Total Harmonic Distortion (THD) for these applications. The operation frequency is up to 1MHz that allows the use of a small size inductor. With the package of SO-8EP, the AL8822 has small package size, small thermal resistance and can be used for wide range of output power. The driver can be used for dimmable MR16 application and can be compatible with leading-edge dimmer and trailing-edge dimmer.
Wide input voltage range of 5V to 36V Internal 50V NDMOS switches Up to 1MHz switching frequency Multiple internal protections like Under voltage Lock Out (UVLO), Output Open protection and over Temperature protection (OTP)
