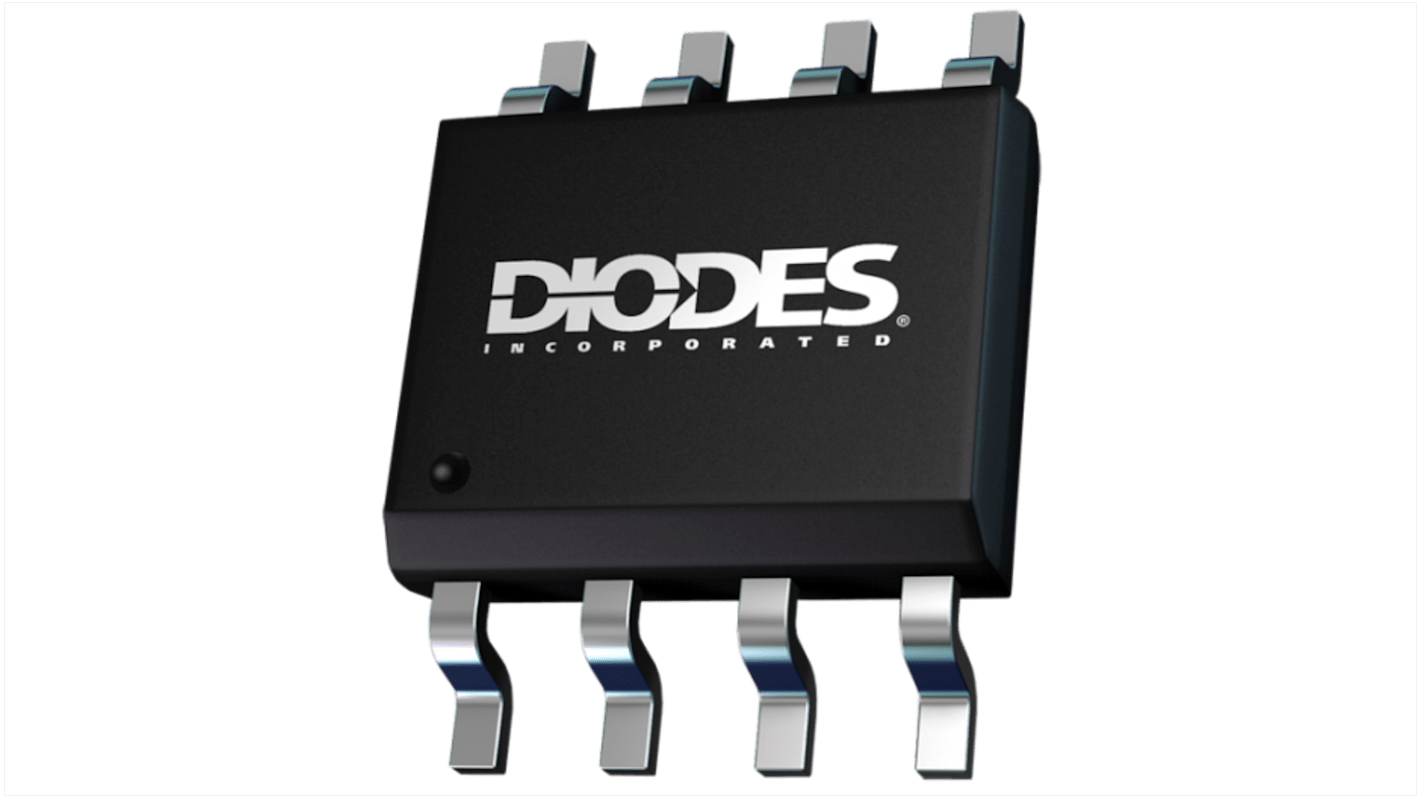

DiodesZetex AL6562AS-13 LED Driver IC, 10.3/20 V 8-Pin SOIC
- RS Stock No.:
- 246-7422
- Mfr. Part No.:
- AL6562AS-13
- Brand:
- DiodesZetex
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£4.70
(exc. VAT)
£5.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,460 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.47 | £4.70 |
| 50 - 90 | £0.459 | £4.59 |
| 100 - 240 | £0.36 | £3.60 |
| 250 - 990 | £0.334 | £3.34 |
| 1000 + | £0.228 | £2.28 |
*price indicative
- RS Stock No.:
- 246-7422
- Mfr. Part No.:
- AL6562AS-13
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | LED Driver IC | |
| Input Voltage Type | AC | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Number of Pins | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 1.75mm | |
| Series | AL6562A | |
| Standards/Approvals | RoHS | |
| Length | 4.95mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type LED Driver IC | ||
Input Voltage Type AC | ||
Mount Type Surface | ||
Package Type SOIC | ||
Number of Pins 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Height 1.75mm | ||
Series AL6562A | ||
Standards/Approvals RoHS | ||
Length 4.95mm | ||
Automotive Standard No | ||
The DiodesZetex AL6562A is a current mode power Factor Correction Controller and is designed for operating in Transition Mode. With a superior linear performance multiplier, it ensures the device operates over a wide input voltage range with superior THD (Total Harmonics Distortion). The output voltage is controlled by means of an error amplifier and a precise (1% @ TJ = +25°C) internal voltage reference. The AL6562A is designed to meet stringent energizing standards with low start-up current, and can operate with low current consumption when entering stand-by mode.
single stage PFC controller, transition mode operation Low start-up, Operating and Quiescent currents Internal start-up Timer Enable/Disable Function on INV input Totem Pole, Push-pull output drive
