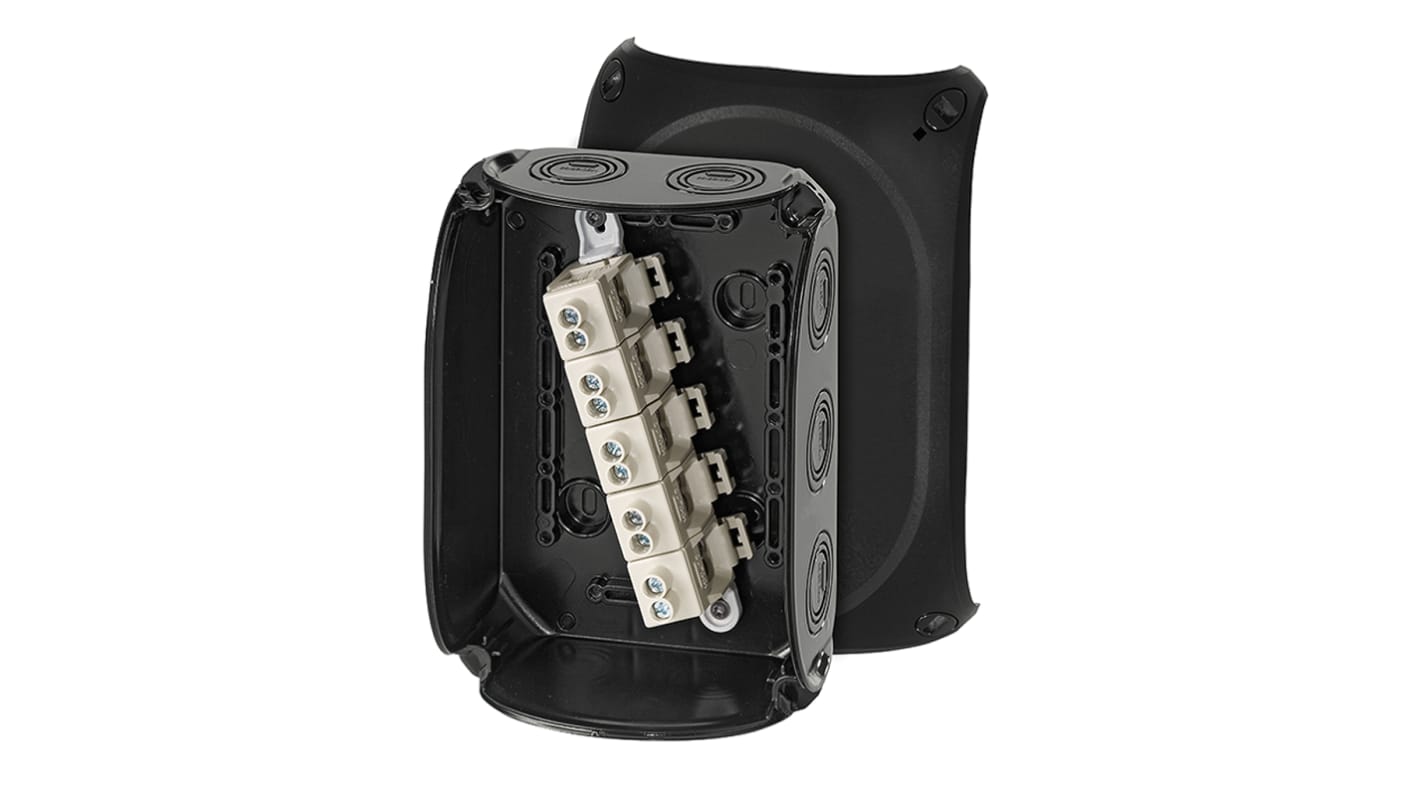

HENSEL KF Series Black Polycarbonate Terminal Box, IP66, IP67, IP69, 5 Terminals, 77 x 180 x 130mm
- RS Stock No.:
- 276-5469
- Mfr. Part No.:
- KF 1010 B
- Brand:
- HENSEL
1 In stock - FREE next working day delivery available
Added
Price Each
£33.76
(exc. VAT)
£40.51
(inc. VAT)
| Units | Per unit |
| 1 + | £33.76 |
- RS Stock No.:
- 276-5469
- Mfr. Part No.:
- KF 1010 B
- Brand:
- HENSEL
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
2.5-10 mm², Cu 3∼
Terminal with 2 clamping units per pole
5-pole per pole 6 x 2.5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 4 x 10 mm² r / f, 2 x 16 mm² s / f
With two cable entries M 25 from the rear side
Cable entries via knockouts, order ASS separately (see cable entry systems LES)
"Weatherproof" resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
Saltwater-proof
"Offshore applications"
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
Colour: black, RAL 9011
Terminal with 2 clamping units per pole
5-pole per pole 6 x 2.5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 4 x 10 mm² r / f, 2 x 16 mm² s / f
With two cable entries M 25 from the rear side
Cable entries via knockouts, order ASS separately (see cable entry systems LES)
"Weatherproof" resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
Saltwater-proof
"Offshore applications"
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
Colour: black, RAL 9011
Specifications
Attribute | Value |
|---|---|
| Dimensions L x W x H | 77 x 180 x 130mm |
| Material | Polycarbonate |
| Length | 77mm |
| Width | 130mm |
| Height | 130mm |
| IP Rating | IP66, IP67, IP69 |
| Number of Terminals | 5 |
| Colour | Black |
| Current Rating | 63A |
| Series | KF |
