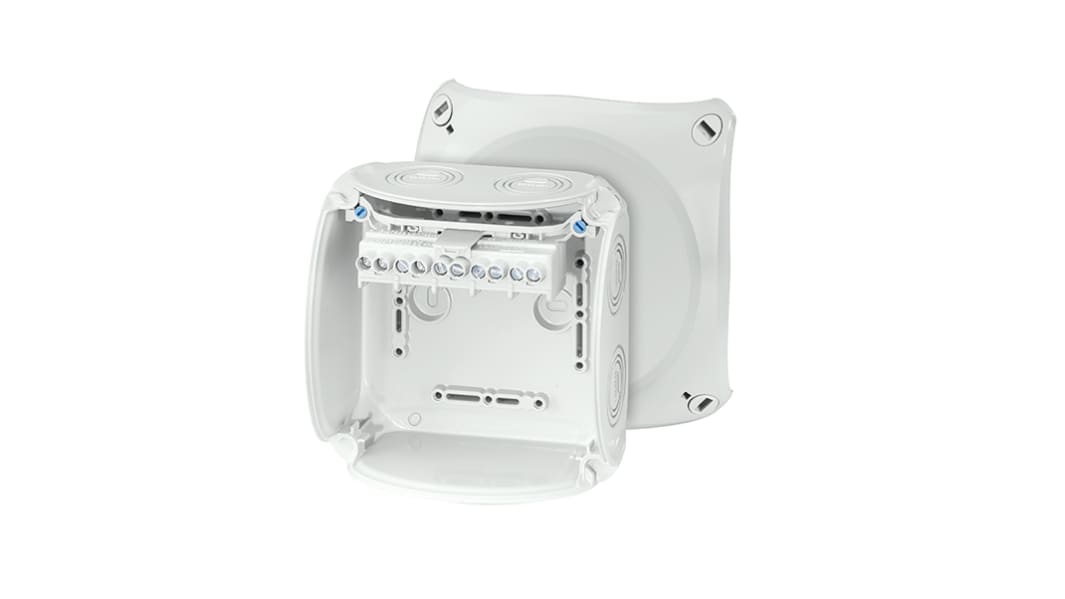

HENSEL KF Series Grey Polycarbonate Terminal Box, IP66, IP67, IP69, 5 Terminals, 77 x 130 x 130mm
- RS Stock No.:
- 276-5465
- Mfr. Part No.:
- KF 0606 G
- Brand:
- HENSEL
Subtotal (1 unit)*
£27.34
(exc. VAT)
£32.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £27.34 |
*price indicative
- RS Stock No.:
- 276-5465
- Mfr. Part No.:
- KF 0606 G
- Brand:
- HENSEL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | HENSEL | |
Dimensions L x W x H | 77 x 130 x 130mm | |
Material | Polycarbonate | |
Length | 77mm | |
Width | 130mm | |
Height | 130mm | |
IP Rating | IP66, IP67, IP69 | |
Number of Terminals | 5 | |
Colour | Grey | |
Current Rating | 40A | |
Series | KF | |
Select all | ||
---|---|---|
Brand HENSEL | ||
Dimensions L x W x H 77 x 130 x 130mm | ||
Material Polycarbonate | ||
Length 77mm | ||
Width 130mm | ||
Height 130mm | ||
IP Rating IP66, IP67, IP69 | ||
Number of Terminals 5 | ||
Colour Grey | ||
Current Rating 40A | ||
Series KF | ||
- COO (Country of Origin):
- DE
1.5-6 mm², Cu 3∼
Terminal with 2 clamping units per pole
5-pole per pole 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 2 x 10 mm² r / f
With one cable entry M 25 from the rear side
Cable entries via knockouts, order AKM glands separately (see cable entry systems LES)
"Weatherproof" resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
Saltwater-proof
"Offshore applications"
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
Terminal with 2 clamping units per pole
5-pole per pole 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 2 x 10 mm² r / f
With one cable entry M 25 from the rear side
Cable entries via knockouts, order AKM glands separately (see cable entry systems LES)
"Weatherproof" resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
Saltwater-proof
"Offshore applications"
Lid fasteners sealable without accessories
Retaining strap and external brackets for wall fixing included
