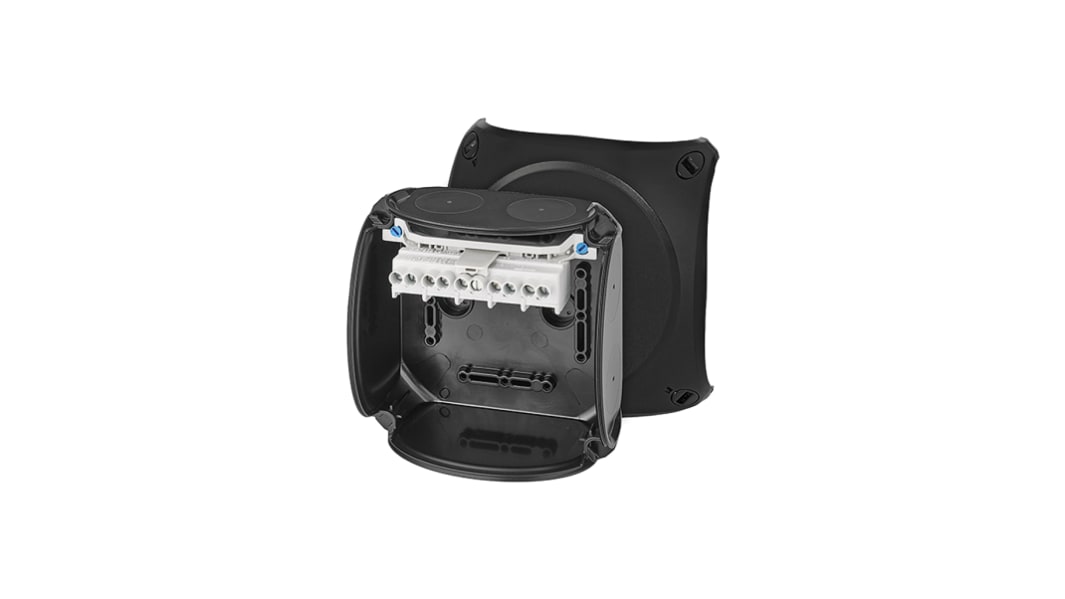

HENSEL KX 0606 C Series Black Polycarbonate Terminal Box, IP66, 5 Terminals, DIN EN 60079-31, DIN EN IEC 60079-7, IEC
- RS Stock No.:
- 276-5443
- Mfr. Part No.:
- KX 0606 C
- Brand:
- HENSEL
Subtotal (1 unit)*
£106.79
(exc. VAT)
£128.15
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 27 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £106.79 |
*price indicative
- RS Stock No.:
- 276-5443
- Mfr. Part No.:
- KX 0606 C
- Brand:
- HENSEL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HENSEL | |
| Length | 77mm | |
| Width | 130 mm | |
| Product Type | Terminal Box | |
| Material | Polycarbonate | |
| Height | 130mm | |
| IP Rating | IP66 | |
| Number of Terminals | 5 | |
| Colour | Black | |
| Hazardous Area Certification | DIN EN 60079-31, DIN EN IEC 60079-7, IEC 60670-22, DIN EN IEC 60079-1 | |
| Number of Ways | 5 | |
| Cable Entry | M20 to M32 | |
| Standards/Approvals | DIN EN IEC 60079-1, IEC 60670-22, DIN EN IEC 60079-7, DIN EN 60079-31 | |
| Series | KX 0606 C | |
| Select all | ||
|---|---|---|
Brand HENSEL | ||
Length 77mm | ||
Width 130 mm | ||
Product Type Terminal Box | ||
Material Polycarbonate | ||
Height 130mm | ||
IP Rating IP66 | ||
Number of Terminals 5 | ||
Colour Black | ||
Hazardous Area Certification DIN EN 60079-31, DIN EN IEC 60079-7, IEC 60670-22, DIN EN IEC 60079-1 | ||
Number of Ways 5 | ||
Cable Entry M20 to M32 | ||
Standards/Approvals DIN EN IEC 60079-1, IEC 60670-22, DIN EN IEC 60079-7, DIN EN 60079-31 | ||
Series KX 0606 C | ||
- COO (Country of Origin):
- DE
1.5-6 mm², Cu 3∼
Terminal with 2 clamping units per pole
5-pole per pole 6 x 1,5 mm² r / f, 4 x 2,5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 2 x 10 mm² r / f
Nominal current of the terminal depending on conductor cross section. See instruction manual or www.hensel-electric.de > Products
For hazardous areas, can be used in Zone 2 and Zone 22
"Weatherproof" resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
Cable entries can be drilled individually, order AXM glands separately (see cable entry systems LES)
Permitted size of the cable entry system: M20 to M32
External brackets for wall fixing included
Colour: black, RAL 9011
