Lumberg Jack Connector 3.5 mm Through Hole Mono Socket, 2Pole 1A
- RS Stock No.:
- 629-1325
- Distrelec Article No.:
- 300-68-349
- Mfr. Part No.:
- 1502 03
- Brand:
- Lumberg
Bulk discount available
Subtotal (1 unit)*
£1.68
(exc. VAT)
£2.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 602 unit(s) ready to ship
- Plus 26 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £1.68 |
| 25 - 99 | £1.52 |
| 100 + | £1.36 |
*price indicative
- RS Stock No.:
- 629-1325
- Distrelec Article No.:
- 300-68-349
- Mfr. Part No.:
- 1502 03
- Brand:
- Lumberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumberg | |
| Gender | Female | |
| Size | 3.5 mm | |
| Mounting Type | Through Hole | |
| Type | Mono | |
| Body Orientation | Right Angle | |
| Termination Method | Solder | |
| Contact Plating | Silver over Nickel | |
| Current Rating | 1A | |
| Housing Material | PC | |
| Voltage Rating | 34 V ac/dc | |
| Contact Material | Brass | |
| No of Poles/ Way | 2 | |
Select all | ||
|---|---|---|
Brand Lumberg | ||
Gender Female | ||
Size 3.5 mm | ||
Mounting Type Through Hole | ||
Type Mono | ||
Body Orientation Right Angle | ||
Termination Method Solder | ||
Contact Plating Silver over Nickel | ||
Current Rating 1A | ||
Housing Material PC | ||
Voltage Rating 34 V ac/dc | ||
Contact Material Brass | ||
No of Poles/ Way 2 | ||
- COO (Country of Origin):
- JP

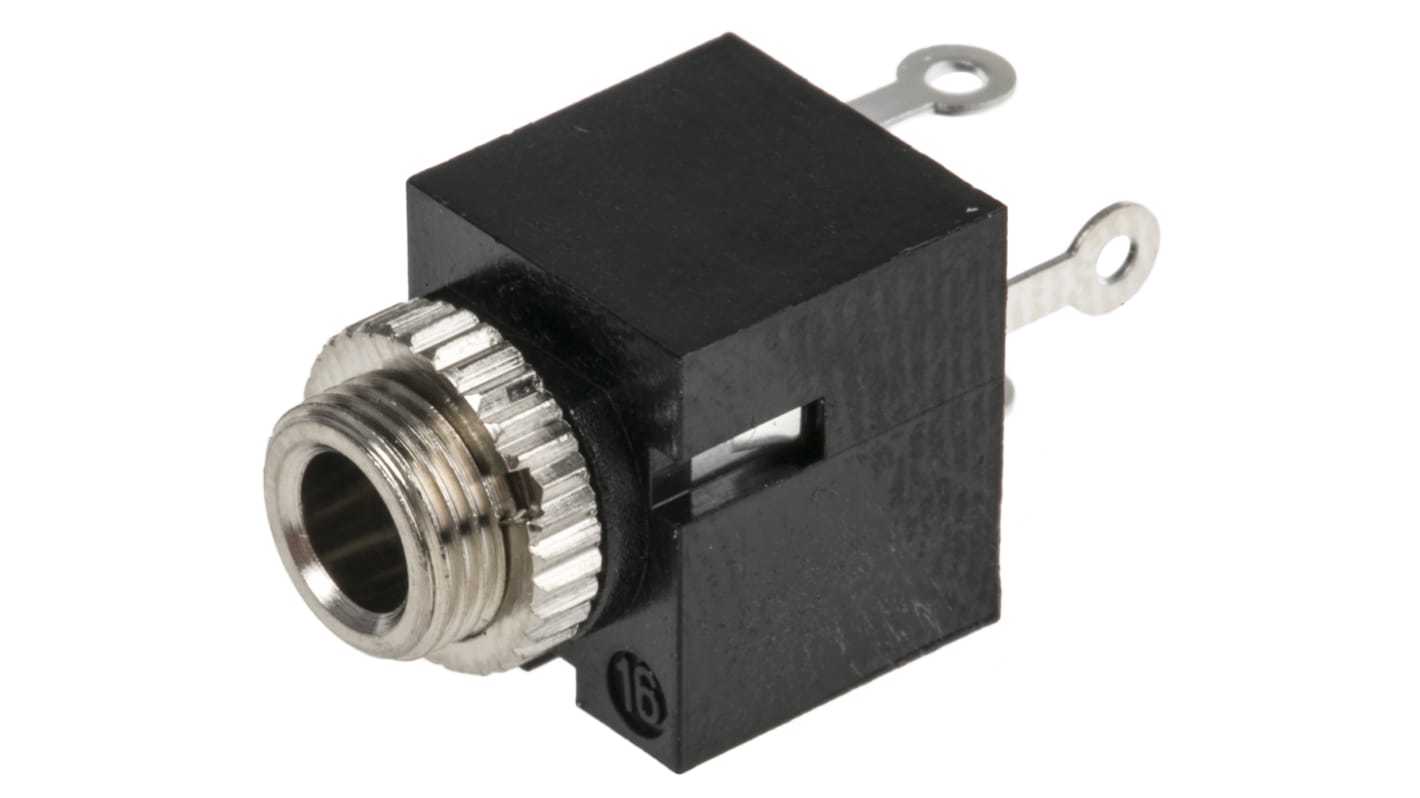

Lumberg 3.5 mm Jack Socket
From Lumberg, this right angle mono jack socket is suitable for demanding applications. The enclosed socket is chassis fitting, with solder rings for secure wiring. It features a mount bushing that screws onto the connector head to hold the socket securely to a panel.
The connector also features silver plated contacts to ensure a dependable signal, and has a robust polycarbonate insulating body. This chassis connector presents an excellent combination of quality and reliability.
Chassis jack sockets, or phone connectors, have a variety of uses, and are often found in amplifiers and instruments on the stage or in the studio. Other than their common use in commercial studio and domestic hi-fi, they are also widely used in commercial public address systems.
The connector also features silver plated contacts to ensure a dependable signal, and has a robust polycarbonate insulating body. This chassis connector presents an excellent combination of quality and reliability.
Chassis jack sockets, or phone connectors, have a variety of uses, and are often found in amplifiers and instruments on the stage or in the studio. Other than their common use in commercial studio and domestic hi-fi, they are also widely used in commercial public address systems.
Features and Benefits
• Rated current of 1A
• Rated voltage of 34VAC/VDC
• Silver plated contact
• Temperature range from -20°C to 70°C
• Rated voltage of 34VAC/VDC
• Silver plated contact
• Temperature range from -20°C to 70°C
