Lumberg Jack Connector 3.5 mm Surface Mount Female 3 Stereo, 1A Solder
- RS Stock No.:
- 505-1485
- Distrelec Article No.:
- 304-22-844
- Mfr. Part No.:
- 1503 03
- Brand:
- Lumberg
Bulk discount available
Subtotal (1 unit)*
£3.48
(exc. VAT)
£4.18
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 898 unit(s) shipping from 27 April 2026
- Plus 235 unit(s) shipping from 04 May 2026
- Plus 500 unit(s) shipping from 14 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.48 |
| 10 - 49 | £3.07 |
| 50 - 99 | £2.84 |
| 100 + | £2.47 |
*price indicative
- RS Stock No.:
- 505-1485
- Distrelec Article No.:
- 304-22-844
- Mfr. Part No.:
- 1503 03
- Brand:
- Lumberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumberg | |
| Product Type | Jack Connector | |
| Size | 3.5 mm | |
| Current | 1A | |
| Mount Type | Surface Mount | |
| Number of Ways | 3 | |
| Termination Type | Solder | |
| Sub Type | Stereo | |
| Connector Gender | Female | |
| Orientation | Right Angle | |
| Contact Plating | Tin | |
| Housing Material | Polyamide | |
| Voltage | 34V ac/dc | |
| Colour | Black | |
| Contact Gender | Female | |
| Series | 1503 | |
| Contact Material | Copper Alloy | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Lumberg | ||
Product Type Jack Connector | ||
Size 3.5 mm | ||
Current 1A | ||
Mount Type Surface Mount | ||
Number of Ways 3 | ||
Termination Type Solder | ||
Sub Type Stereo | ||
Connector Gender Female | ||
Orientation Right Angle | ||
Contact Plating Tin | ||
Housing Material Polyamide | ||
Voltage 34V ac/dc | ||
Colour Black | ||
Contact Gender Female | ||
Series 1503 | ||
Contact Material Copper Alloy | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- JP

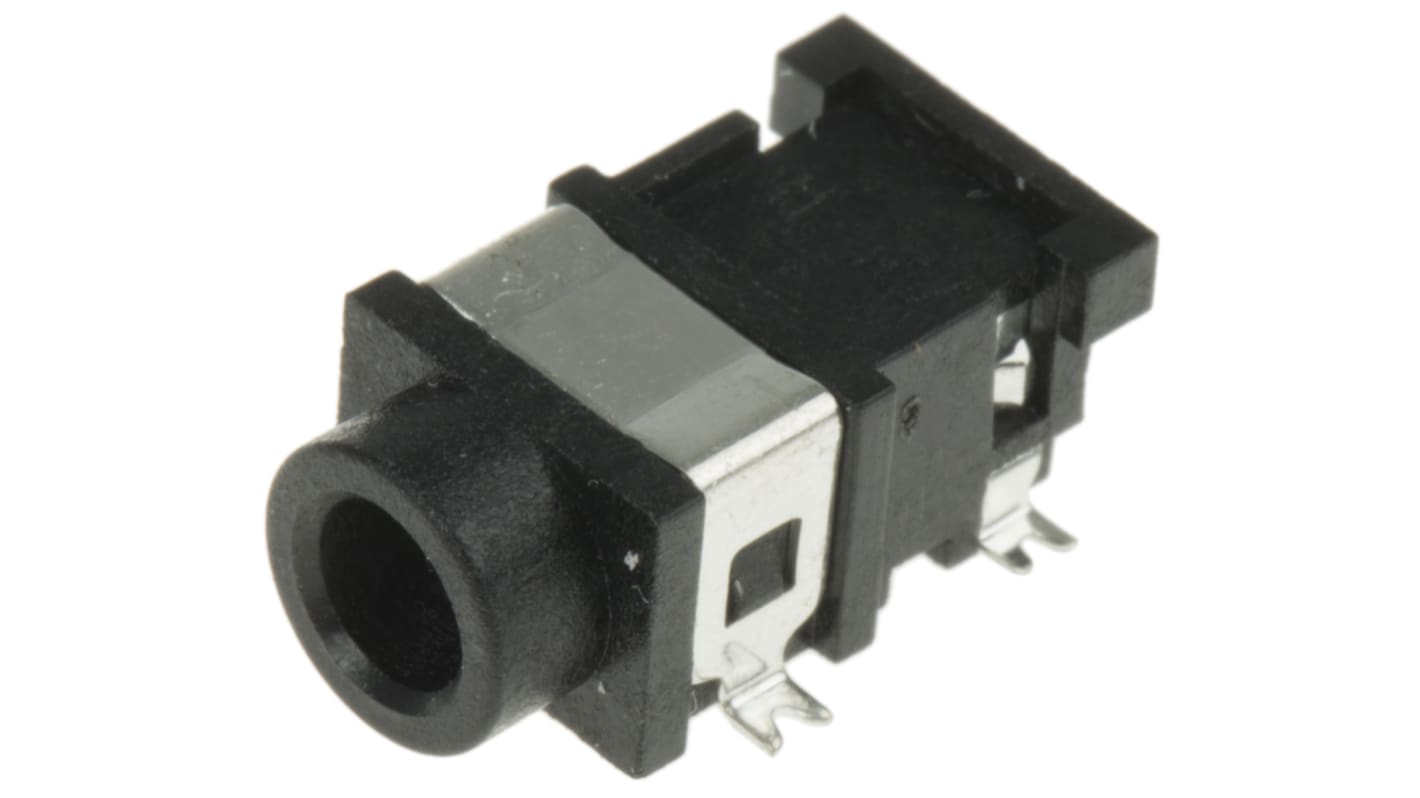

Lumberg Jack Socket
The Lumberg female stereotype jack 3-pole connector of size 3.5mm. This jack is surface mount and the housing is made of PA material. It has an electrical voltage rating of 34VDC/AC and current rating 1A.
Features and Benefits
• Contact resistance ≤ 30 mΩ
• Insulation resistance ≥ 100 MΩ
• Operating temperature ranges between -20°C and 70°C
• Provides bend protection and solder terminals
Certifications
• UL 94 approved
