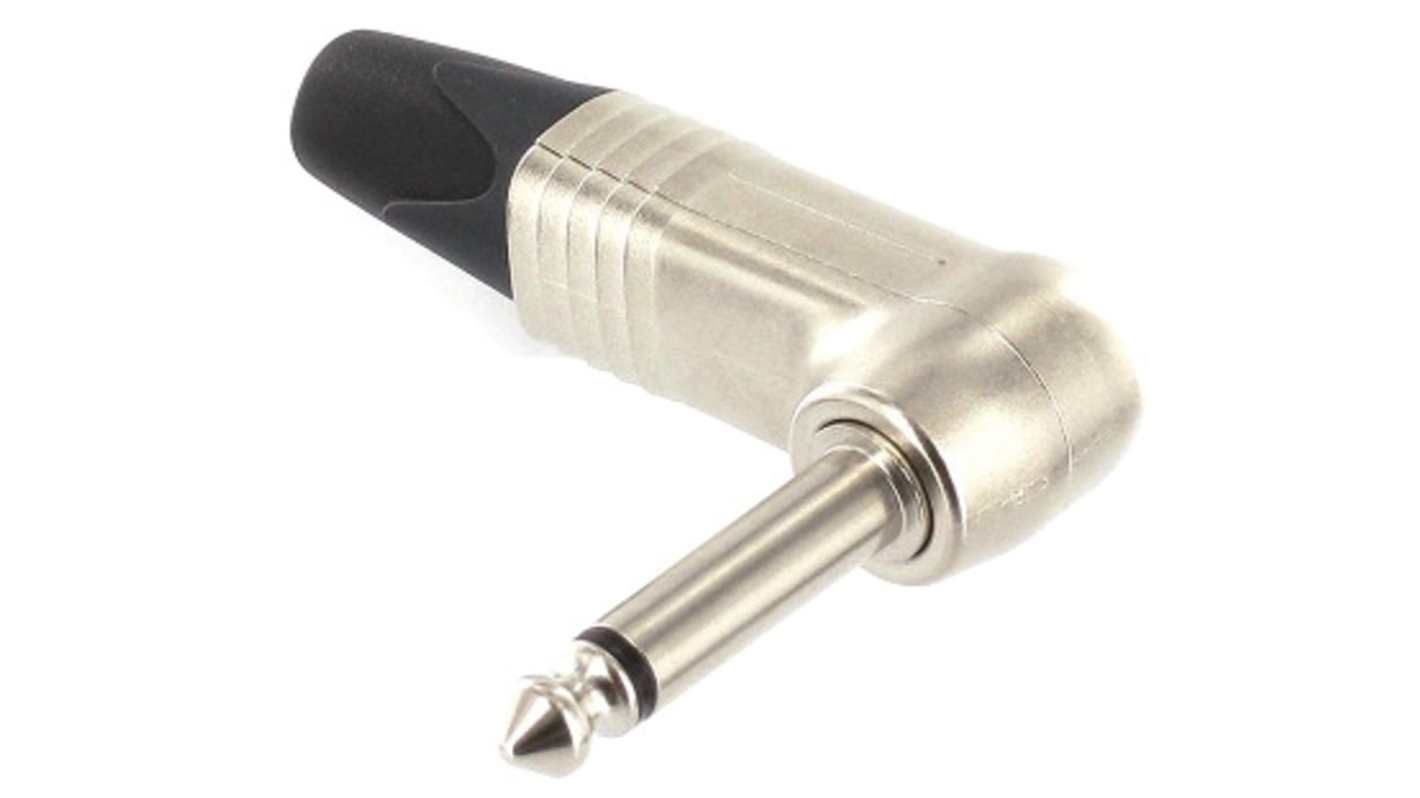

Neutrik Jack Connector 6.35 mm Cable Mount Mono Plug, 2Pole
- RS Stock No.:
- 166-282
- Distrelec Article No.:
- 142-78-065
- Mfr. Part No.:
- NP2RX
- Brand:
- Neutrik
Bulk discount available
Subtotal (1 unit)*
£4.29
(exc. VAT)
£5.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 218 unit(s) ready to ship
- Plus 46 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £4.29 |
5 - 9 | £4.09 |
10 - 24 | £3.87 |
25 - 49 | £3.66 |
50 + | £3.40 |
*price indicative
- RS Stock No.:
- 166-282
- Distrelec Article No.:
- 142-78-065
- Mfr. Part No.:
- NP2RX
- Brand:
- Neutrik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Neutrik | |
Gender | Male | |
Size | 6.35 mm | |
Mounting Type | Cable Mount | |
Type | Mono | |
Body Orientation | Right Angle | |
Termination Method | Solder | |
Contact Plating | Nickel | |
Housing Material | Nylon | |
Voltage Rating | 50 V | |
Contact Material | Brass | |
No of Poles/ Way | 2 | |
Select all | ||
---|---|---|
Brand Neutrik | ||
Gender Male | ||
Size 6.35 mm | ||
Mounting Type Cable Mount | ||
Type Mono | ||
Body Orientation Right Angle | ||
Termination Method Solder | ||
Contact Plating Nickel | ||
Housing Material Nylon | ||
Voltage Rating 50 V | ||
Contact Material Brass | ||
No of Poles/ Way 2 | ||
- COO (Country of Origin):
- LI
X-Series 1/4 in. Professional Right Angle Jack Plugs
The heavy-duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug. With a unique Neutrik chuck type strain relief. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jack fields (15.88 mm jack pitch). All models are highly reliable and excellent quality.
Features & Benefits
Extra slim 1/4 in. plug with a diecast shell
Improved chuck type strain relief for reliable cable retention
Precision machined one-piece contacts - avoid hook up of tip contact
Improved chuck type strain relief for reliable cable retention
Precision machined one-piece contacts - avoid hook up of tip contact
Neutrik Phone Plug
The Neutrik 2-pole 1/4in male right-angled phone plug has an improved design as compared to existing C series by offering the thinnest available A-gauge 1/4in plug. The slimline panel mount shell with a width of 14.5 mm meets the most recent requirements for high-density jack fields (15.88mm jack pitch).
6.35mm Neutrik
0.25in professional jack connectors for use where applications demand a rugged connector, built to exacting standards.
6.35mm Neutrik
0.25in professional jack connectors for use where applications demand a rugged connector, built to exacting standards.
Features and Benefits
Voltage rating is 50V
Improved chuck type strain relief for reliable cable retention
Precision machined one-piece contacts to avoid hook up of tip contact
Screwless assembly
Wire size is 1mm², 18AWG
Cables outer diameter up to 8mm
Robust die cast shell in a stylish design
Sleek design for best handling convenience
Highly reliable and excellent quality
Operating temperature ranging between -20°C and 65°C
Improved chuck type strain relief for reliable cable retention
Precision machined one-piece contacts to avoid hook up of tip contact
Screwless assembly
Wire size is 1mm², 18AWG
Cables outer diameter up to 8mm
Robust die cast shell in a stylish design
Sleek design for best handling convenience
Highly reliable and excellent quality
Operating temperature ranging between -20°C and 65°C
Applications
Guitar
Audio cables
Snakes
Speakers
Amplifiers and mixing desks
Audio cables
Snakes
Speakers
Amplifiers and mixing desks
Certifications
IEC 60603-11
EIA RS-453 compliant
IEC 68-2-20
EIA RS-453 compliant
IEC 68-2-20
6.35mm Neutrik
0.25 in. Professional: Jack connectors for use where applications demand a rugged connector, built to exacting standards.
