Neutrik Jack Connector 6.35 mm Cable Mount Stereo Plug, 3Pole
- RS Stock No.:
- 166-361
- Distrelec Article No.:
- 142-78-112
- Mfr. Part No.:
- NP3X
- Brand:
- Neutrik
Save 20% when you buy 50 units
Subtotal (1 unit)*
£5.74
(exc. VAT)
£6.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 793 unit(s) ready to ship
- Plus 154 unit(s) ready to ship from another location
- Plus 1,100 unit(s) shipping from 15 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £5.74 |
5 - 9 | £5.42 |
10 - 24 | £5.18 |
25 - 49 | £4.86 |
50 + | £4.57 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£3.91
(exc. VAT)
£4.69
(inc. VAT)
- RS Stock No.:
- 166-361
- Distrelec Article No.:
- 142-78-112
- Mfr. Part No.:
- NP3X
- Brand:
- Neutrik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Neutrik | |
Gender | Male | |
Size | 6.35 mm | |
Mounting Type | Cable Mount | |
Type | Stereo | |
Body Orientation | Straight | |
Termination Method | Solder | |
Contact Plating | Nickel | |
Housing Material | PA | |
Voltage Rating | 50 V | |
Contact Material | Brass | |
No of Poles/ Way | 3 | |
Select all | ||
---|---|---|
Brand Neutrik | ||
Gender Male | ||
Size 6.35 mm | ||
Mounting Type Cable Mount | ||
Type Stereo | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Contact Plating Nickel | ||
Housing Material PA | ||
Voltage Rating 50 V | ||
Contact Material Brass | ||
No of Poles/ Way 3 | ||
- COO (Country of Origin):
- LI

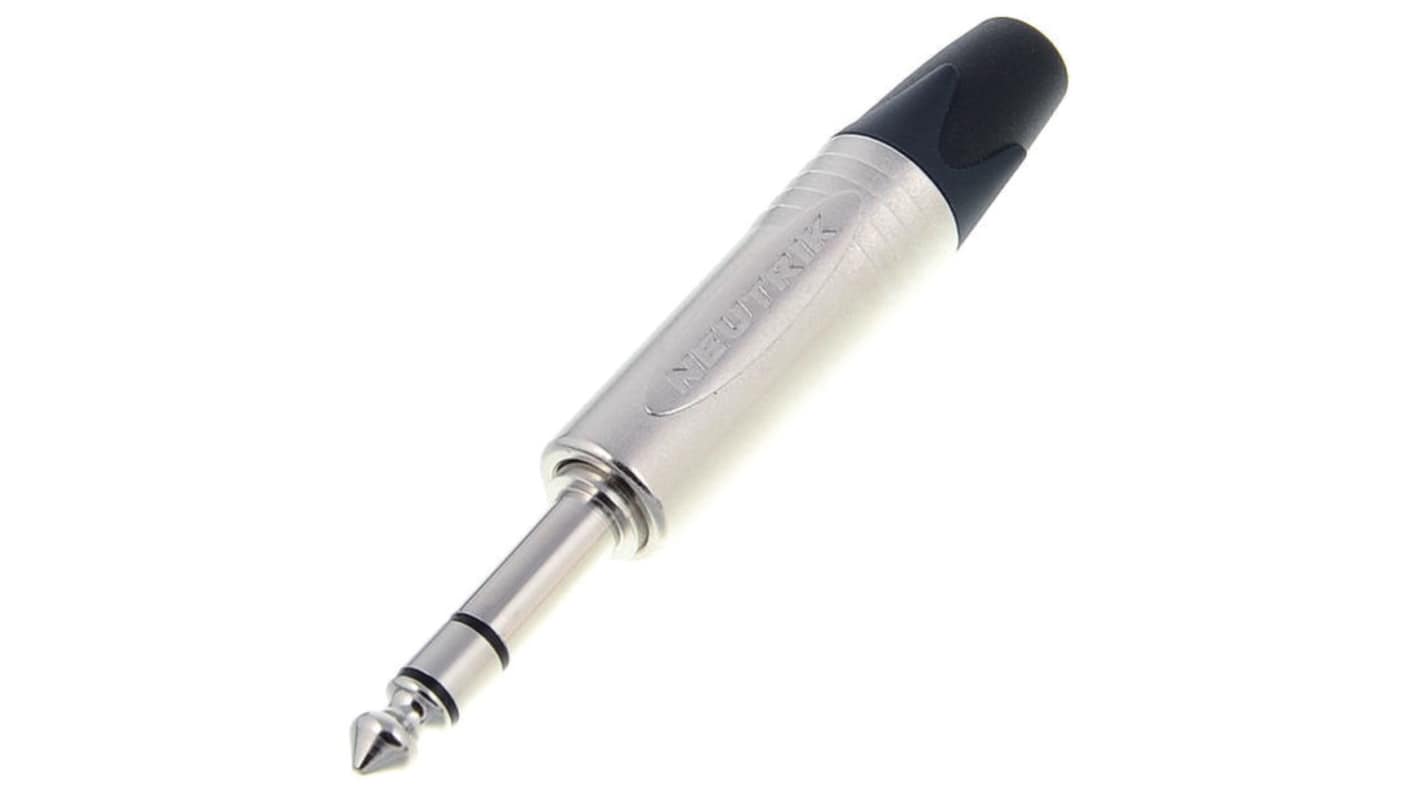

Neutrik Phone Plug
The Neutrik 3-pole 1/4in male stereo phone plug has an improved design as compared to the existing C series by offering the thinnest available A-gauge 1/4in plug. The slimline cable mount dies cast shell with a width of 14.5 mm meets the most recent requirements for high-density jack fields (15.88mm jack pitch).
Brand information:
With over 40 years of experience in electronic interconnect products and systems, Neutrik is an established name in audio, coaxial and power connectors. Consistently providing innovative solutions for connector needs, Neutrik strives to remain at the forefront of audio connection development and manufacturing.
6.35mm Neutrik
0.25 in. Professional: Jack connectors for use where applications demand a rugged connector, built to exacting standards.
Brand information:
With over 40 years of experience in electronic interconnect products and systems, Neutrik is an established name in audio, coaxial and power connectors. Consistently providing innovative solutions for connector needs, Neutrik strives to remain at the forefront of audio connection development and manufacturing.
6.35mm Neutrik
0.25 in. Professional: Jack connectors for use where applications demand a rugged connector, built to exacting standards.
Features and Benefits
Voltage rating is 50V
Improved chuck type strain relief for reliable cable retention
Precision machined one-piece contacts- no rivets to avoid hook up of tip contact
Screwless assembly
Wire size is 1mm², 18AWG
Cables outer diameter up to 8mm
Robust die cast shell in a stylish design
Sleek design for handling convenience
Operating temperature ranging between -20°C and 65°C
Improved chuck type strain relief for reliable cable retention
Precision machined one-piece contacts- no rivets to avoid hook up of tip contact
Screwless assembly
Wire size is 1mm², 18AWG
Cables outer diameter up to 8mm
Robust die cast shell in a stylish design
Sleek design for handling convenience
Operating temperature ranging between -20°C and 65°C
Applications
Commercial and domestic audio applications
Studios
Musical instruments or custom sound systems
Studios
Musical instruments or custom sound systems
Certifications
IEC 60603-11
EIA RS-453 compliant
IEC 68-2-20
EIA RS-453 compliant
IEC 68-2-20
