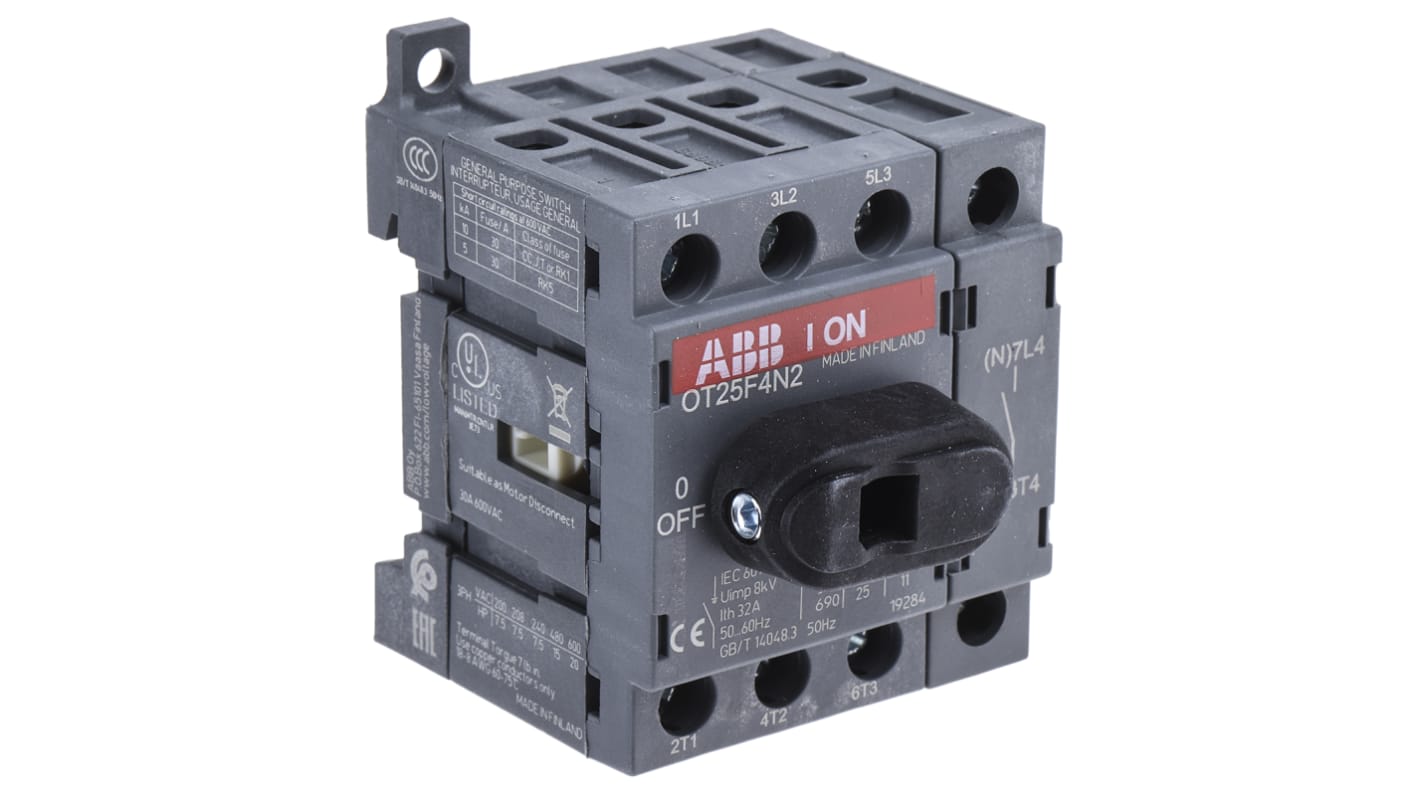

ABB 4-Pole Base Isolator Switch -, IP20, 25A, 560 kW
- RS Stock No.:
- 686-7262
- Mfr. Part No.:
- OT25F4N2 1SCA104886R1001
- Brand:
- ABB
Bulk discount available
Subtotal (1 unit)*
£27.29
(exc. VAT)
£32.75
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 91 unit(s) shipping from 20 April 2026
- Plus 34 unit(s) shipping from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £27.29 |
| 5 - 9 | £25.93 |
| 10 - 24 | £24.57 |
| 25 - 49 | £23.19 |
| 50 + | £21.83 |
*price indicative
- RS Stock No.:
- 686-7262
- Mfr. Part No.:
- OT25F4N2 1SCA104886R1001
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 4 | |
| Product Type | Isolator Switch | |
| Mount Type | Base | |
| IP Rating | IP20 | |
| Electrical Phase | 3 | |
| Handle Colour | Grey | |
| Switching Current | 25A | |
| Series | OT | |
| Terminal Type | Screw | |
| Auxiliary Contacts Available | No | |
| Minimum Operating Temperature | 40°C | |
| Padlock Compatibility | No | |
| Switching Power | 560kW | |
| Switching AC Voltage | 690V ac | |
| Switching DC Voltage | 1000V dc | |
| Maximum Operating Temperature | 40°C | |
| Length | 68mm | |
| Depth | 56mm | |
| Hazardous Area Certification | ATEX | |
| Width | 48mm | |
| Standards/Approvals | ATEX, CE, CSA, REACH, RoHS, UL, VDE | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 4 | ||
Product Type Isolator Switch | ||
Mount Type Base | ||
IP Rating IP20 | ||
Electrical Phase 3 | ||
Handle Colour Grey | ||
Switching Current 25A | ||
Series OT | ||
Terminal Type Screw | ||
Auxiliary Contacts Available No | ||
Minimum Operating Temperature 40°C | ||
Padlock Compatibility No | ||
Switching Power 560kW | ||
Switching AC Voltage 690V ac | ||
Switching DC Voltage 1000V dc | ||
Maximum Operating Temperature 40°C | ||
Length 68mm | ||
Depth 56mm | ||
Hazardous Area Certification ATEX | ||
Width 48mm | ||
Standards/Approvals ATEX, CE, CSA, REACH, RoHS, UL, VDE | ||
- COO (Country of Origin):
- FI
ABB DIN Rail Non Fused Isolator Switch, 4 Pole, 9kW Power Rating - OT25F4N2 1SCA104886R1001
Use this isolator switch from ABB to safely disconnect appliances on a DIN rail. With a front-operated knob actuator, it instantly isolates its connected circuits to allow you to service and maintain rail-mounted components. The switch features 4 poles to control up to 4 circuits, making more hardware available for examination at once. Designed with compact dimensions of 68 (length), 48 (width) and 56mm (depth), the switch fits neatly into your electrical system to maximise packing density on your DIN rail.
Features & Benefits
• DIN rail mounting for easy installation and relocation when needed
• Resists impulse voltages up to 8kV to handle sudden heavy electrical loads
• Screw termination ensures reliable electrical connections during operation and simple swapping when changing components
Applications
• Switchboards
• Automotive manufacturing
• Energy industry
What's impulse voltage and why should my isolator switch resist it?
Impulse voltages rise to a peak value and then drop quickly. Some applications with unpredictable power supplies occasionally experience impulse voltages, meaning they need components that withstand those voltages and keep working afterwards. As a safety device, it's especially important that an isolator switch continues working as intended to keep operators safe.
