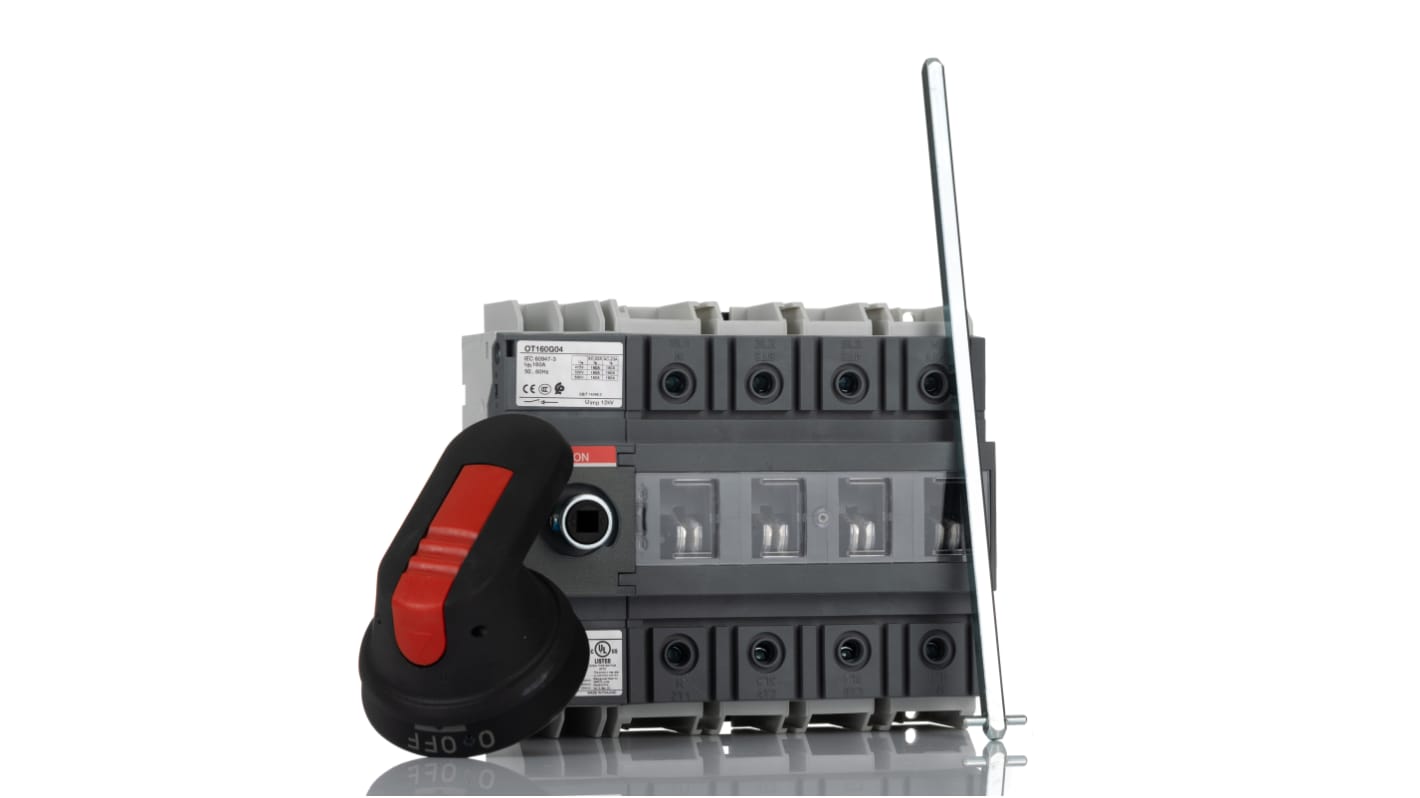

ABB 4-Pole Base Isolator Switch -, IP20, 160A, 132 kW
- RS Stock No.:
- 125-0862
- Mfr. Part No.:
- OT160G04P 1SCA135140R1001
- Brand:
- ABB
Bulk discount available
Subtotal (1 unit)*
£202.71
(exc. VAT)
£243.25
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 29 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £202.71 |
| 5 - 9 | £192.57 |
| 10 - 24 | £182.44 |
| 25 - 49 | £172.31 |
| 50 + | £162.18 |
*price indicative
- RS Stock No.:
- 125-0862
- Mfr. Part No.:
- OT160G04P 1SCA135140R1001
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Isolator Switch | |
| Number of Poles | 4 | |
| Mount Type | Base | |
| IP Rating | IP20 | |
| Electrical Phase | 3, 1 | |
| Handle Colour | Black | |
| Switching Current | 160A | |
| Series | OT160G | |
| Auxiliary Contacts Available | No | |
| Terminal Type | Lug Terminal | |
| Padlock Compatibility | No | |
| Switching AC Voltage | 600V ac | |
| Switching Power | 132kW | |
| Minimum Operating Temperature | 0°C | |
| Depth | 75mm | |
| Width | 130mm | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Length | 150mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Isolator Switch | ||
Number of Poles 4 | ||
Mount Type Base | ||
IP Rating IP20 | ||
Electrical Phase 3, 1 | ||
Handle Colour Black | ||
Switching Current 160A | ||
Series OT160G | ||
Auxiliary Contacts Available No | ||
Terminal Type Lug Terminal | ||
Padlock Compatibility No | ||
Switching AC Voltage 600V ac | ||
Switching Power 132kW | ||
Minimum Operating Temperature 0°C | ||
Depth 75mm | ||
Width 130mm | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
Length 150mm | ||
- COO (Country of Origin):
- FI
ABB Isolator Switch, 10 to 70mm² Cable Cross-Section Range, 1.2kg Net Weight - OT160G Series - OT160G04P 1SCA135140R1001
Need a safe and simple way to disconnect a circuit? Pick this handy isolator switch from ABB. Simply rotate the black handle to turn your attached machinery on or off. Doing this keeps you safe during maintenance tasks by limiting exposure to hazardous equipment. You can double up on protection by locking the component to prevent use by unauthorised personnel. An IP20 rating means this switch is touch-proof and shielded from objects larger than 12mm, like wires and tools.
Features & Benefits
• Mechanical durability of 20,000 cycles means it's reliable in the long term
• Low tightening torque of 6Nm makes it simple to install by hand
• 600V maximum operating voltage rating indicates it's safe to use with powerful electrical systems
Applications
• Substations
• HVAC systems
• Electric showers
Can this product withstand impulse voltages?
Yes. It has a 12kV impulse withstand voltage rating, so it can handle sudden electrical surges without a hitch.
How big is this isolator switch?
This product has compact dimensions of 73 (L) x 150 (W) x 130mm (H) so it saves space in your setup.
