Forming part of Schneider Electrics Vario Switch range is this selection of isolator switches which are sometimes referred to as switch disconnectors. Comprised of a strong and durable material that is suitable for a multitude of environments, these three-pole versions are perfectly suited for manual motor control applications. Super easy to connect and wire as it comes to you undrilled, which enables variable cable entry positions.

switch-disconnectors are compact and robust, they are ideal for hard-wearing industrial environments. This range of isolator switches from Schneider is suitable for use in applications where there is a need to disconnect electrical equipment from the circuit. The need for this form of local isolation is most commonly needed for repair and maintenance of the electrical equipment on the de-energised circuit. These disconnect switches can also be used as safety switches.

• Performs local isolation, manual override & safety switch functions
• For use in applications where there is a need to disconnect electrical equipment from the circuit, most commonly needed for repair and maintenance of electrical equipment
• These disconnect switches can also be used as safety switches
• Created and designed to safely isolate a circuit whilst it is being used or maintained

Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary to disconnect or isolate a circuit.

This type of isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.

The figures quoted for rated operational power within the price table are with respect to a voltage of 230/240V, with figures within brackets ( ) being those with respect to a voltage of 690V.
The higher current rating refers to use in free air, the lower current rating represents use in an enclosure.

UL, CSA, GL

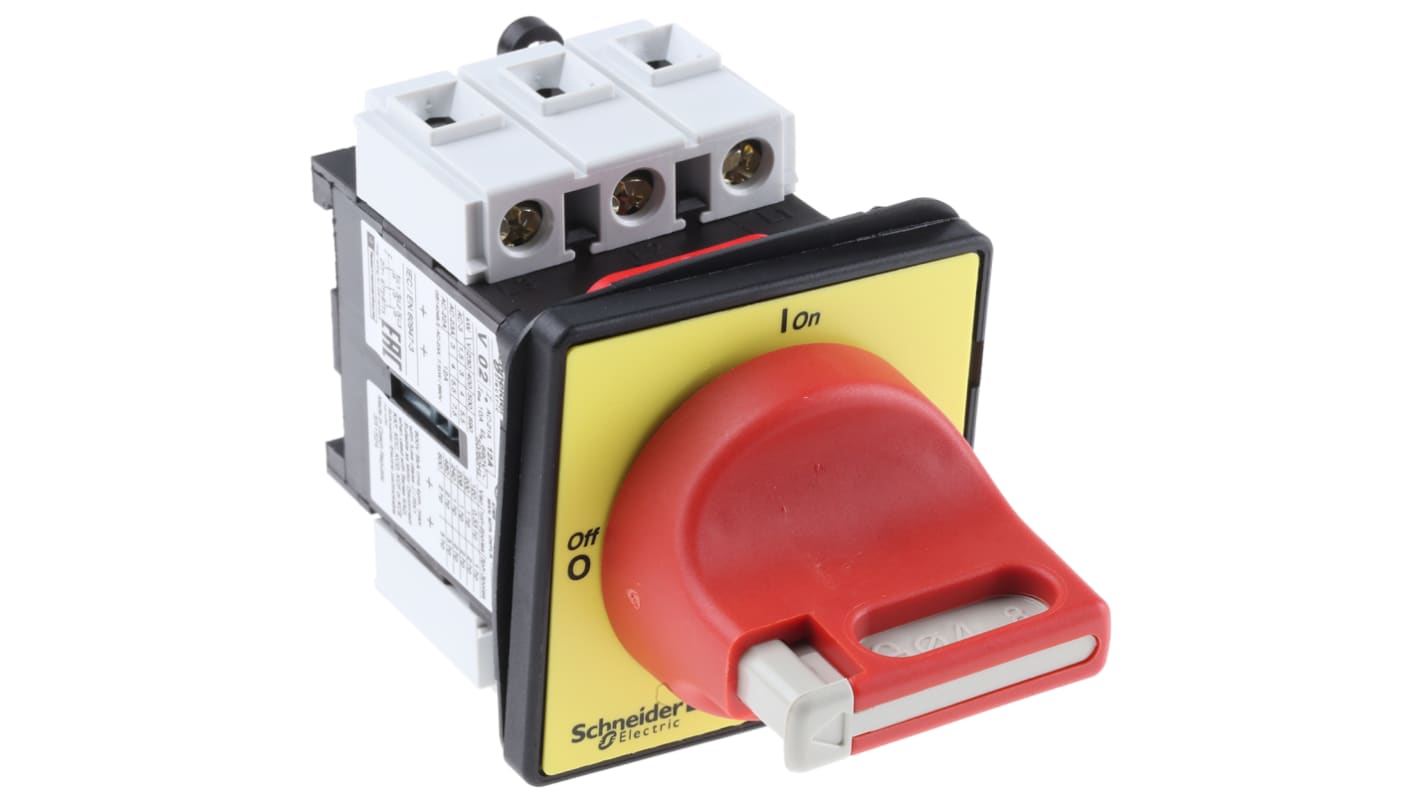

This isolator switch from Schneider Electric, part of the TeSys VARIO series, combines high performance with reliability. It features a 3-phase configuration and a 690V voltage rating, this switch is designed to meet the needs of a variety of industrial applications. With a power rating of 7.5kW, it offers superior performance and durability.

• Accepts padlocks for added security
• Panel mount design for easy installation
• Screw terminal for convenient connections
• Red handle for quick identification
• 3P number of poles for enhanced functionality
• Wide operating temperature Range (-20°C to +50°C)
• Emergency stop switch function for safety
• High impulse withstand voltage (8kV) for increased reliability

• Suitable for use in industrial automation systems
• Ideal for electrical and mechanical industries
• Suitable for emergency stop applications
• Can be used in high-performance switch-disconnector setups

Yes, it features padlockable handles for extra protection.

It has a wide operating temperature range from -20°C to +50°C.

Yes, it offers emergency stop switch functionality for added safety.
