Forming part of Schneider Electrics Vario Switch range is this selection of isolator switches which are sometimes referred to as switch disconnectors. Comprised of a strong and durable material that is suitable for a multitude of environments, these three-pole versions are perfectly suited for manual motor control applications. Super easy to connect and wire as it comes to you undrilled, which enables variable cable entry positions.

switch-disconnectors are compact and robust, they are ideal for hard-wearing industrial environments. This range of isolator switches from Schneider is suitable for use in applications where there is a need to disconnect electrical equipment from the circuit. The need for this form of local isolation is most commonly needed for repair and maintenance of the electrical equipment on the de-energised circuit. These disconnect switches can also be used as safety switches.

• Performs local isolation, manual override & safety switch functions
• For use in applications where there is a need to disconnect electrical equipment from the circuit, most commonly needed for repair and maintenance of electrical equipment
• These disconnect switches can also be used as safety switches
• Created and designed to safely isolate a circuit whilst it is being used or maintained

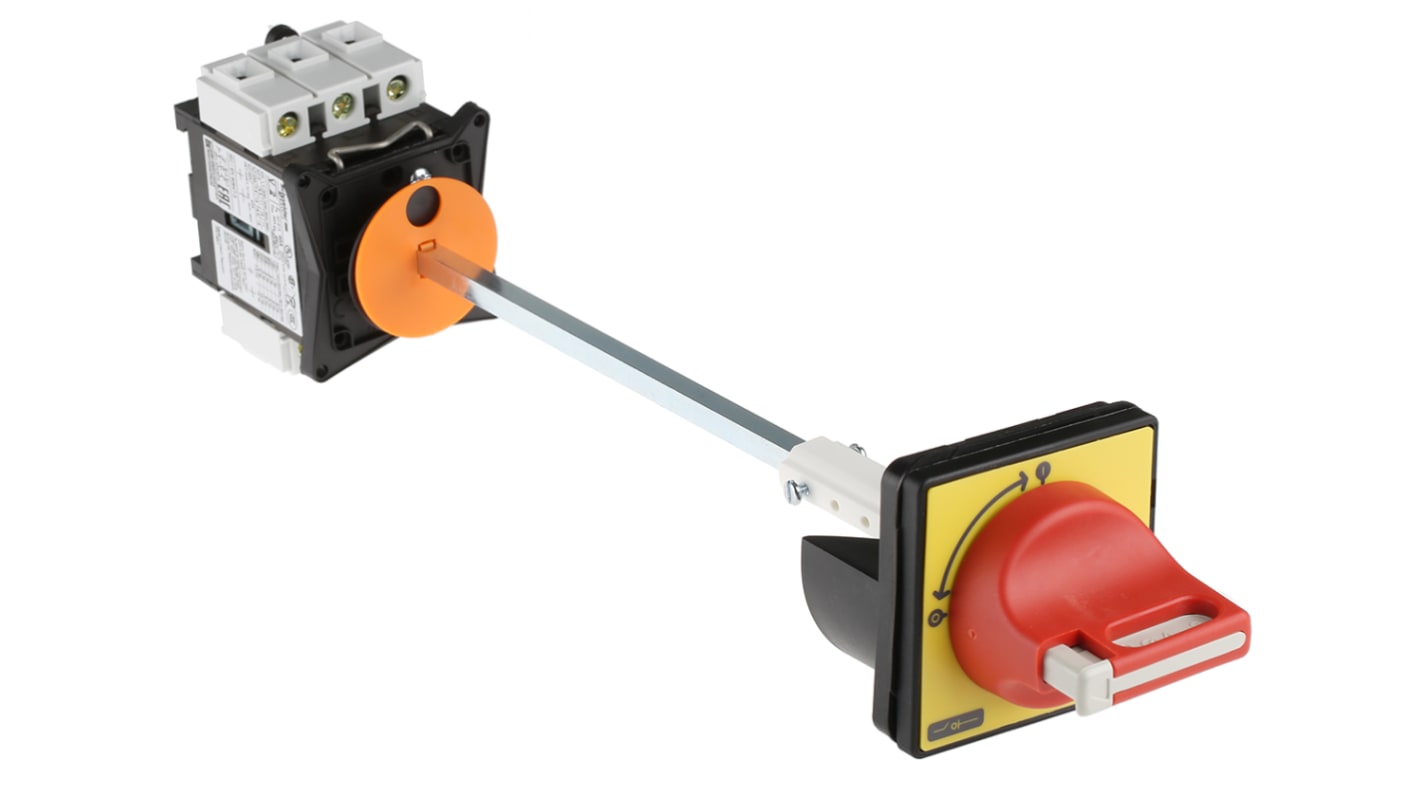

• Supplied as a complete kit in one pack, the kit includes a 3-pole switch body, terminal shroud, extension shaft door interlock and operation assembly with a red/yellow emergency switch

Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary to disconnect or isolate a circuit.

This type of isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.

The figures quoted for rated operational power within the price table are with respect to a voltage of 230/240V, with figures within brackets ( ) being those with respect to a voltage of 690V.
The higher current rating refers to use in free air, the lower current rating represents use in an enclosure.

UL, CSA, GL

To turn off power without delay, flip this isolator switch from Schneider Electric. You can use it to stop the electricity supply to entire machines or discreet sections so you can safely carry out essential maintenance and repairs. As it has an easy-to-spot red head set against a yellow face, this unit's suitable for use as an emergency device. You can secure the rotary handle with up to three padlocks to prevent accidental or unauthorised use. As the switch comes with everything you need, including a 3-pole body, an extension shaft and an operation assembly, so you can install it right away.

• Safe to use in a wide operating temperature range between -20°C and +50°C
• Panel-mounted, so installation's a breeze
• Screw terminals achieve a firm grip on conductors to prevent accidental disconnection
• Fire-resistant up to +960°C to boost workplace safety
• Extended rotary shaft for recessed setups

• Assembly lines
• Chemical manufacturing
• Engineering workshops

It has a power rating of 19.5kW, so you can use it to isolate high-powered equipment.
