    Schneider Electric 3P Pole Panel Mount Isolator Switch - 32A Maximum Current, 11kW Power Rating

    RS Stock No.:
    257-3623
    Mfr. Part No.:
    VCCF1
    Brand:
    Schneider Electric
    Schneider Electric
    View all Isolator Switches
    50 In stock - FREE next working day delivery available
    7 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each

    £67.39

    (exc. VAT)

    £80.87

    (inc. VAT)

    UnitsPer unit
    1 +£67.39

    Better World Products

    We know you want to be able to choose products that are better for people and the planet. Our new Better World product range makes it easier for you to be informed and select a greener choice; we’ve partnered with trusted experts and selected over 40 sustainability certifications and energy labels to highlight products that are better for the environment. Each product is tagged with a Better World badge. – click here to read more.

    RS Stock No.:
    257-3623
    Mfr. Part No.:
    VCCF1
    Brand:
    Schneider Electric

    RoHS Status: Not Applicable

    Legislation and Compliance

    RoHS Status: Not Applicable


    Product Details

    Schneider Electric Isolator Switch - VCCF1


    Forming part of Schneider Electrics TeSys Vario Switch range is this isolator switch which is sometimes referred to as a switch disconnector. Comprised of a non-corrosive and resistant material that is suitable for harsh environments, this three-pole version is perfectly suited for manual motor control applications. Super easy to connect and wire as well as come undrilled which enables variable cable entry positions.

    Features & Benefits


    • Rotary type switch disconnector

    • High-performance level

    • The switch function of this device is an emergency stop

    • 3 pole

    • has an AC network type

    • Extended rotary handle mounting style

    • Aesthetically pleasing red handle and yellow front plate

    • The rotary handle is padlockable up to 3 times

    • Has a rated operational voltage of 690 V AC 50/60 Hz

    • Mechanically durable up to 100000 cycles and has Electrical durability of 30000 cycles on DC-1...5, 100000 cycles on AC-21

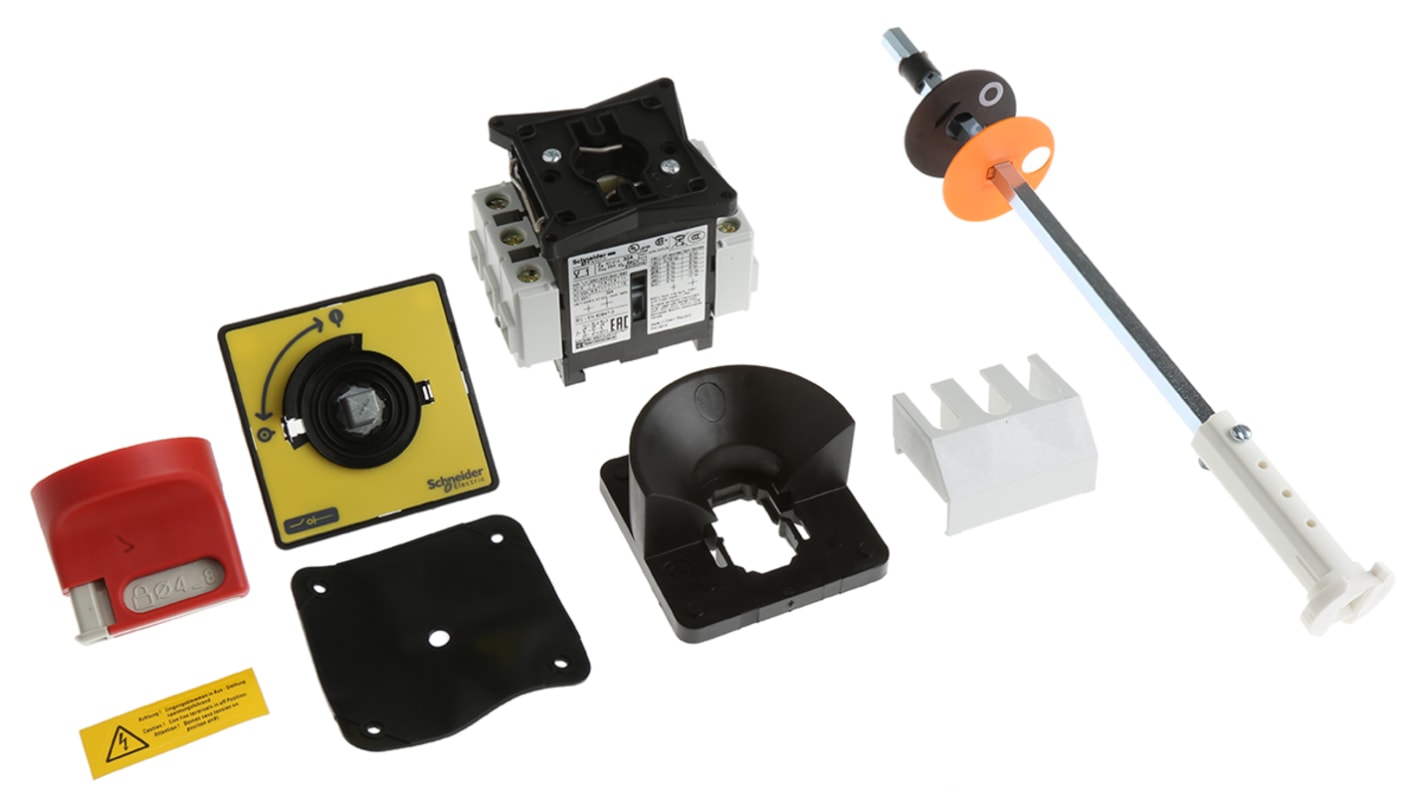

    • Supplied with handle assembly, shaft extension door interlock plate and terminal shroud

    • Product standards - IEC 60947-3 and product certifications are CCC, CSA, GL and UL

    How does an isolator switch work?


    This type of isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.


    Specifications

    AttributeValue
    Number of Poles3P
    Maximum Current32A
    Mounting TypePanel Mount
    Power Rating11kW
    Voltage Rating690V ac
    Electrical Phase3
    Accepts PadlocksYes
    Handle ColourRed
    SeriesVARIO
    RangeTeSys
    Auxiliary Contacts AvailableNo
    Switch Rating8kV
    Length60mm
    Better World ProductYes
    Maximum Operating Temperature+50°C
    Terminal TypeScrew
    Minimum Operating Temperature-20°C
    Better World VerificationGreen Premium
