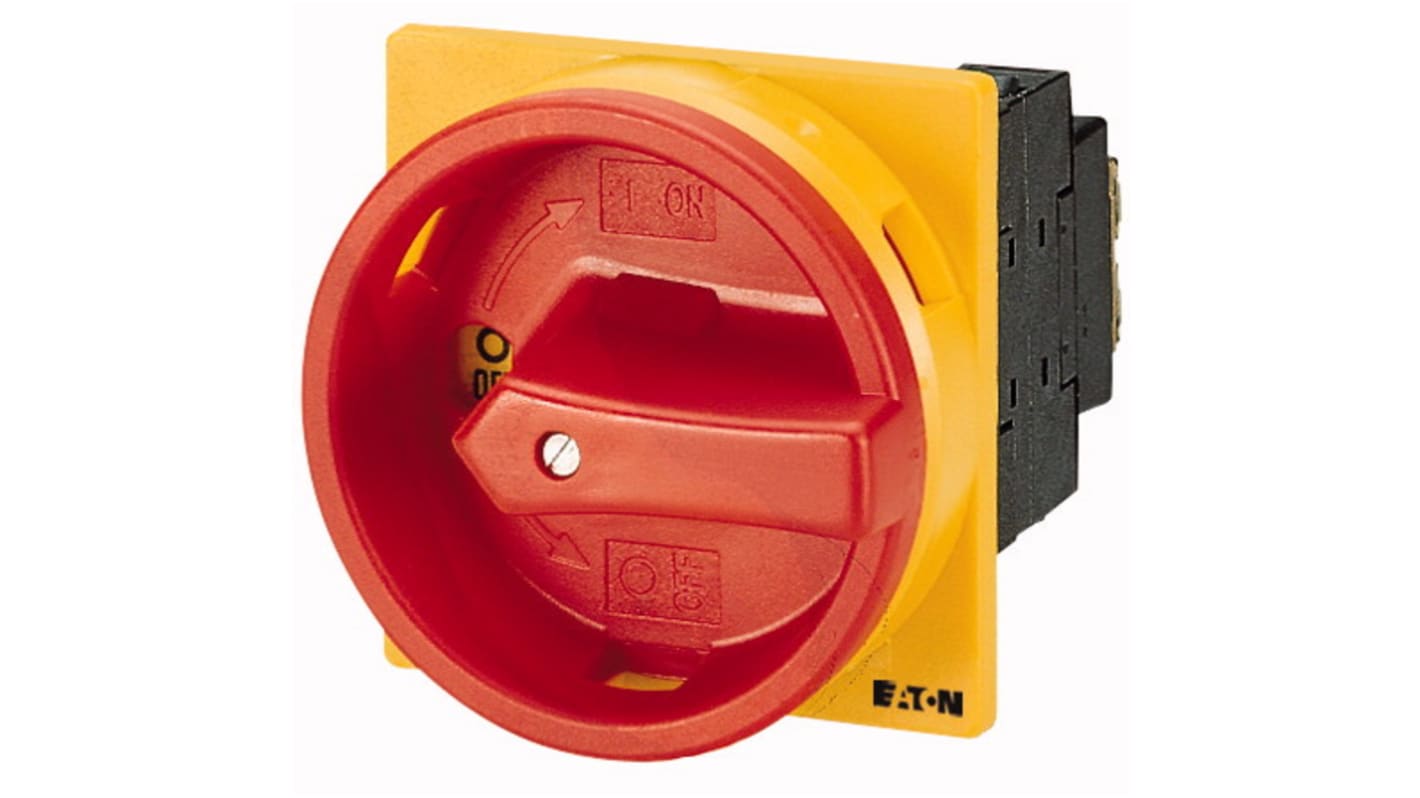

Eaton 3-Pole Flush Isolator Switch -, IP65, 32A, 13 kW

RS Stock No.:: 266-4575
Mfr. Part No.:: 110198 P1-32/E/SVB
Brand:: Eaton

Eaton 3-Pole Flush Isolator Switch -, IP65, 32A, 13 kW

Subtotal (1 unit)*

£55.02

(exc. VAT)

£66.02

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

1 unit(s) ready to ship
Plus 7 unit(s) shipping from 08 June 2026
Plus 7 unit(s) shipping from 03 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£55.02

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 266-4575
Mfr. Part No.:: 110198 P1-32/E/SVB
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Isolator Switch
	Number of Poles	3
	Mount Type	Flush
	IP Rating	IP65
	Terminal Type	Screw
	Auxiliary Contacts Available	Yes
	Switching Current	32A
	Series	11
	Switching DC Voltage	24V
	Switching Power	13kW
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	690V
	Maximum Operating Temperature	40°C
	Hazardous Area Certification	No
	Depth	119mm
	Standards/Approvals	CSA-C22.2 No. 60947-4-1-14, CSA-C22.2 No. 94, CSA Class No.: 3211-05, CSA File No.: 012528, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332, VDE 0660, CE, CSA
	Width	65mm
	Length	119mm

	Select all
	Brand Eaton
	Product Type Isolator Switch
	Number of Poles 3
	Mount Type Flush
	IP Rating IP65
	Terminal Type Screw
	Auxiliary Contacts Available Yes
	Switching Current 32A
	Series 11
	Switching DC Voltage 24V
	Switching Power 13kW
	Minimum Operating Temperature -25°C
	Switching AC Voltage 690V
	Maximum Operating Temperature 40°C
	Hazardous Area Certification No
	Depth 119mm
	Standards/Approvals CSA-C22.2 No. 60947-4-1-14, CSA-C22.2 No. 94, CSA Class No.: 3211-05, CSA File No.: 012528, IEC/EN 60204, IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332, VDE 0660, CE, CSA
	Width 65mm
	Length 119mm

COO (Country of Origin):: GB

Eaton Isolator Switch, 32A Maximum Current, 3 Poles - 110198 P1-32/E/SVB

This isolator switch is a high-performance electrical component designed for robust industrial applications. Manufactured by Eaton, this 3-pole device has a maximum current rating of 32A and a voltage rating of 690V, making it Ideal for various automation and control solutions. With a Compact flush mount design, it measures 119mm in length and depth, and 65mm in width, ensuring ease of integration in tight spaces. The environmentally sealed construction offers an IP65 rating, providing excellent protection against dust and water ingress.

Features & Benefits

• High current capacity supports demanding electrical loads
• 690V voltage rating facilitates use in a variety of usage
• Compact flush mount design fits seamlessly in installations
• Durable screw Terminal type promotes secure connections

Applications

• Used in machinery control panels to manage power supply
• Ideal for main disconnects in electrical distribution systems
• Used with industrial automation equipment for system integration
• Suitable for requiring high current switching

How does the switch ensure reliability in harsh environments?

The switch's IP65 rating offers comprehensive protection against water and dust, ensuring reliable performance even in challenging conditions such as factories or outdoor installations.

What is the significance of the 3-pole design?

The 3-pole configuration allows for the disconnection of three phases of power simultaneously, enhancing safety and reliability in three-phase electrical systems.

What are the temperature tolerances for this switch?

The switch can operate effectively within a temperature range of -25°C to +50°C, making it suitable for a variety of environments, from cold storage facilities to hot industrial settings.

What installation methods are recommended for the flush mount design?

The flush mount design fits into standard electrical panels and cabinets, providing a streamlined appearance while ensuring easy access to the switch for operation and maintenance.
