Eaton 3-Pole Flush, Flush Isolator Switch -, IP65, 40A, 22 kW

RS Stock No.:: 273-6464
Mfr. Part No.:: 199892 P1-40/E/SVB
Brand:: Eaton

Eaton 3-Pole Flush, Flush Isolator Switch -, IP65, 40A, 22 kW

Subtotal (1 unit)*

£81.14

(exc. VAT)

£97.37

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

6 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£81.14

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 273-6464
Mfr. Part No.:: 199892 P1-40/E/SVB
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Isolator Switch
	Number of Poles	3
	Mount Type	Flush, Flush
	IP Rating	IP65
	Handle Colour	Red
	Series	P1
	Auxiliary Contacts Available	Yes
	Switching Current	40A
	Terminal Type	Screw
	Padlock Compatibility	Yes
	Switching AC Voltage	690V ac
	Minimum Operating Temperature	-25°C
	Switching Power	22kW
	Maximum Operating Temperature	50°C
	Length	75mm
	Depth	75mm
	Hazardous Area Certification	NO
	Standards/Approvals	IEC/EN 60204, IEC/EN 60947, Lasttrennschalter nach IEC/EN 60947-3
	Width	49mm

	Select all
	Brand Eaton
	Product Type Isolator Switch
	Number of Poles 3
	Mount Type Flush, Flush
	IP Rating IP65
	Handle Colour Red
	Series P1
	Auxiliary Contacts Available Yes
	Switching Current 40A
	Terminal Type Screw
	Padlock Compatibility Yes
	Switching AC Voltage 690V ac
	Minimum Operating Temperature -25°C
	Switching Power 22kW
	Maximum Operating Temperature 50°C
	Length 75mm
	Depth 75mm
	Hazardous Area Certification NO
	Standards/Approvals IEC/EN 60204, IEC/EN 60947, Lasttrennschalter nach IEC/EN 60947-3
	Width 49mm

Datasheet - 199892

COO (Country of Origin):: GB

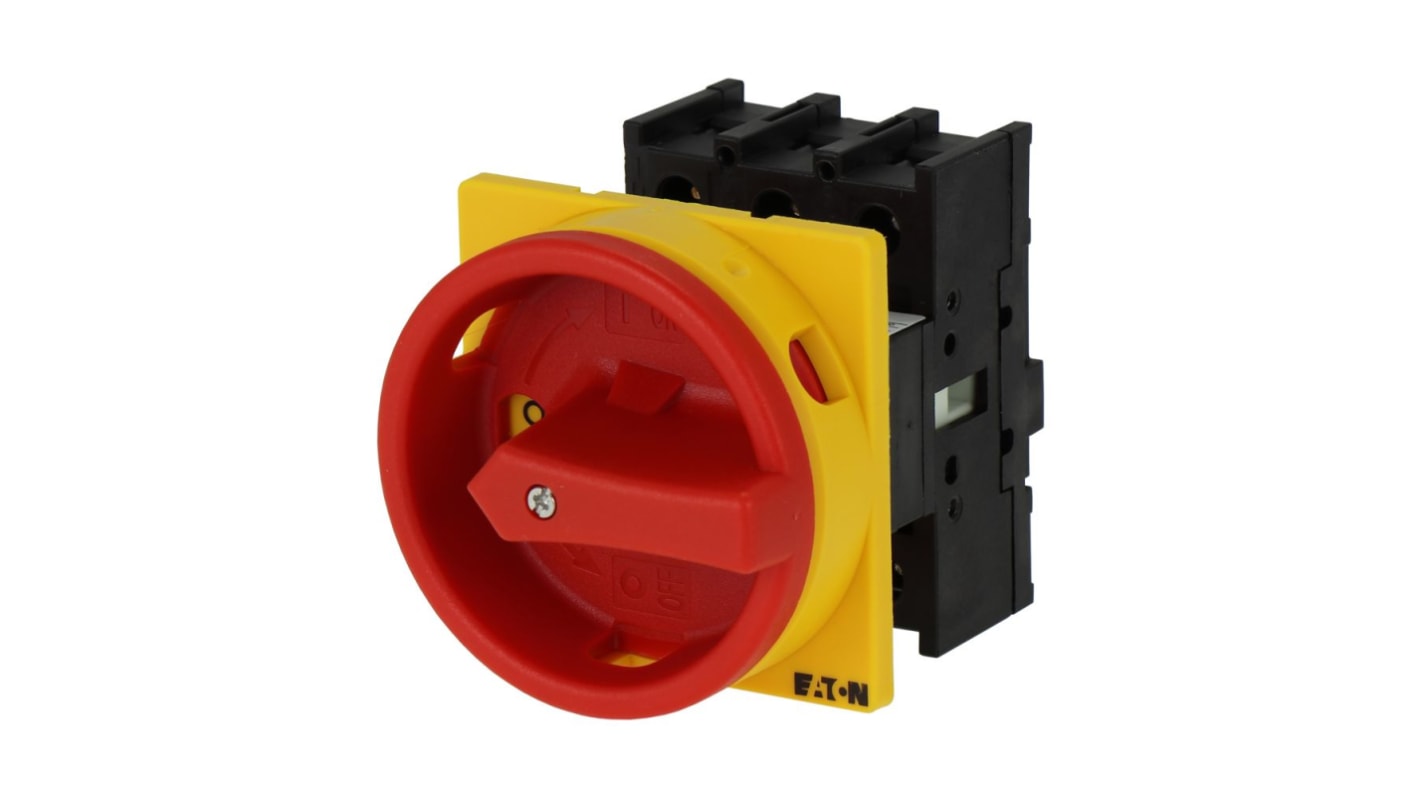

The Eaton On Off switch fitted with auxiliary contact, red rotary handle and yellow locking ring. This switch has 50 operations per Hz operating frequency with 300000 operations mechanical lifespan. This switch offers damp heat, constant to IEC 60068-2-78 and damp heat, cyclic to IEC 60068-2-30 climatic proofing with 90 degree switching angle. It has class III overvoltage category.

Version as main switch

UKCE and CE compliances

Version as emergency stop installation

Version as maintenance or service switch

IEC EN 60947 3 and IEC EN 60204 certifications
