ABB 6-Pole Isolator Switch -, IP65, 80A
- RS Stock No.:
- 258-9595
- Mfr. Part No.:
- 1SCA022610R5030
- Brand:
- ABB
Stock information currently inaccessible
- RS Stock No.:
- 258-9595
- Mfr. Part No.:
- 1SCA022610R5030
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 6 | |
| Product Type | Isolator Switch | |
| IP Rating | IP65 | |
| Handle Colour | Black | |
| Series | 1SCA0 | |
| Auxiliary Contacts Available | Yes | |
| Terminal Type | Screw Clamp | |
| Switching Current | 80A | |
| Switching AC Voltage | 380, 415V ac | |
| Depth | 135mm | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | IEC 60947-1 | |
| Width | 200mm | |
| Length | 300mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 6 | ||
Product Type Isolator Switch | ||
IP Rating IP65 | ||
Handle Colour Black | ||
Series 1SCA0 | ||
Auxiliary Contacts Available Yes | ||
Terminal Type Screw Clamp | ||
Switching Current 80A | ||
Switching AC Voltage 380, 415V ac | ||
Depth 135mm | ||
Hazardous Area Certification NO | ||
Standards/Approvals IEC 60947-1 | ||
Width 200mm | ||
Length 300mm | ||
- COO (Country of Origin):
- FI
1SCA022610R5030

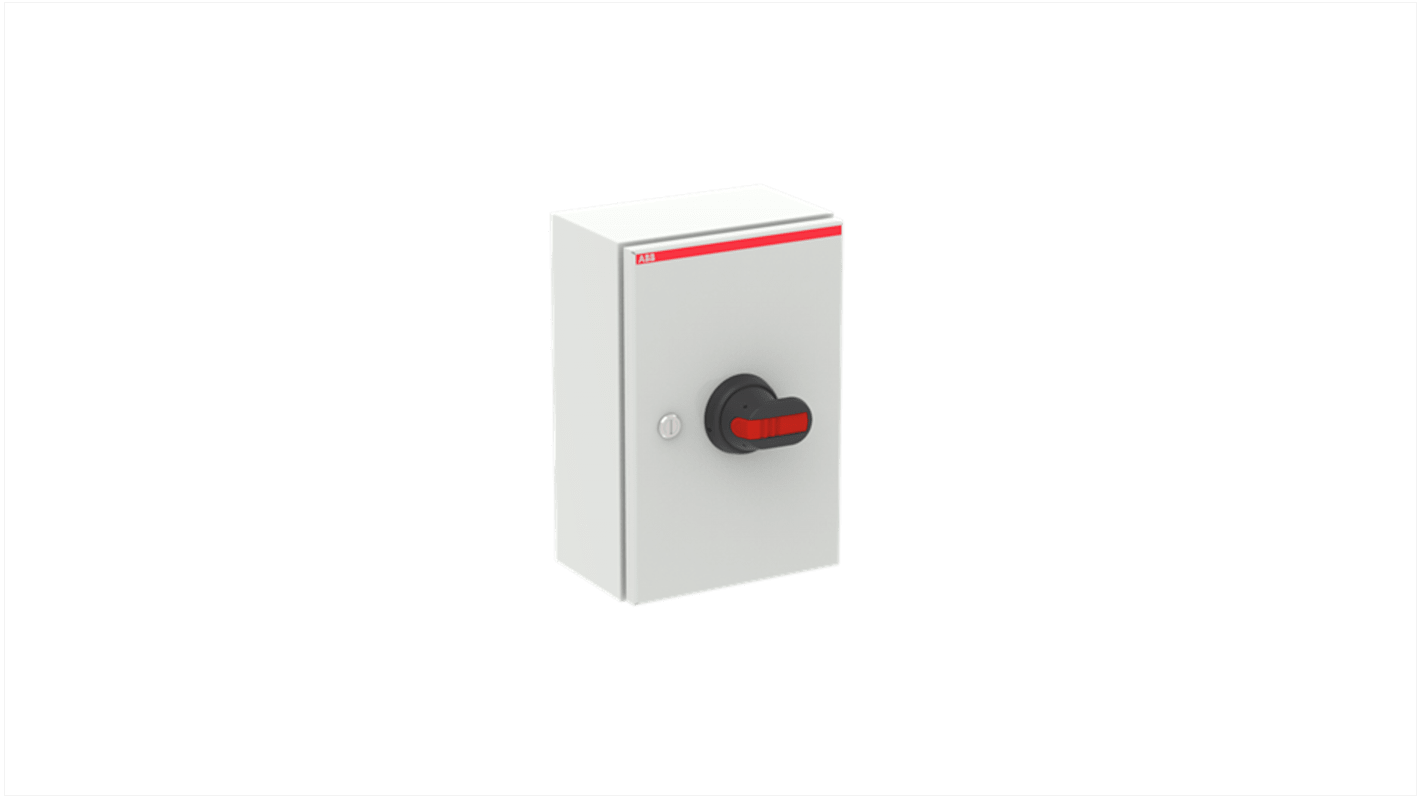

The ABB enclosed switch disconnector is using a galvanised steel enclosure, black pistol handle, interlocked cover and defeat able interlocking with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallel cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is pad lockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
IP65 protection
The handle is pad lockable for 3 padlocks
