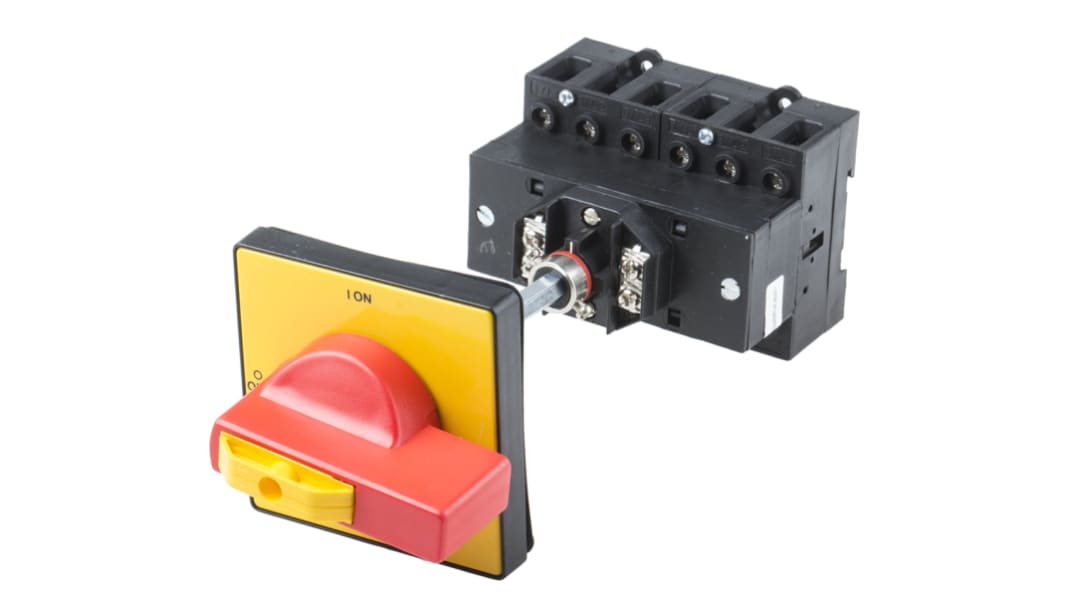

RS PRO 6P Pole Isolator Switch - 63A Maximum Current, 30kW Power Rating, IP65

This Non-fused Isolator Switch from our high-quality own brand RS PRO is designed with strong and durable material that is suitable for a multitude environments. This three-pole version is perfectly suited for manual motor control applications. Super easy to connect and wire as it comes to you undrilled, which enables variable cable entry positions.

•  Compact and robust, ideal for hard-wearing industrial environments
•  High-performance level
•  Aesthetically pleasing yellow plate
•  Suitable for use in applications where there is a need to disconnect electrical equipment from the circuit
•  Disconnect switch can also be used as safety switch
•  Performs local isolation            
•  Manual override and safety switch function( Not applicable to versions under 160A)
•  The handle is interlocked ensuring removal only if the switch is in “off” position
•  The handle is padlockable in the “off” position
•  The shaft is hexagonal for rigidity, 8mm across the flats and is supplied at 282mm length
•  Maximum panel thickness is 3mm
•  All switch ratings at AC22
•  2 rear hole mounting (35mm DIN rail mount)
•  Depth behind panel is 355mm

Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary to disconnect or isolate a circuit.

This type of isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

CB, CE, SEMKO, UL508
Rubber Gasket 773-7995
