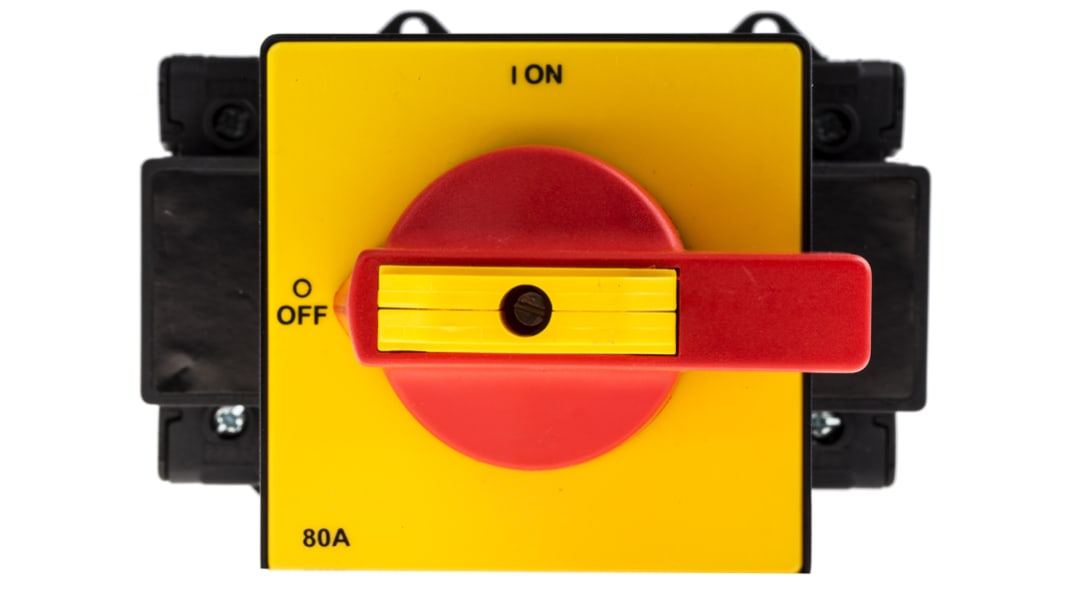

RS PRO 6P Pole Isolator Switch - 80A Maximum Current, 55kW Power Rating, IP65
- RS Stock No.:
- 773-7982
- Brand:
- RS PRO
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 773-7982
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Poles | 6P | |
Maximum Current | 80A | |
IP Rating | IP65 | |
Power Rating | 55kW | |
Voltage Rating | 690V ac | |
Electrical Phase | 1, 3 | |
Accepts Padlocks | Yes | |
Handle Colour | Red | |
Normal State Configuration | 6NO | |
Switch Rating | 30kA | |
Length | 85mm | |
Width | 139mm | |
Depth | 56mm | |
Maximum Operating Temperature | +40°C | |
Terminal Type | Screw | |
Minimum Operating Temperature | -25°C | |
Throw Configuration | Single | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Poles 6P | ||
Maximum Current 80A | ||
IP Rating IP65 | ||
Power Rating 55kW | ||
Voltage Rating 690V ac | ||
Electrical Phase 1, 3 | ||
Accepts Padlocks Yes | ||
Handle Colour Red | ||
Normal State Configuration 6NO | ||
Switch Rating 30kA | ||
Length 85mm | ||
Width 139mm | ||
Depth 56mm | ||
Maximum Operating Temperature +40°C | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Throw Configuration Single | ||
