ABB 4-Pole Switch Disconnector -, IP65, 25A, 9 kW
- RS Stock No.:
- 235-1801
- Mfr. Part No.:
- 1SCA022562R2660 OTL25B4M
- Brand:
- ABB
Subtotal (1 unit)*
£252.88
(exc. VAT)
£303.46
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £252.88 |
*price indicative
- RS Stock No.:
- 235-1801
- Mfr. Part No.:
- 1SCA022562R2660 OTL25B4M
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 4 | |
| Product Type | Switch Disconnector | |
| IP Rating | IP65 | |
| Handle Colour | Black | |
| Switching Current | 25A | |
| Auxiliary Contacts Available | Yes | |
| Terminal Type | Screw Clamp | |
| Series | OTL | |
| Minimum Operating Temperature | 0°C | |
| Switching Power | 9kW | |
| Length | 100mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | IEC 60947-1-3 | |
| Depth | 100mm | |
| Width | 150mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 4 | ||
Product Type Switch Disconnector | ||
IP Rating IP65 | ||
Handle Colour Black | ||
Switching Current 25A | ||
Auxiliary Contacts Available Yes | ||
Terminal Type Screw Clamp | ||
Series OTL | ||
Minimum Operating Temperature 0°C | ||
Switching Power 9kW | ||
Length 100mm | ||
Hazardous Area Certification No | ||
Standards/Approvals IEC 60947-1-3 | ||
Depth 100mm | ||
Width 150mm | ||

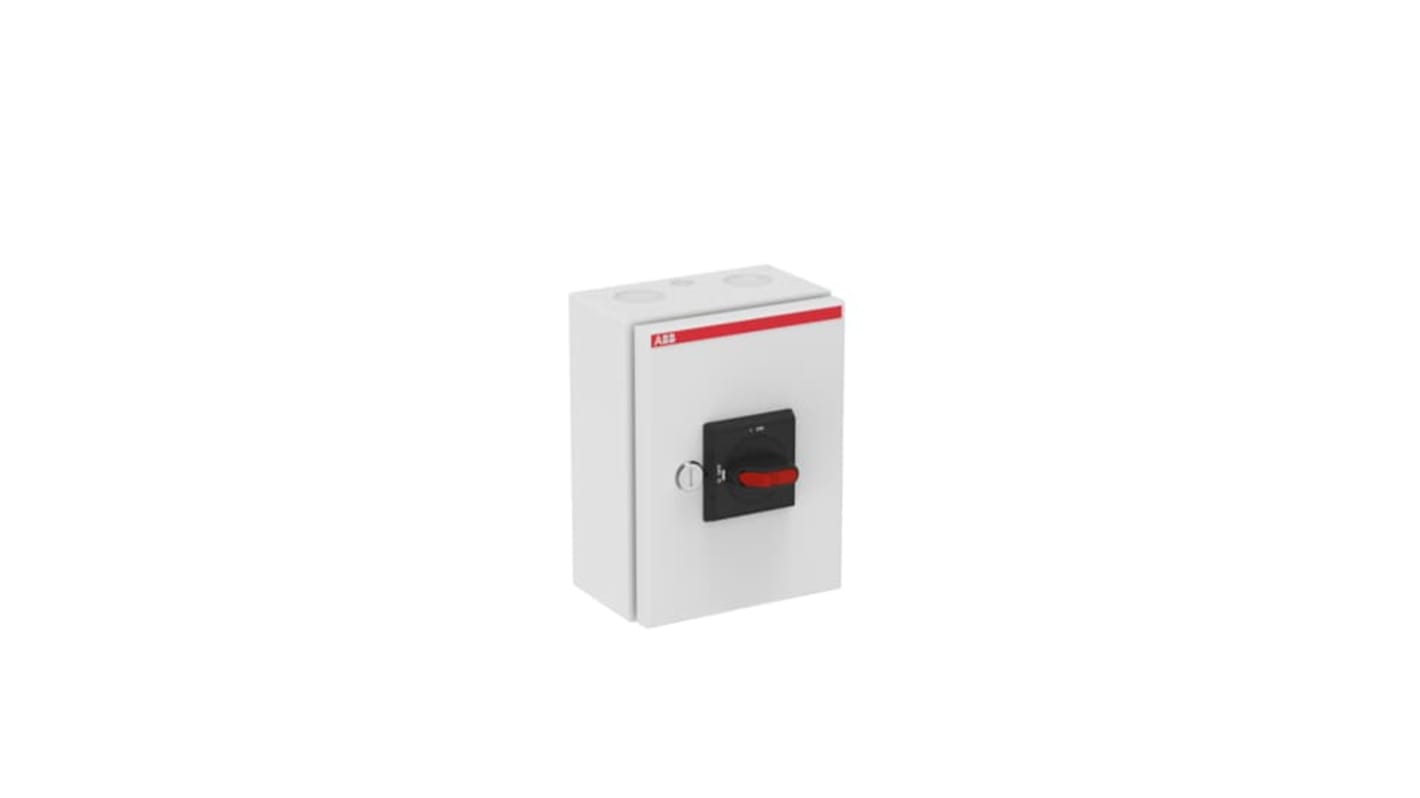

The ABB enclosure of the OTL series is made of rigid alu-zinc coated steel with polyester powder coating. The enclosure has a hinged door, with door lock. The cover is interlocked, and can not be opened when switch is on. The interlock function can be defeated for thermographing. Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water exposure and Immersion in accordance with UL746C. The cable entries are of knock out types. Neutral and PE terminal included.
Rated operational voltage 750V
Number of poles 4
Maximum mounted auxiliary contacts 2NO/2NC
